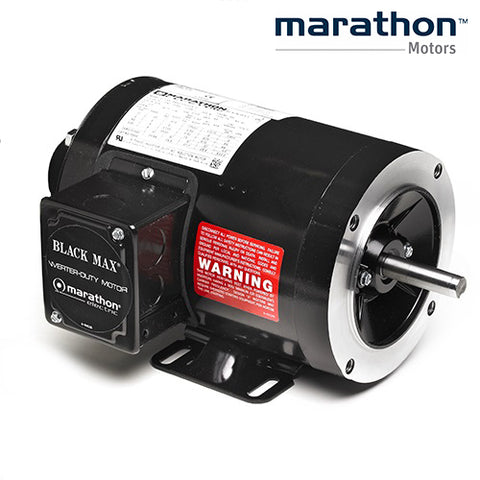

Y555, Marathon, 056H17T5311, 1/2 Hp, 1725 Rpm, 575V, 56CZ, TENV, BLACKMAX

MARATHON

$575.00

Y555, Marathon, 056H17T5311

Model :	056H17T5311	Catalog No :	Y555
Part Description :	1/2,1725,TENV,56CZ,3/60/575	Category :	1000:1 Speed Ratio
Stock :	Yes

Nameplate Specifications

Output HP :	0.50 Hp	Output KW :	0.37 kW
Frequency :	60 Hz	Voltage :	575 V
Current :	0.65 A	Speed :	1725 rpm
Service Factor :	1	Phase :	3
Efficiency :	80 %	Duty :	Continuous
Insulation Class :	F	Design Code :	INV
KVA Code :	L	Frame :	56CZ
Enclosure :	Totally Enclosed Non Ventilated	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203
