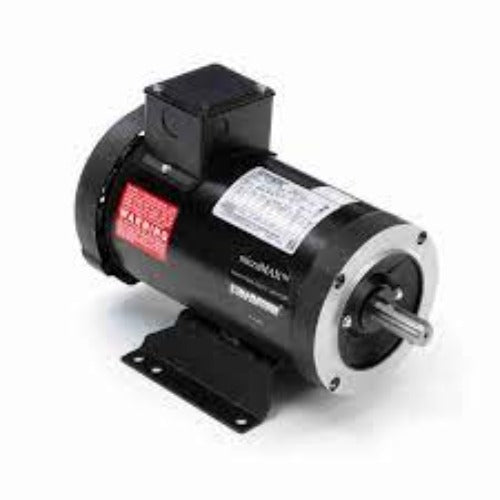

Y370, Marathon, 3 Hp, 1750 Rpm, 208-220/440V, 182TCZ, 182THFR5329, TEFC

MARATHON

$1,592.77

Y370, Marathon , Crop Dryer Motor, PART 182THFR5329, Y370

*** BUILT-UP MARATHON *****

3 Hp	Output KW:	2.2 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	8.4/4.2 A	Speed:	1735 rpm
Service Factor:	1	Phase:	3
Efficiency:	85.5 %	Power Factor:	79
Duty:	Continuous	Insulation Class:	H
Design Code:	INV	KVA Code:	L
Frame:	182TCZ	Enclosure:	Totally Enclosed Fan Cooled
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6205	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Duty	Starting Method:	Inverter Only
Poles:	4	Rotation:	Reversible
Resistance Main:	5.32 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 145T	Overall Length:	14.87 in
Frame Length:	9.56 in	Shaft Diameter:	0.875 in
Shaft Extension:	2.12 in	Assembly/Box Mounting:	F3
