Xactone | SKU :
EMN-018890
X63748, Xactone, 1/6Hp, 1550 Rpm, 115V, Frame: 42, 63748-0, PennBarry,
Prix habituel
$327.42
Prix unitaire
/
Indisponible
X63748, Xactone, 1/6Hp, 1550 Rpm, 115V, Frame: 42, 63748-0, PennBarry, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
X63748, Xactone, 1/6Hp, 1550 Rpm, 115V, Frame: 42, 63748-0, PennBarry,
Prix habituel
$327.42
Prix unitaire
/
Indisponible
Description
Description

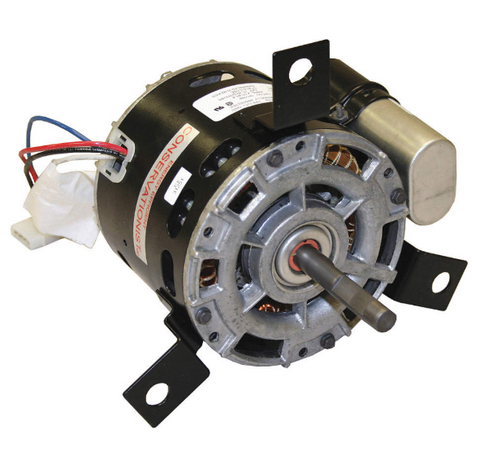

X63748, Xactone, replaces PennBarry 63748-0, Century OPV748,

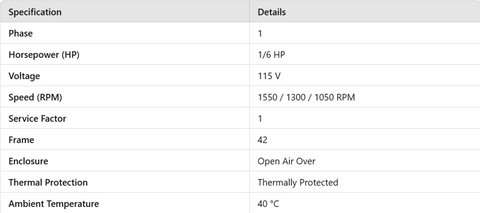

| Specification | Details |
|---|---|
| Phase | 1 |
| Horsepower (HP) | 1/6 HP |
| Voltage | 115 V |
| Speed (RPM) | 1550 / 1300 / 1050 RPM |
| Service Factor | 1 |
| Frame | 42 |
| Enclosure | Open Air Over |
| Thermal Protection | Thermally Protected |
| Ambient Temperature | 40 °C |

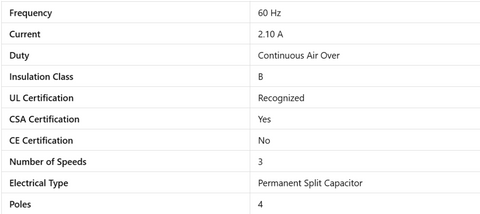

| Frequency | 60 Hz |
| Current | 2.10 A |
| Duty | Continuous Air Over |
| Insulation Class | B |
| UL Certification | Recognized |
| CSA Certification | Yes |
| CE Certification | No |
| Number of Speeds | 3 |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |
| Rotation | Counterclockwise |
| Mounting | Lug Mount |
| Motor Orientation | Horizontal |
| Drive End Bearing | Ball |
| Opposite Drive End Bearing | Ball |
| Frame Material | Rolled Steel |
