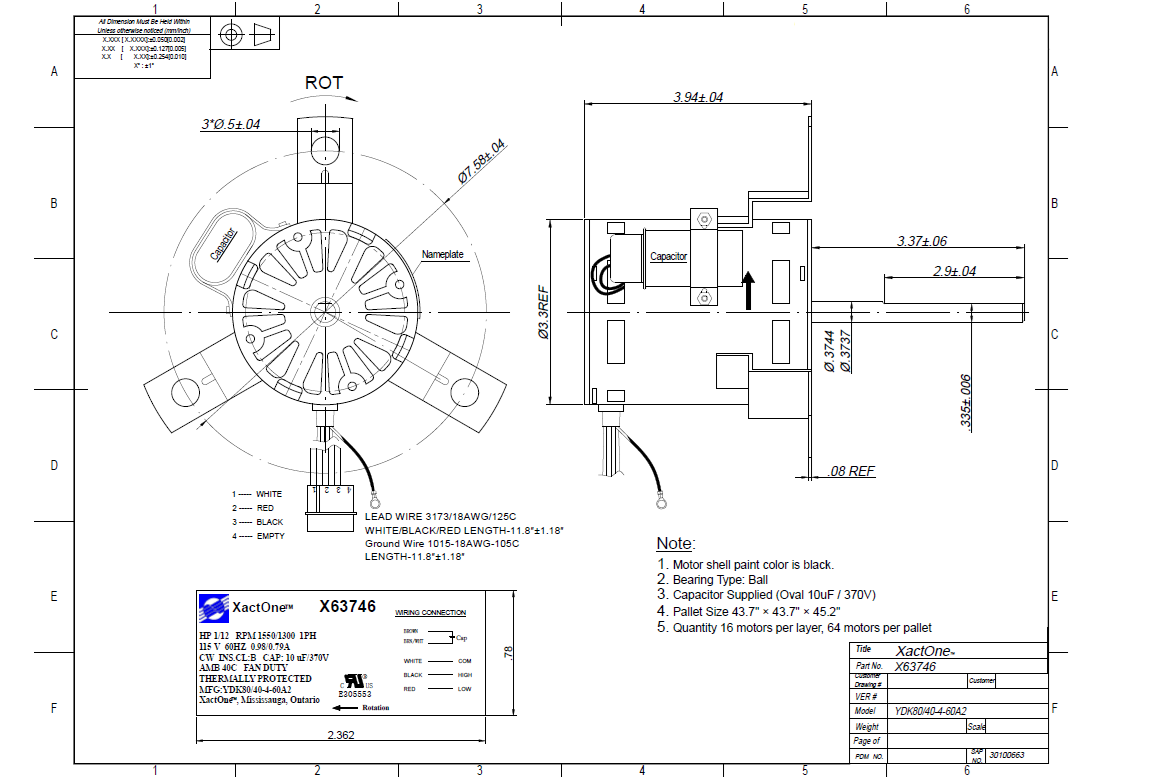

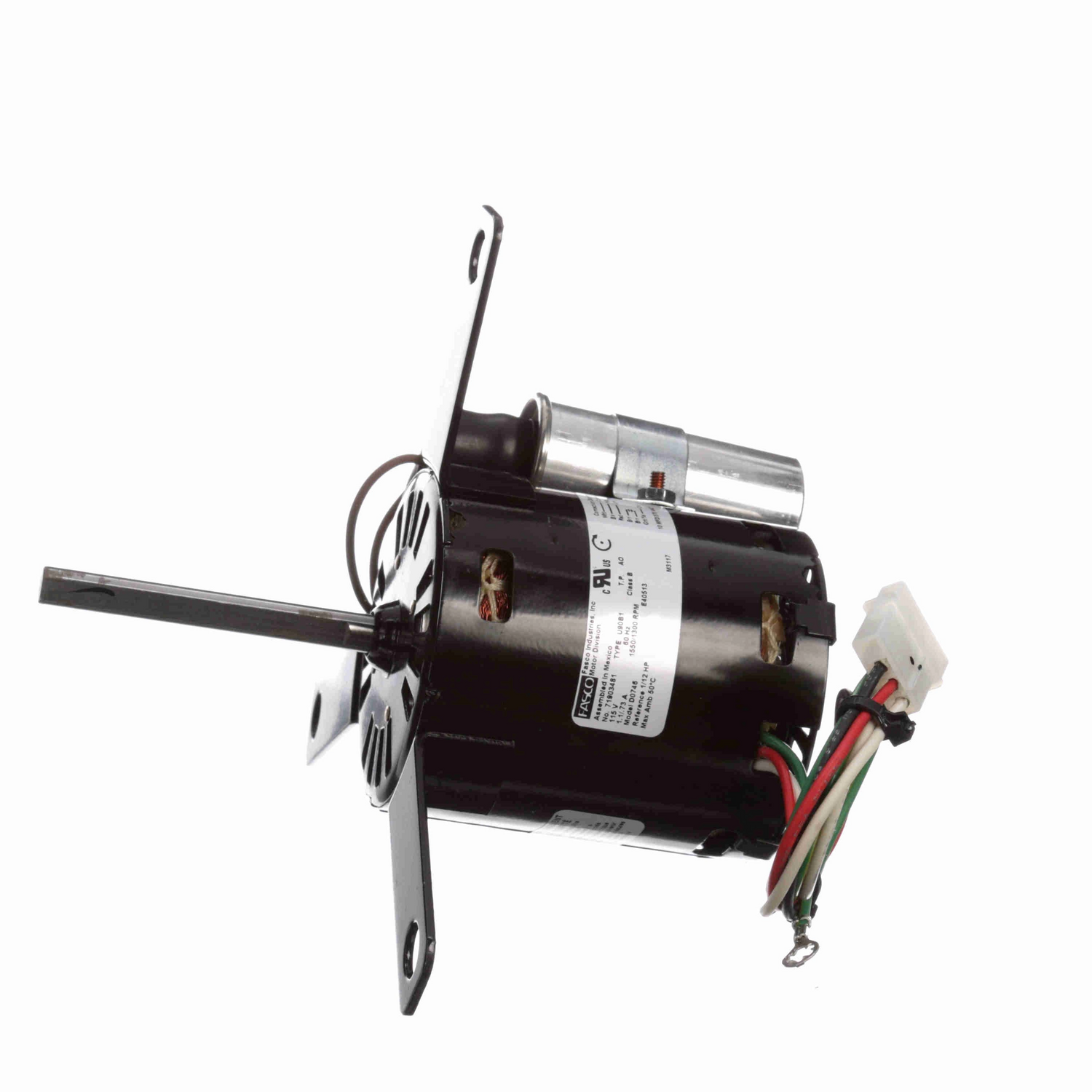

X63746, 1/12Hp, 1500 Rpm, 115 Volts, 63746-0, D0746, OPV746,

X63746, 1/12Hp, 1500 Rpm, 115 Volts, 63746-0, D0746, OPV746,

• Type: Direct OEM Replacement

• Application: Direct Drive – Fan Coil, Condenser, Exhaust Fan, Evaporator

• Horsepower: 1/12 HP

• Voltage: 115 V

• Phase: 1 Phase

• Speed: 1500 / 1300 RPM

• Number of Speeds: 2

• Current: 0.98 / 0.79 A

• Rotation: CWSE

• Frame: 3.3

• Bearings: Ball Bearing

• Enclosure: Open

• Mounting: Lug

• Shaft: 3/8" x 3-3/8"

• Capacitor: 10 MFD 370 VAC (Supplied)

• Leads: 12" Leads with AMP Connector

• Certification: CSA Approved

Cross reference: 63746-0, JE2H057N, JE2H057, JE2H076, JE2H076N, 71902900, 7190-2900, 7190-3481, OPV746,  OPV746,D0746, JE2H057 JE2H057-T, FX10SR, 71903057, 7190 3057, Fasco 7190-3481, 7190 3481
