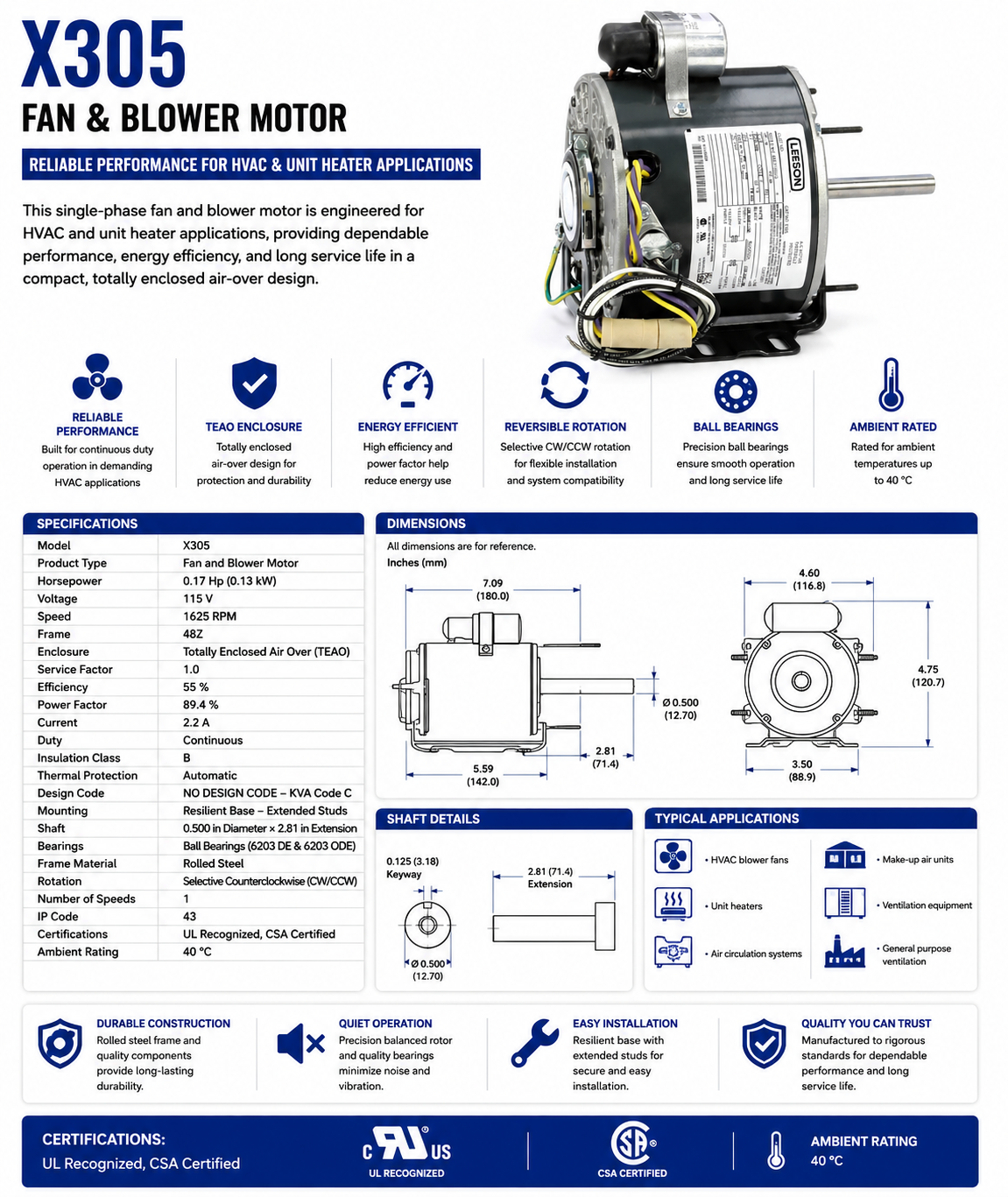

X305, 1/6Hp, 1625 RPM, 115 V, 1 Ph, TEAO, Frame 48Z, 048A17T2001

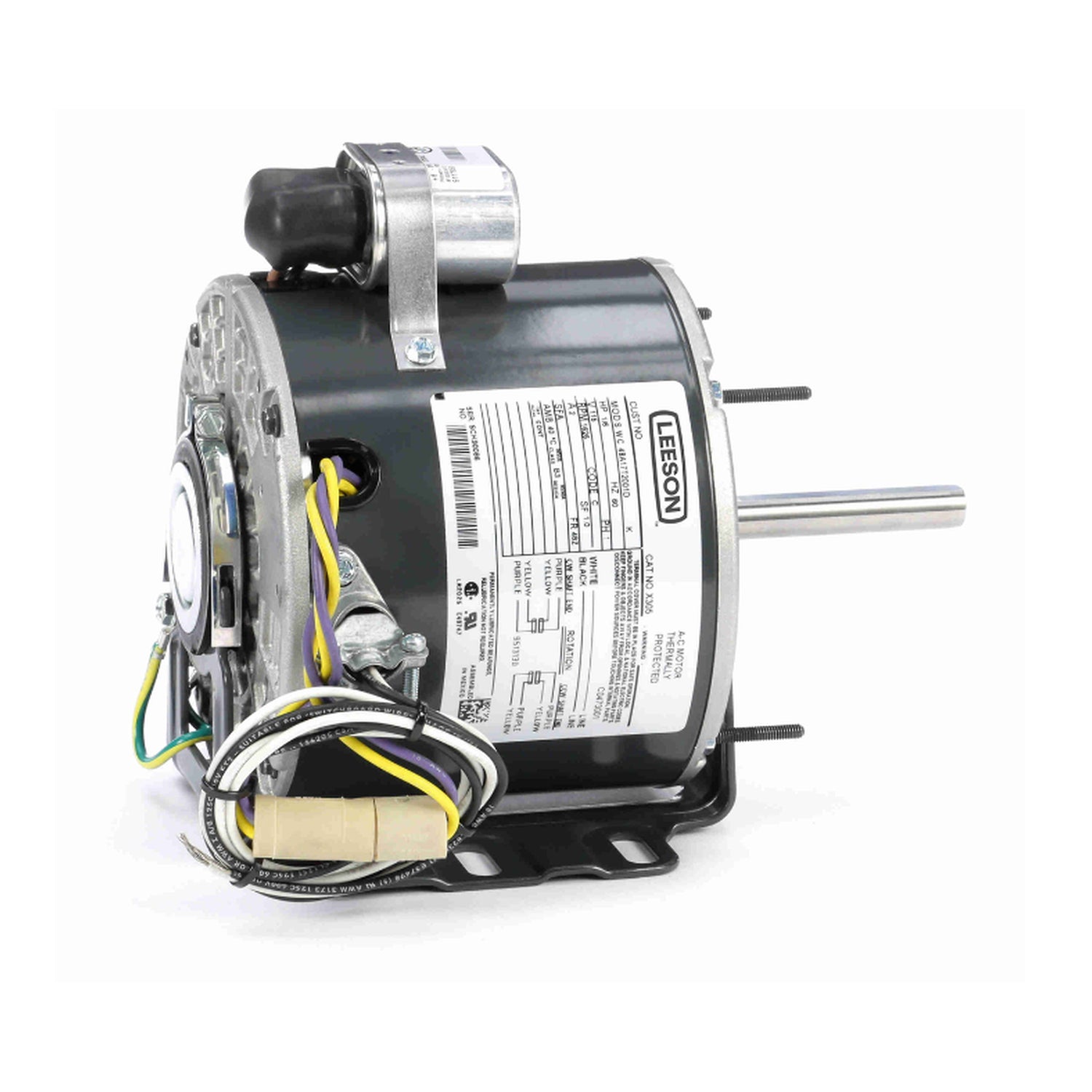

This single-phase fan and blower motor is designed for HVAC and unit heater applications, delivering 0.17 Hp with a compact 48Z frame and totally enclosed air-over construction for reliable continuous operation.

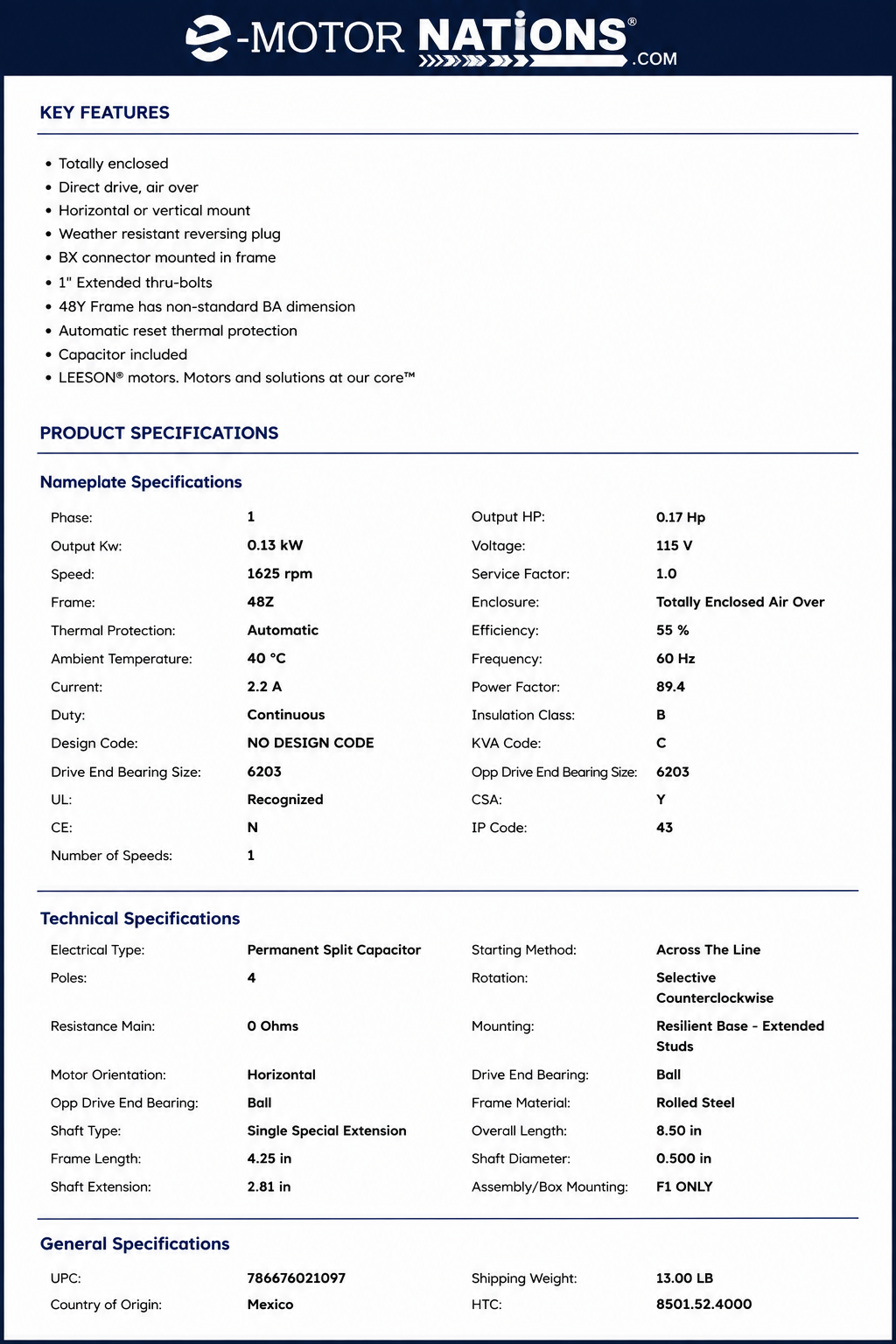

KEY FEATURES

• Model: X305

• Product Type: Fan and Blower Motor

• Horsepower: 0.17 Hp (0.13 kW) / 1/6 HP

• Voltage: 115 V

• Speed: 1625 RPM

• Frame: 48Z

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1.0

• Efficiency: 55 %

• Power Factor: 89.4 %

• Current: 2.2 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Design Code: NO DESIGN CODE – KVA Code C

• Mounting: Resilient Base – Extended Studs

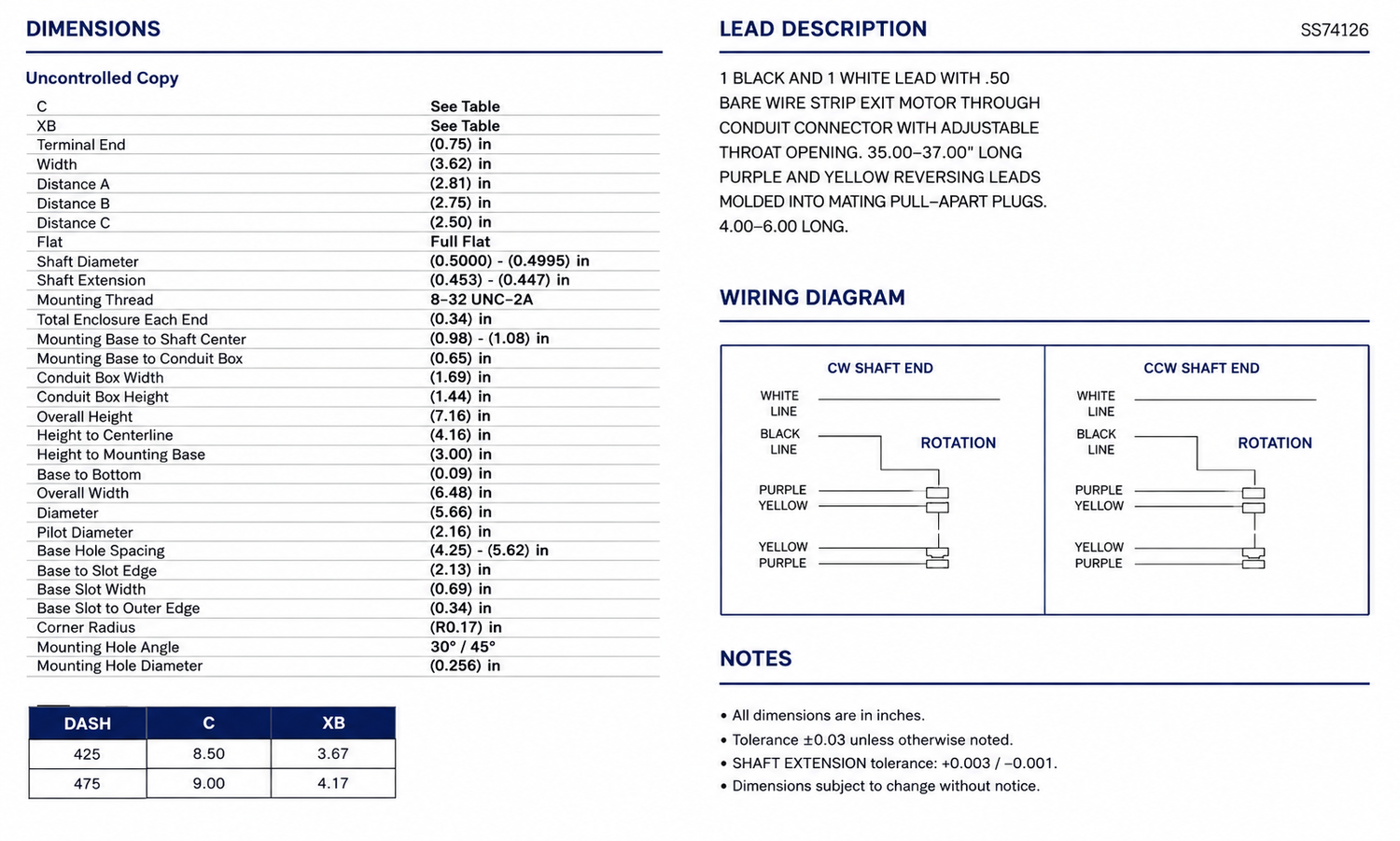

• Shaft: 0.500 in diameter × 2.81 in extension

• Bearings: Ball Bearings (6203 DE & 6203 ODE)

• Frame Material: Rolled Steel

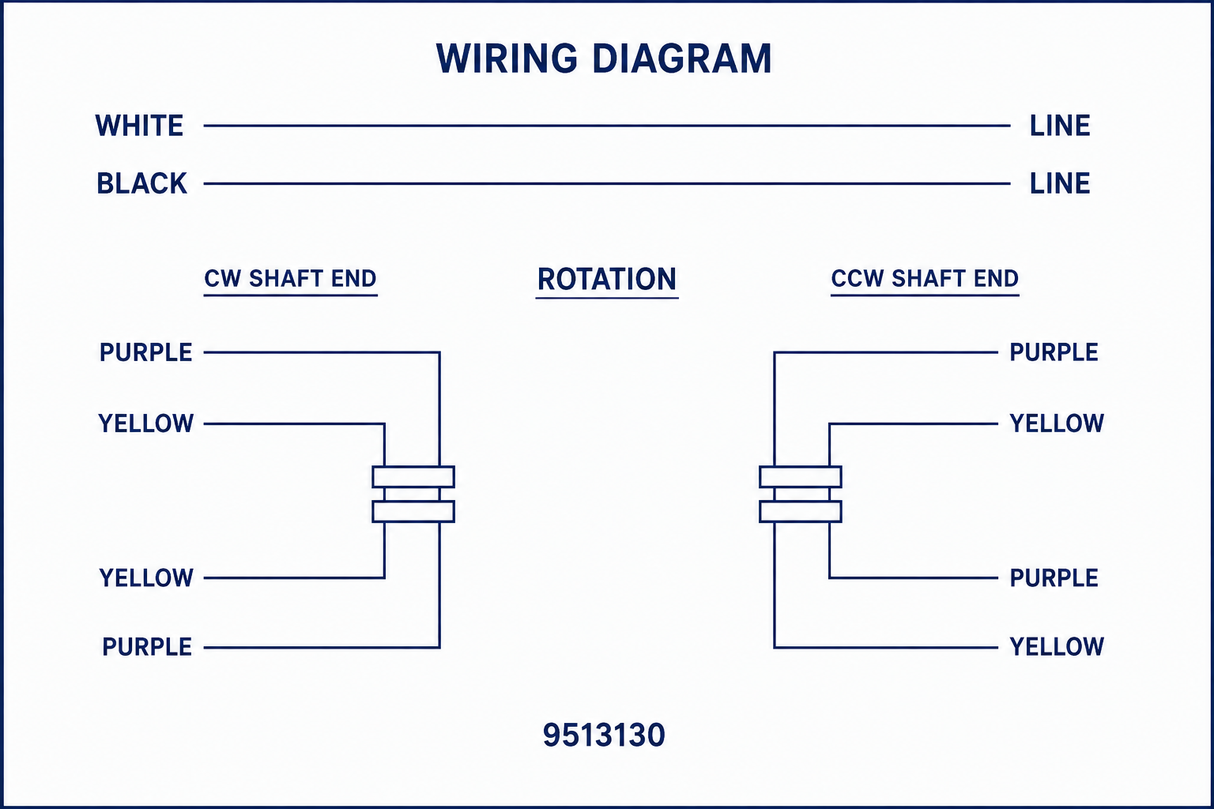

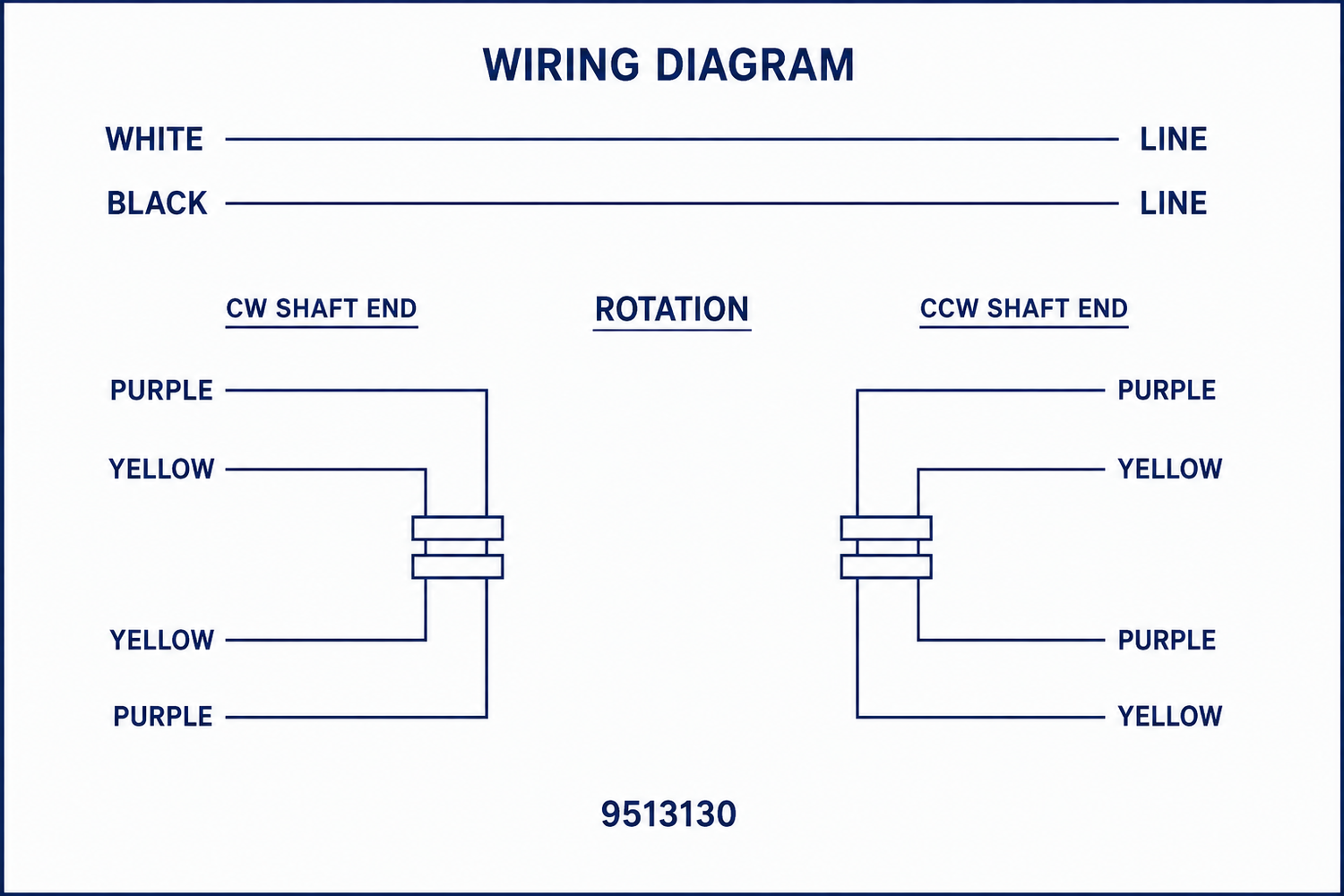

• Rotation: Selective Counterclockwise (CW/CCW)

• Number of Speeds: 1

• IP Code: 43

• Certifications: UL Recognized, CSA Certified

• Ambient Rating: 40 °C
