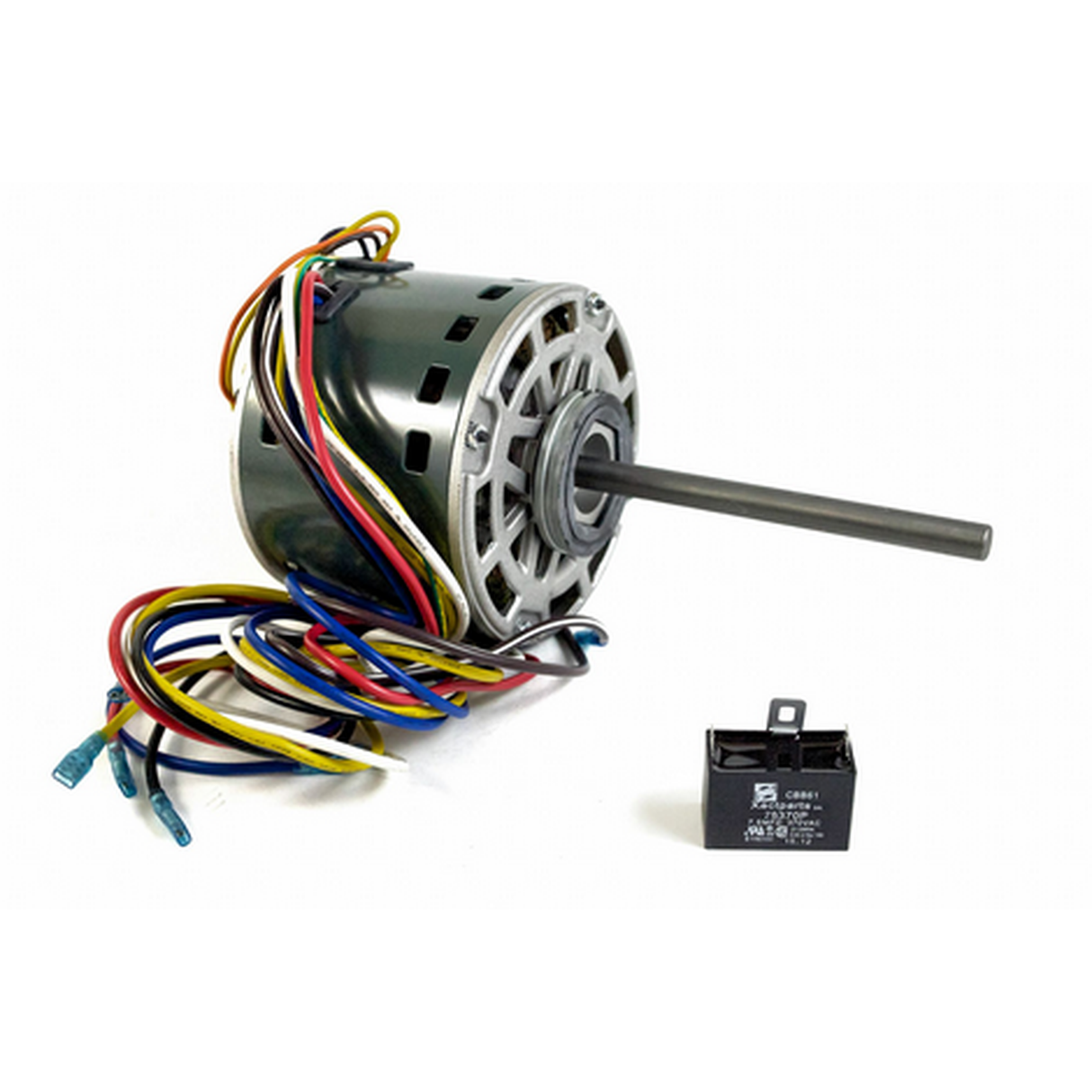

X1314D, OEM Replacement Motors, 1/3-1/4-1/6-1/7Hp, 1075 RPM, 115V, 1Ph, Frame 48, OPEN, Reversible

X1314D, OEM Replacement Motors, 1/3-1/4-1/6-1/7Hp, 1075 RPM, 115V, 1Ph, Frame 48, OPEN, Reversible

Replace : 1864 , EM3585

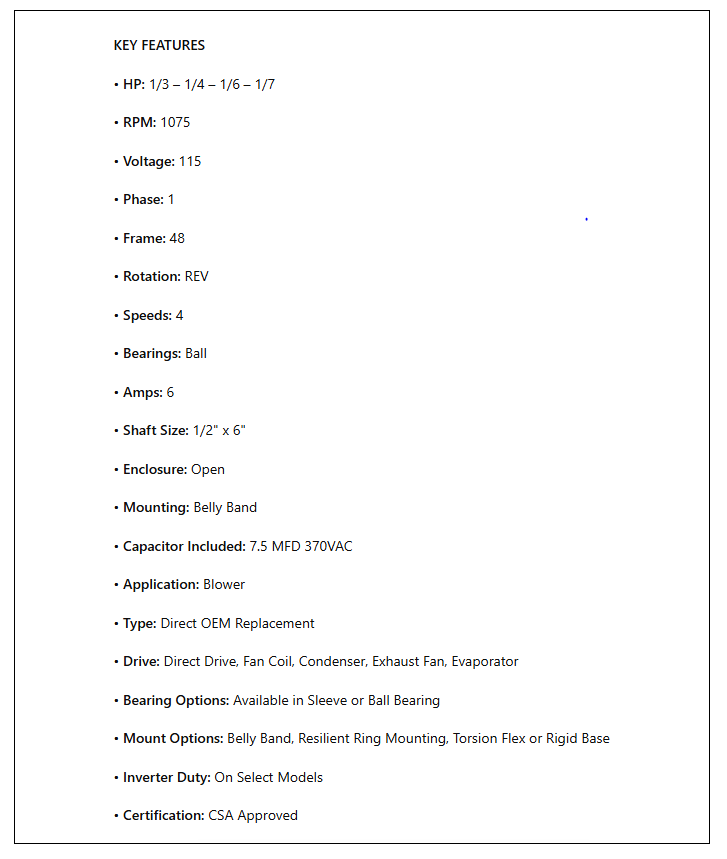

KEY FEATURES

• HP: 1/3 – 1/4 – 1/6 – 1/7

• RPM: 1075

• Voltage: 115

• Phase: 1

• Frame: 48

• Rotation: REV

• Speeds: 4

• Bearings: Ball

• Amps: 6

• Shaft Size: 1/2" x 6"

• Enclosure: Open

• Mounting: Belly Band

• Capacitor Included: 7.5 MFD 370VAC

• Application: Blower

• Type: Direct OEM Replacement

• Drive: Direct Drive, Fan Coil, Condenser, Exhaust Fan, Evaporator

• Bearing Options: Available in Sleeve or Ball Bearing

• Mount Options: Belly Band, Resilient Ring Mounting, Torsion Flex or Rigid Base

• Inverter Duty: On Select Models

• Certification: CSA Approved

CROSS REFERENCE

• 1468-236P

• 1009054, 1008415

• R43585, R43583

• HC41SE117, HC41SE121M, P257 8583, P257 8585

• P-8-7505, 32663

• 1863, 1864, 11864

• 3583, 3585

• X003

• DL1026, DL1036

• YDK140/35-6-245E
