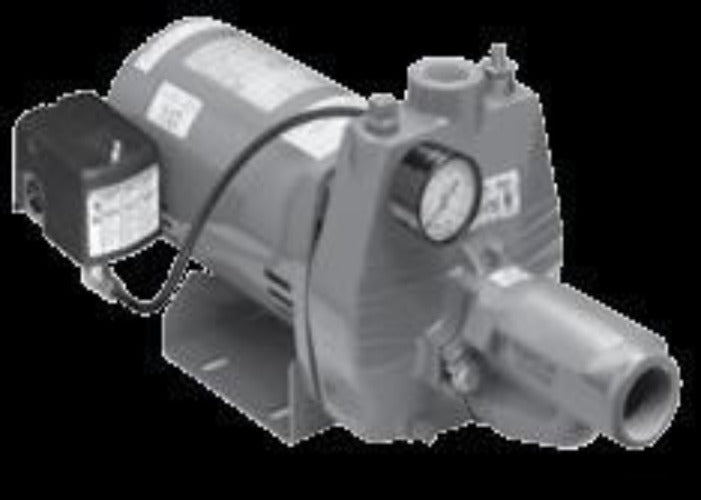

WJC05CI-C, Convertible Jet Pumps, 1/2 HP, 30-50 PSI (opt. 40-60 man), 115/230V, 1-1/4" SUCTION, 1"NPT DISCHARGE, WATER HORSE item 91370005, FRANKLIN MOTOR

WATER HORSE

  • $869.10


APPLICATIONS

  • For supplying fresh water to rural homes, farms and cabins
  • For installations where the vertical distance from the pump to the pumping water level does not exceed 25 feet (7.6 m)

FEATURES

  • Cast iron casing and seal plate for durability and long life
  • A.O. Smith higher than standard NEMA service factor dual compartment motor
  • Dual voltage 115/230v •
  • Square D pressure switch preset at 30-50 PSI, Can be adjusted to 40-60 PSI
  • 1-1/4" (31.7 mm) suction, 1" NPT (25.4 mm) discharge and brass flow control valve
  • Pressure gauge included with all models
  • Stainless steel motor shaft and dual ball bearings
  • Precision-engineered thermoplastic impeller, diffuser, nozzle and venturi
  • Clean-out plug to easily unclog nozzle
  Discharge Pressure - PSI Shut-off Pressure PSI
HP Configuration Total Suction Lift Ft. 20 25 30 35 40 45 50 55 60
Gallons per minute
1/2 Shallow 5 11,1 11,0 10,9 10,8 10,7 9,2 7,4 5,9 4,5 76,2
15 8,1 8,0 7,9 7,8 7,7 7,3 5,9 4,4 3,1 71,7
25 4,8 4,8 4,7 4,7 4,6 4,5 4,4 3,2 1,9 67,5
Deep 20 - 10,7 9,2 7,8 6,5 5,4 4,5 3,6 2,9 85,0
50 - 6,8 5,8 4,8 4,0 3,2 2,4 1,8 1,3 72,0
80 - 4,1 3,4 2,8 2,2 1,6 1,0 0,4 - 59,0
