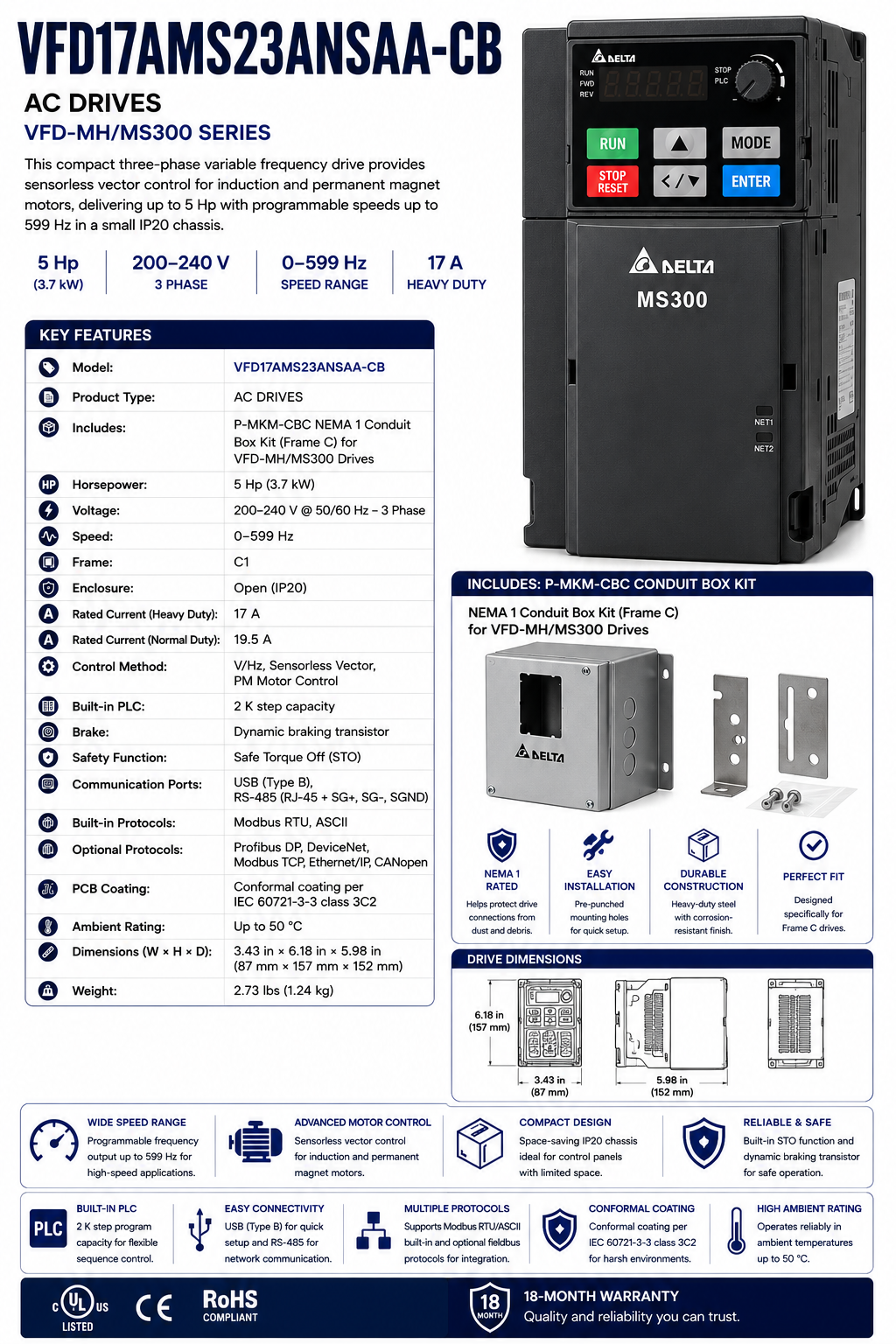

VFD17AMS23ANSAA-CB, 5Hp, 3‑Phase 230 V, 0‑599 Hz, IP20, Frame C1

This compact three‑phase variable frequency drive provides sensorless vector control for induction and permanent magnet motors, delivering up to 5 Hp with programmable speeds up to 599 Hz in a small IP20 chassis.

KEY FEATURES

• Model: VFD17AMS23ANSAA-BC

• Product Type: AC DRIVES

• Includes: P-MKM-CBC NEMA 1 Conduit Box Kit (Frame C) for VFD-MH/MS300 Drives

• Horsepower: 5 Hp (3.7 kW)

• Voltage: 200‑240 V @ 50/60 Hz – 3 Phase

• Speed: 0‑599 Hz

• Frame: C1

• Enclosure: Open (IP20)

• Rated Current (Heavy Duty): 17 A

• Rated Current (Normal Duty): 19.5 A

• Control Method: V/Hz, Sensorless Vector, PM Motor Control

• Built‑in PLC: 2 K step capacity

• Brake: Dynamic braking transistor

• Safety Function: Safe Torque Off (STO)

• Communication Ports: USB (Type B), RS‑485 (RJ‑45 + SG+, SG‑, SGND)

• Built‑in Protocols: Modbus RTU, ASCII

• Optional Protocols: Profibus DP, DeviceNet, Modbus TCP, Ethernet/IP, CANopen

• PCB Coating: Conformal coating per IEC 60721‑3‑3 class 3C2

• Ambient Rating: Up to 50 °C

• Dimensions (W × H × D): 3.43 in × 6.18 in × 5.98 in

• Weight: 2.73 lbs
