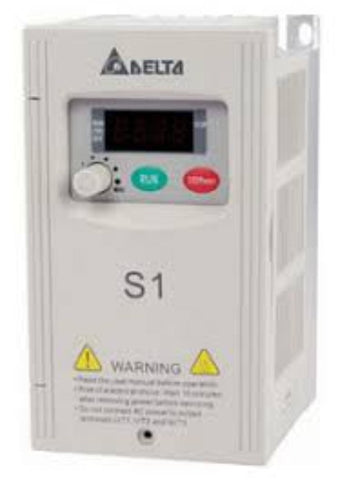

VFD007S21B, Delta, 1 HP, 208/230V, 1/3 PH, VARIABLE FRÉQUENCY DRIVE, DELTA
- 1 HP
- 240 VOLTS
- 3 PHASES
- INPUT AMPS 5.7
- OUTPUT AMPS 5.0
- NEMA 1
- BRAKING MODULE
- BRAKING RESISTORS BR080W200
- DIMENSION 118 x 185 x 145
- DELTA ELECTRONICS
Volt/Hertz, Sensorless vector & Closed loop vector control
All VFD-B drives are Constant Torque rated.
Programmable (0 ~ 2000Hz) for high speed applications.
The output current is adjustable up to 120% of the
drive’s nominal capacity.
All “240/1/60” models also accept three phase input.
Inputs: 11 digital (4 dedicated & 7 programmable) & 3 analog.
Outputs: 4 digital, 1 analog & 1 digital frequency output.
RS-485 communication port, standard protocol Modbus RTU & ASCII.
B series drives have built-in dynamic braking transistors up to 15HP.
Please refer to the “VFD Accessories” section for all available options.
