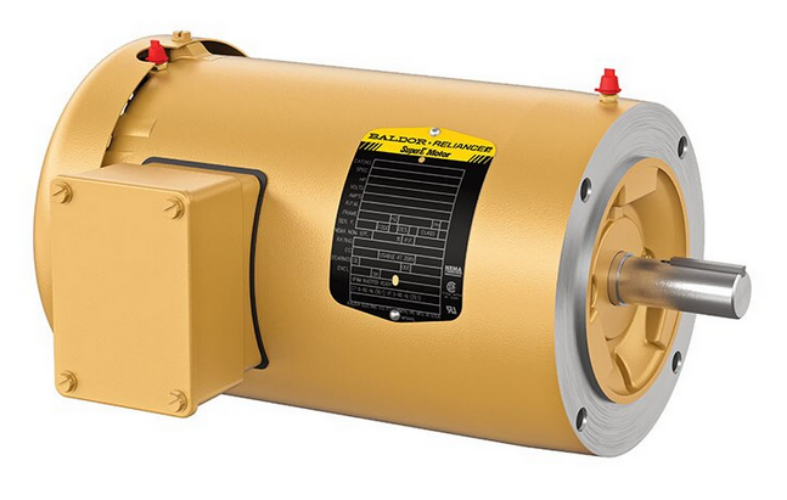

VEM3558T, 2Hp, 1760RPM, 208-230/460V, 3PH, 60HZ, 145TC,3528M,TEFC,F1

VEM3558T, 2Hp, 1760RPM, 208-230/460V, 3PH, 60HZ, 145TC,3528M,TEFC,F1

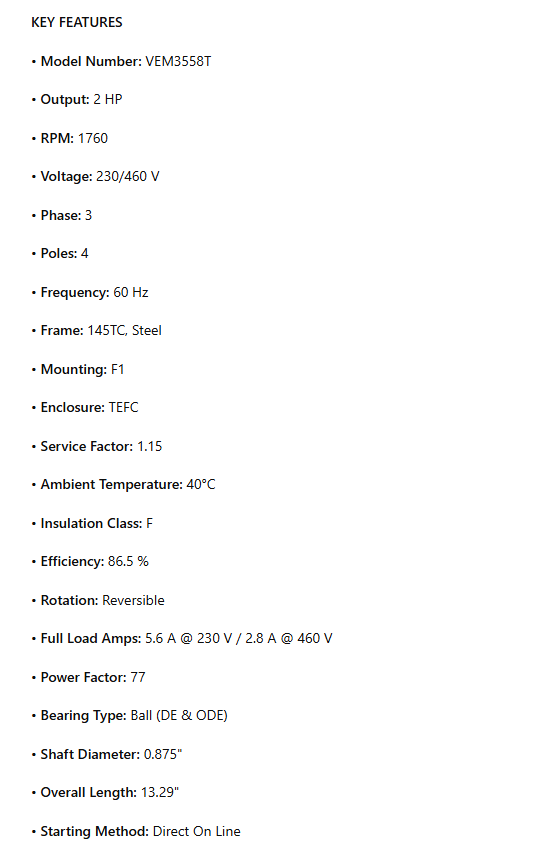

KEY FEATURES

• Model Number: VEM3558T

• Output: 2 HP

• RPM: 1760

• Voltage: 230/460 V

• Phase: 3

• Poles: 4

• Frequency: 60 Hz

• Frame: 145TC, Steel

• Mounting: F1

• Enclosure: TEFC

• Service Factor: 1.15

• Ambient Temperature: 40°C

• Insulation Class: F

• Efficiency: 86.5 %

• Rotation: Reversible

• Full Load Amps: 5.6 A @ 230 V / 2.8 A @ 460 V

• Power Factor: 77

• Bearing Type: Ball (DE & ODE)

• Shaft Diameter: 0.875"

• Overall Length: 13.29"

• Starting Method: Direct On Line
