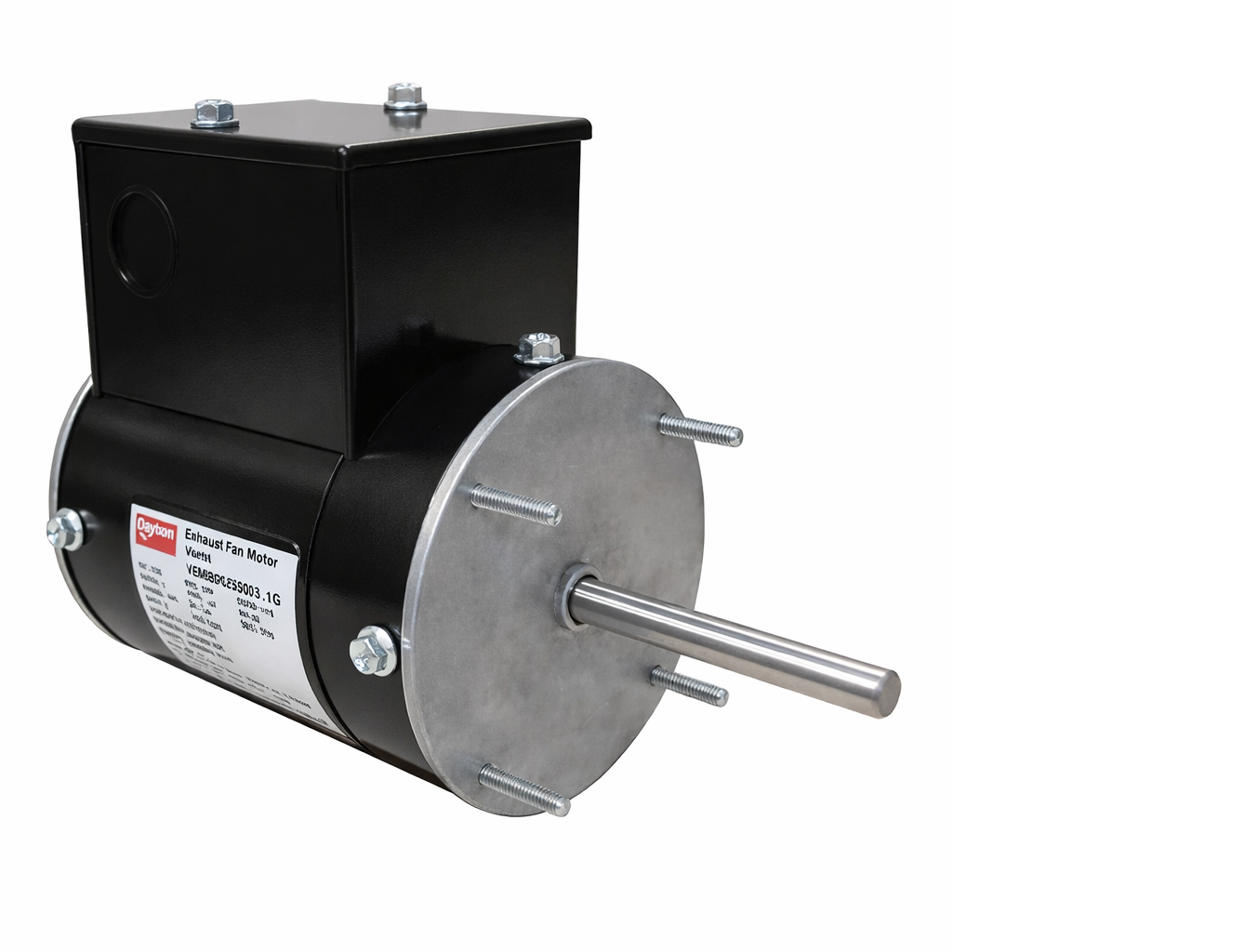

VED80U2901.1G, 1/30hp, 1650 Rpm, 115 Volts, 60 Hz, TEFC, Shaft Diameter 8 mm,
VED80U2901.1G, 1/30hp, 1650 Rpm, 115 Volts, 60 Hz, TEFC, Shaft Diameter 8 mm, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
VED80U2901.1G, 1/30hp, 1650 Rpm, 115 Volts, 60 Hz, TEFC, Shaft Diam...
Description
Description
VED80U2901.1G, 1/30hp, 1650 Rpm, 115 Volts, 60 Hz, TEFC,43XR29,

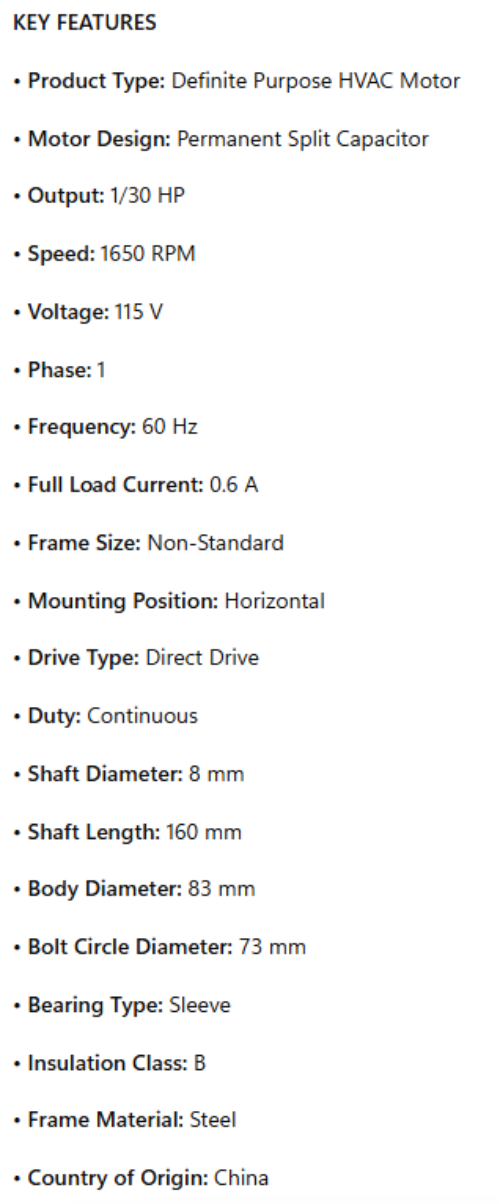

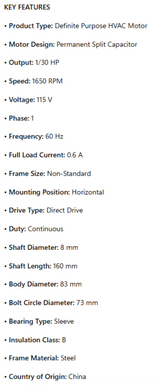

KEY FEATURES
• Product Type: Definite Purpose HVAC Motor
• Motor Design: Permanent Split Capacitor
• Output: 1/30 HP
• Speed: 1650 RPM
• Voltage: 115 V
• Phase: 1
• Frequency: 60 Hz
• Full Load Current: 0.6 A
• Frame Size: 56C
• Mounting Position: Horizontal
• Drive Type: Direct Drive
• Duty: Continuous
• Shaft Diameter: 8 mm
• Shaft Length: 160 mm
• Body Diameter: 83 mm
• Bolt Circle Diameter: 73 mm
• Bearing Type: Sleeve
• Insulation Class: B
• Frame Material: Steel
• Country of Origin: China
