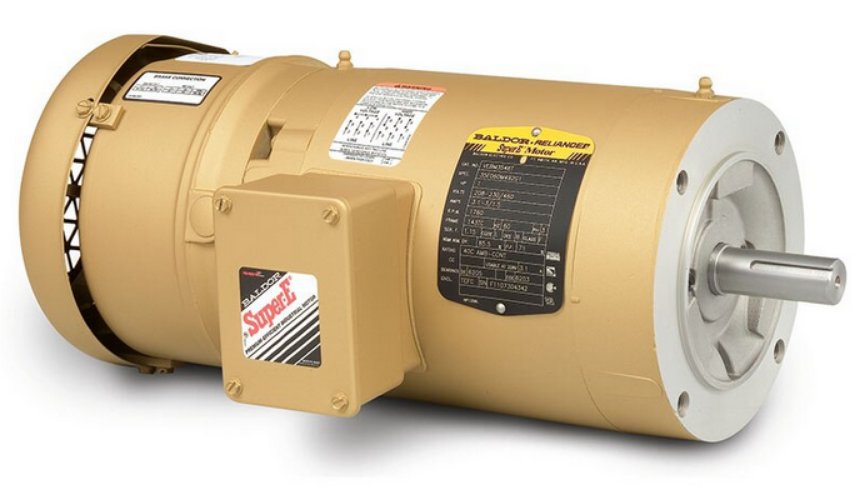

VEBM3611T, 3Hp, 208-230/460V, 1760RPM, 3PH, 60HZ, 182TC, 3632M, TEFC, F1

VEBM3611T, 3Hp, 208-230/460V, 1760RPM, 3PH, 60HZ, 182TC, 3632M, TEFC, F1

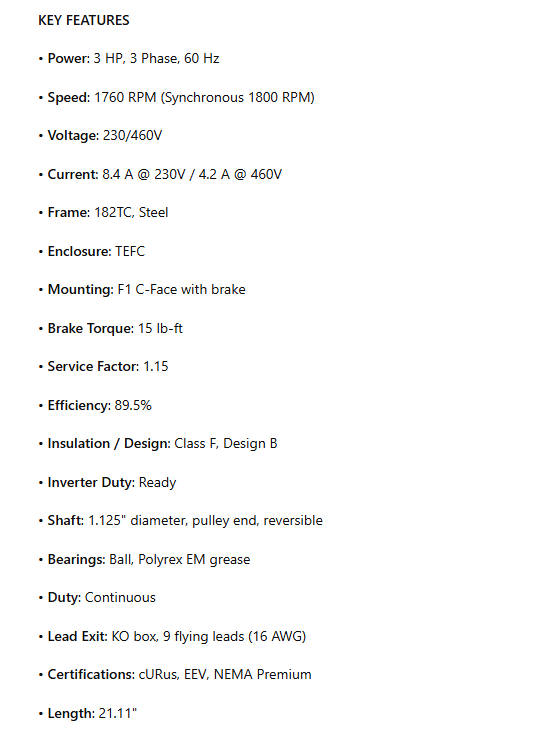

KEY FEATURES

• Power: 3 HP, 3 Phase, 60 Hz

• Speed: 1760 RPM (Synchronous 1800 RPM)

• Voltage: 230/460V

• Current: 8.4 A @ 230V / 4.2 A @ 460V

• Frame: 182TC, Steel

• Enclosure: TEFC

• Mounting: F1 C-Face with brake

• Brake Torque: 15 lb-ft

• Service Factor: 1.15

• Efficiency: 89.5%

• Insulation / Design: Class F, Design B

• Inverter Duty: Ready

• Shaft: 1.125" diameter, pulley end, reversible

• Bearings: Ball, Polyrex EM grease

• Duty: Continuous

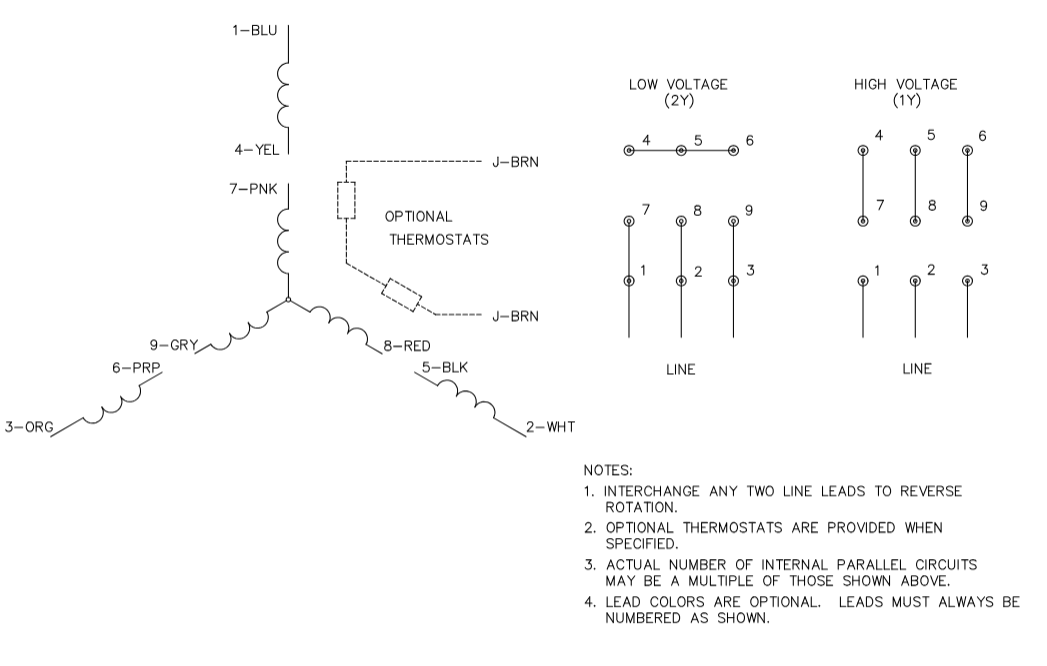

• Lead Exit: KO box, 9 flying leads (16 AWG)

• Certifications: cURus, EEV, NEMA Premium

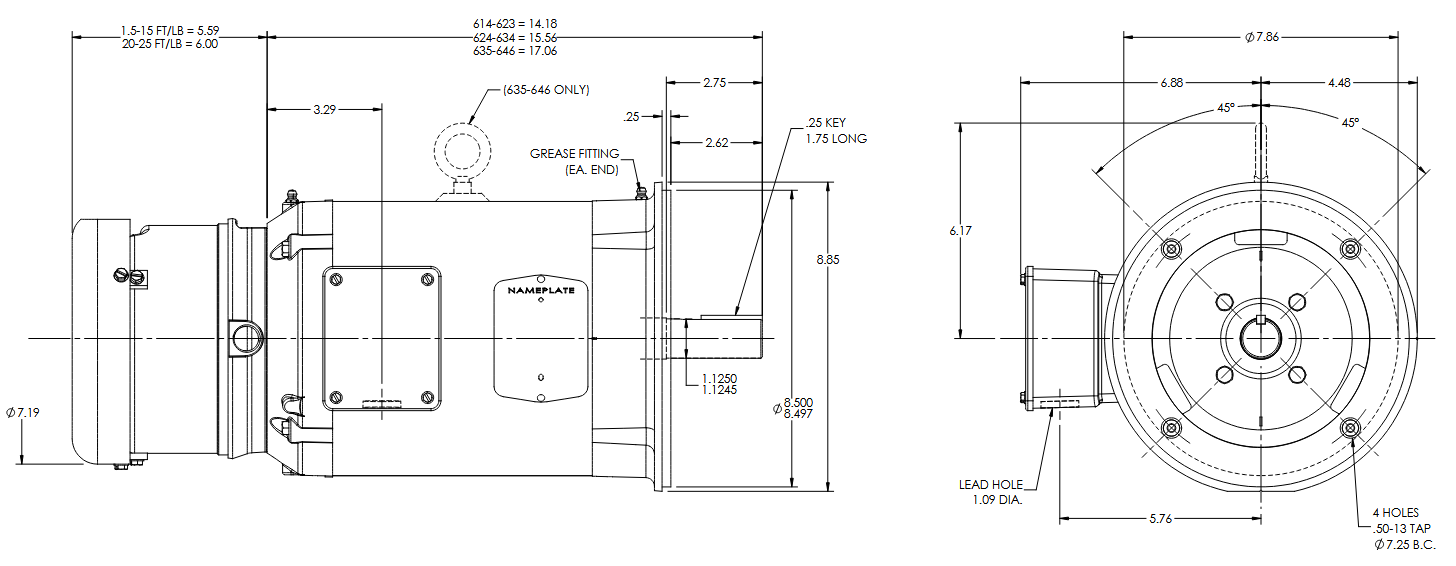

• Length: 21.11"
