UB600, 9 W, 1550 RPM, 230 V, 1 Ph, 60 Hz, TEAO, Unit Bearing

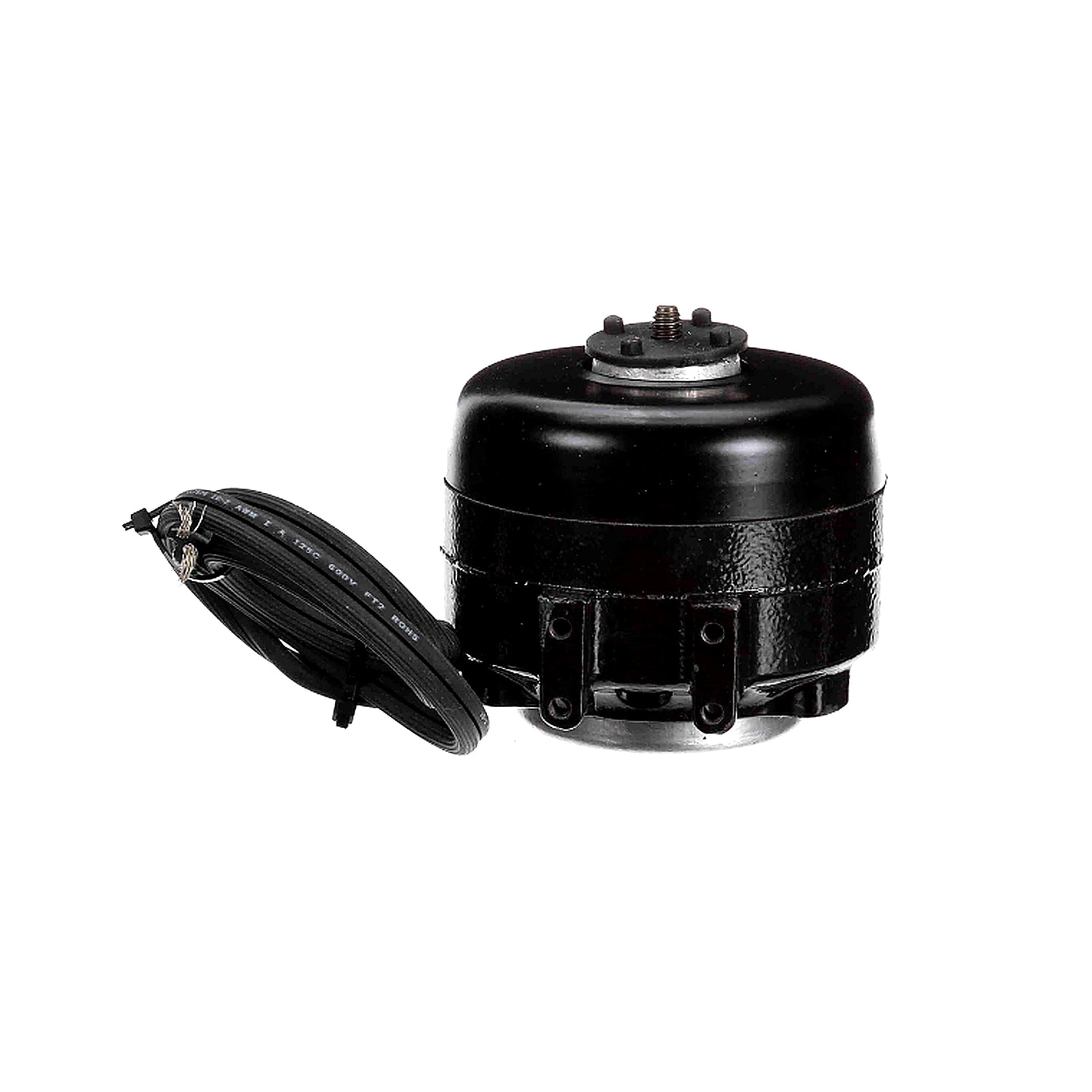

This compact single‑phase refrigeration fan motor delivers 9 watts of power at 1550 RPM and is engineered for continuous air‑over operation in confined HVAC/R environments.

KEY FEATURES

• Model: UB600

• Product Type: Unit bearing refrigeration fan motor

• Horsepower: 9 W

• Voltage: 230 V @ 60 Hz

• Speed: 1550 RPM @ 60 Hz

• Phase: 1 Phase

• Enclosure: Totally Enclosed Air Over (TEAO)

• Insulation Class: B

• Duty: Continuous Air Over

• Electrical Type: Shaded Pole

• Rotation: CWLE (Clockwise Lead End)

• Bearings: Sleeve bearings (unit bearing)

• Mounting: Rear mount with tapped holes and foot mount options

• Ambient Rating: –40 °F to +104 °F (–40 °C to +40 °C)

• Thermal Protection: Impedance protected / thermally protected

• Frame Material: Cast iron or aluminum (varies by variant)

• Number of Speeds: 1

• Frequency: 60 Hz

• Certifications: UL Recognized, CSA, CE (depending on variant)

This compact motor is tailored for refrigeration fan applications, offering a durable TEAO enclosure and sleeve bearing design that ensures reliable, continuous operation in tight HVAC/R spaces.
