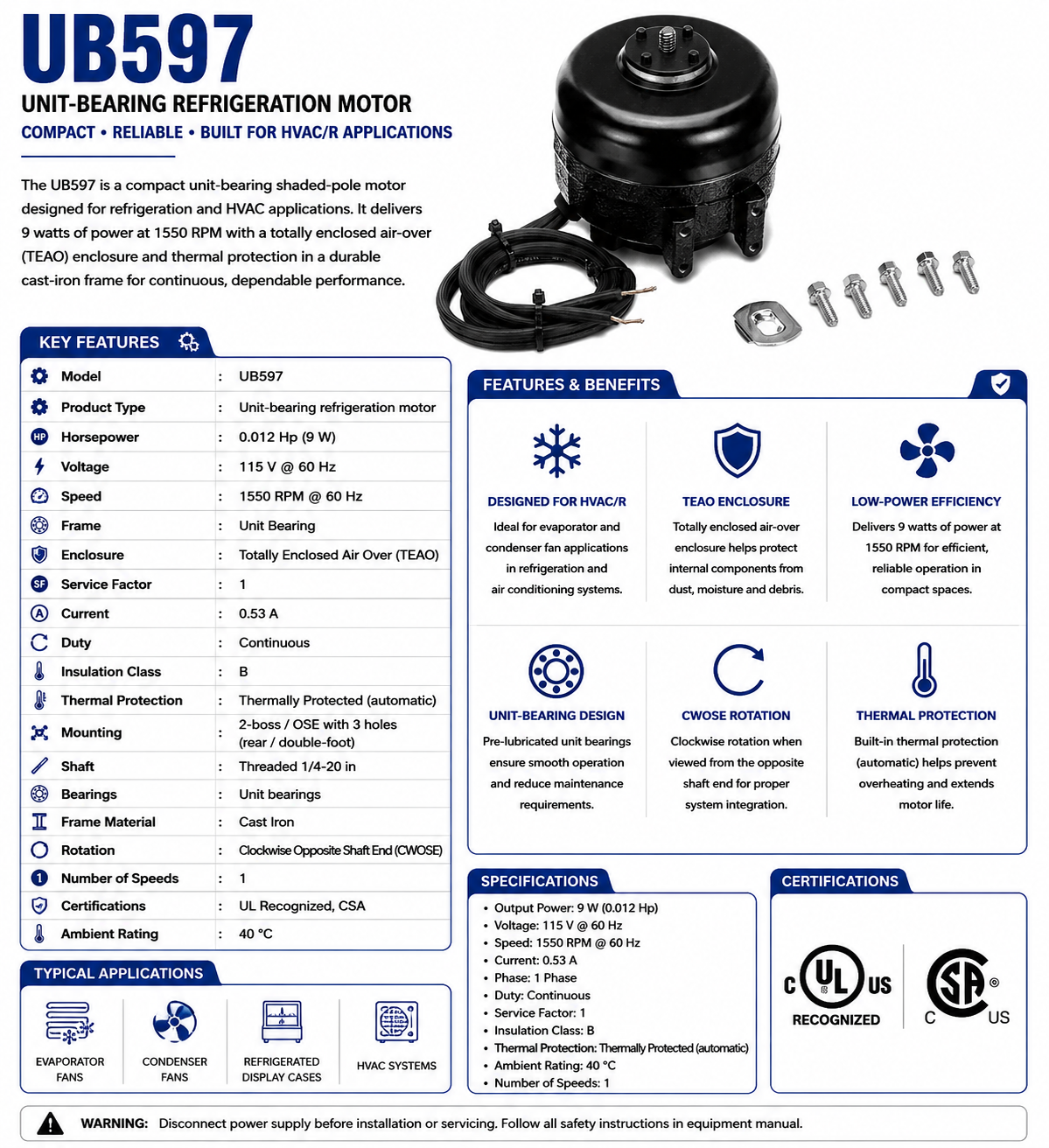

UB597, 0.012 Hp (9 W), 1550 RPM, 115 V, 1 Ph, 60 Hz, TEAO, Unit Bearing

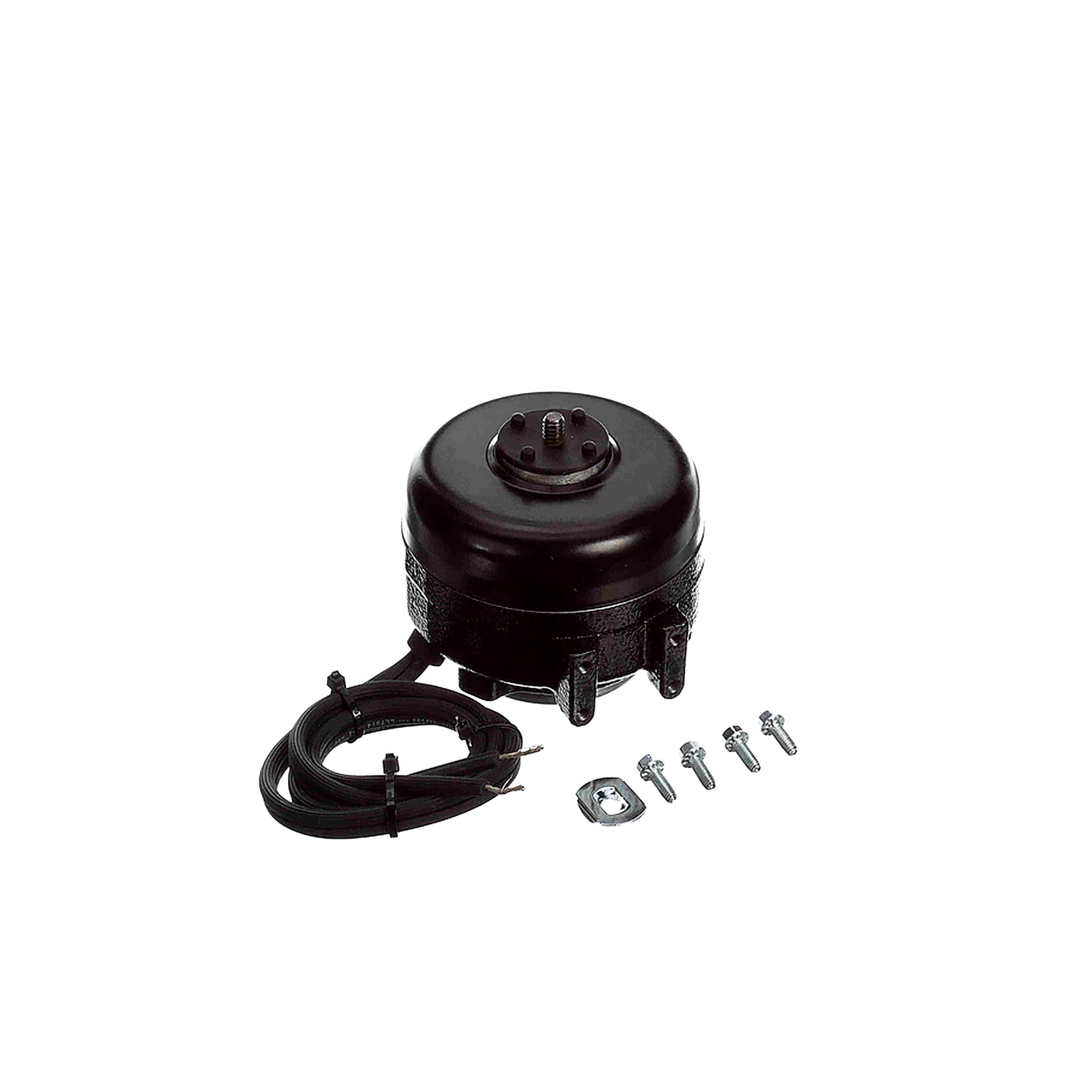

This compact unit-bearing shaded‑pole motor is designed for refrigeration and HVAC applications, delivering 9 watts of power at 1550 RPM with a totally enclosed air‑over (TEAO) enclosure and thermal protection in a cast‑iron frame.

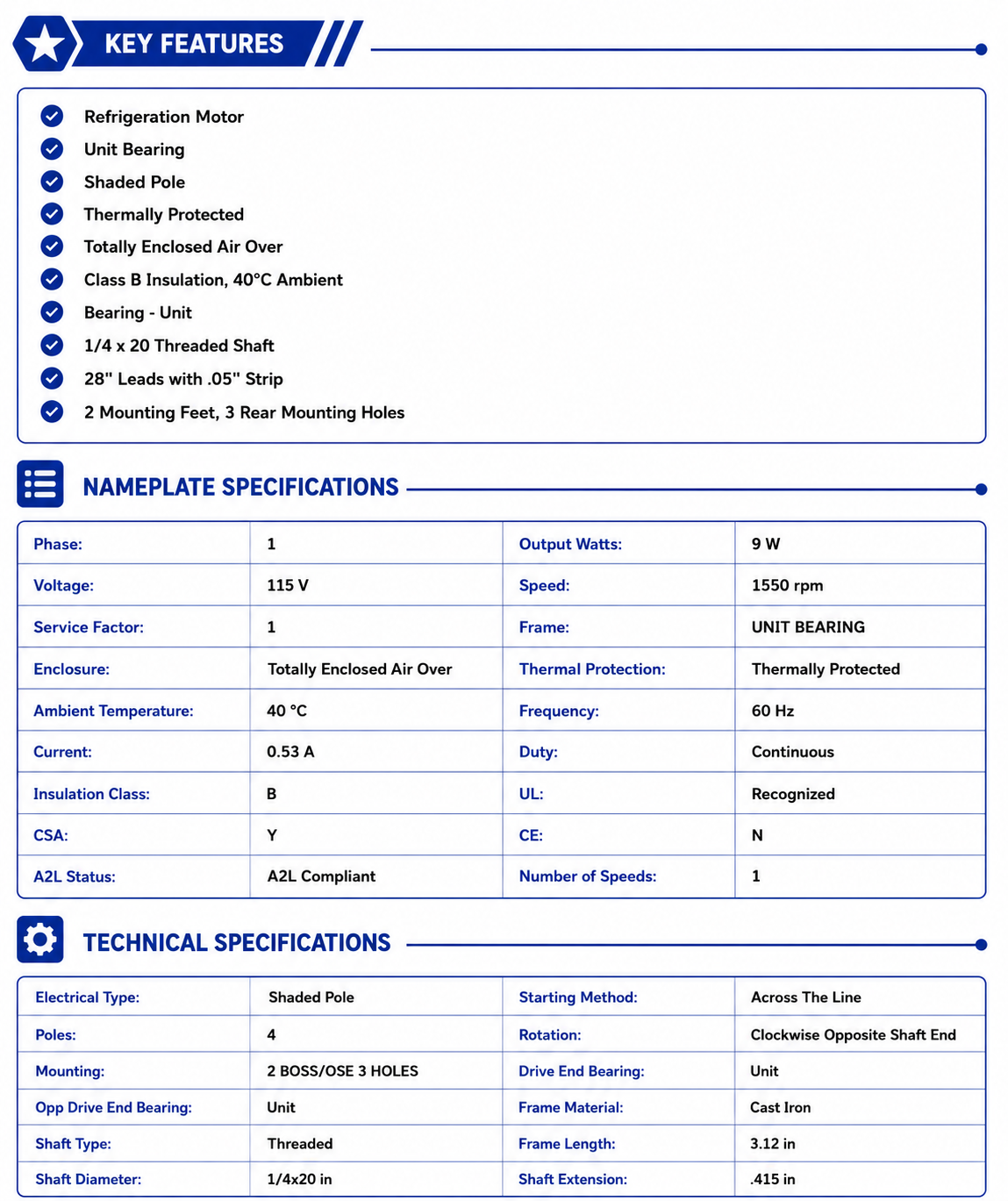

KEY FEATURES

• Model: UB597

• Product Type: Unit‑bearing refrigeration motor

• Horsepower: 0.012 Hp (9 W)

• Voltage: 115 V @ 60 Hz

• Speed: 1550 RPM @ 60 Hz

• Frame: Unit Bearing

• Enclosure: Totally Enclosed Air Over (TEAO)

• Service Factor: 1

• Current: 0.53 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Thermally Protected (automatic)

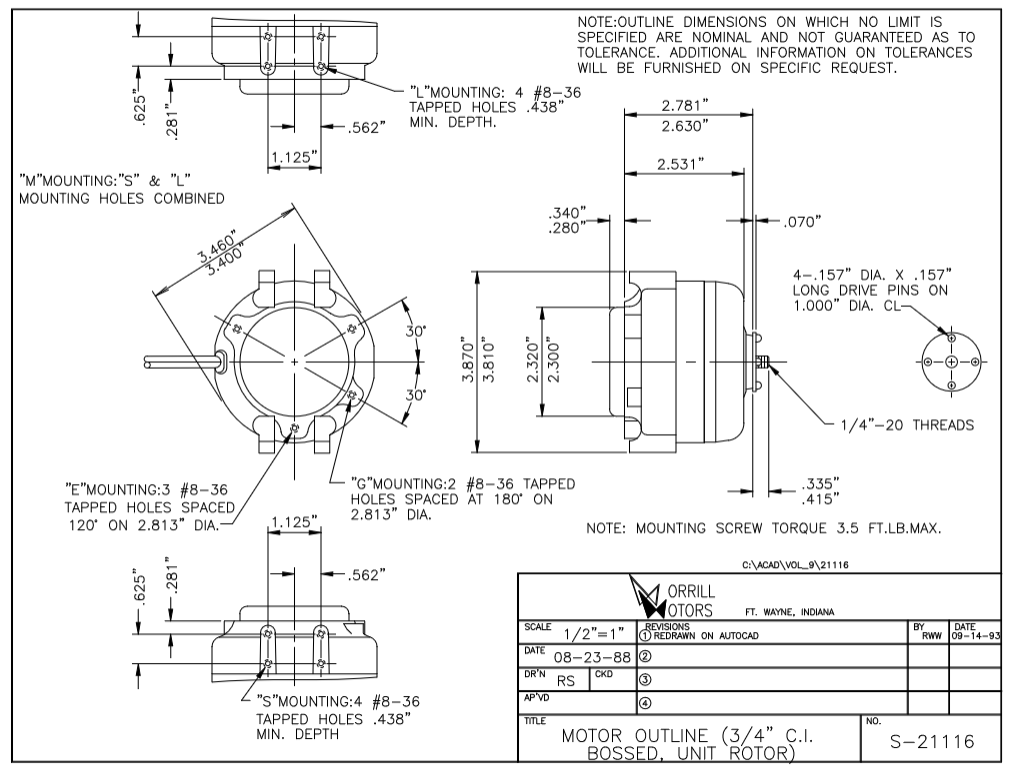

• Mounting: 2‑boss / OSE with 3 holes (rear/double‑foot)

• Shaft: Threaded 1/4‑20 in

• Bearings: Unit bearings

• Frame Material: Cast Iron

• Rotation: Clockwise Opposite Shaft End (CWOSE)

• Number of Speeds: 1

• Certifications: UL Recognized, CSA

• Ambient Rating: 40 °C

This motor’s compact unit‑bearing design with TEAO enclosure and thermal protection makes it ideal for refrigeration and HVAC systems requiring reliable, low‑power operation in tight spaces.
