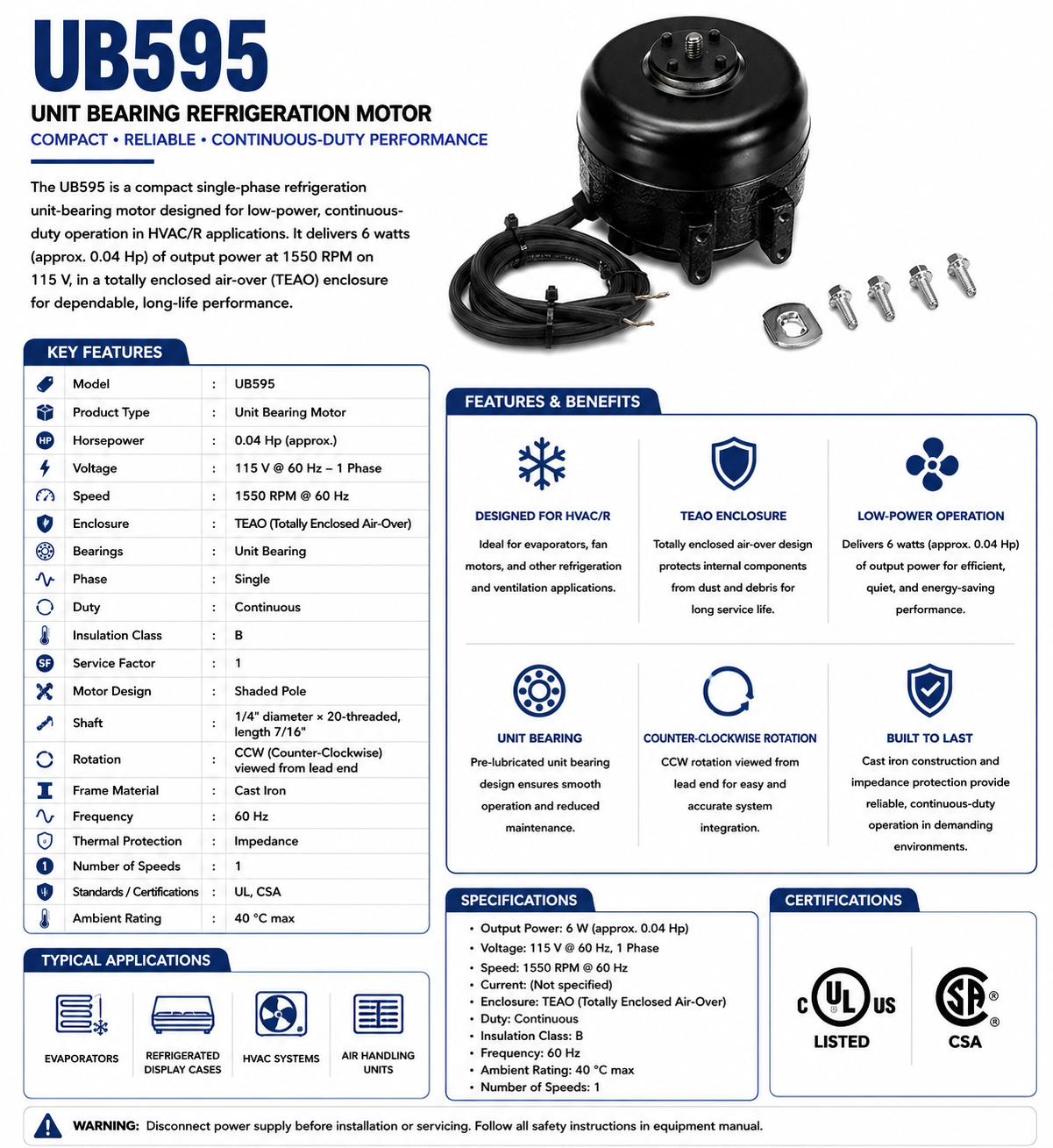

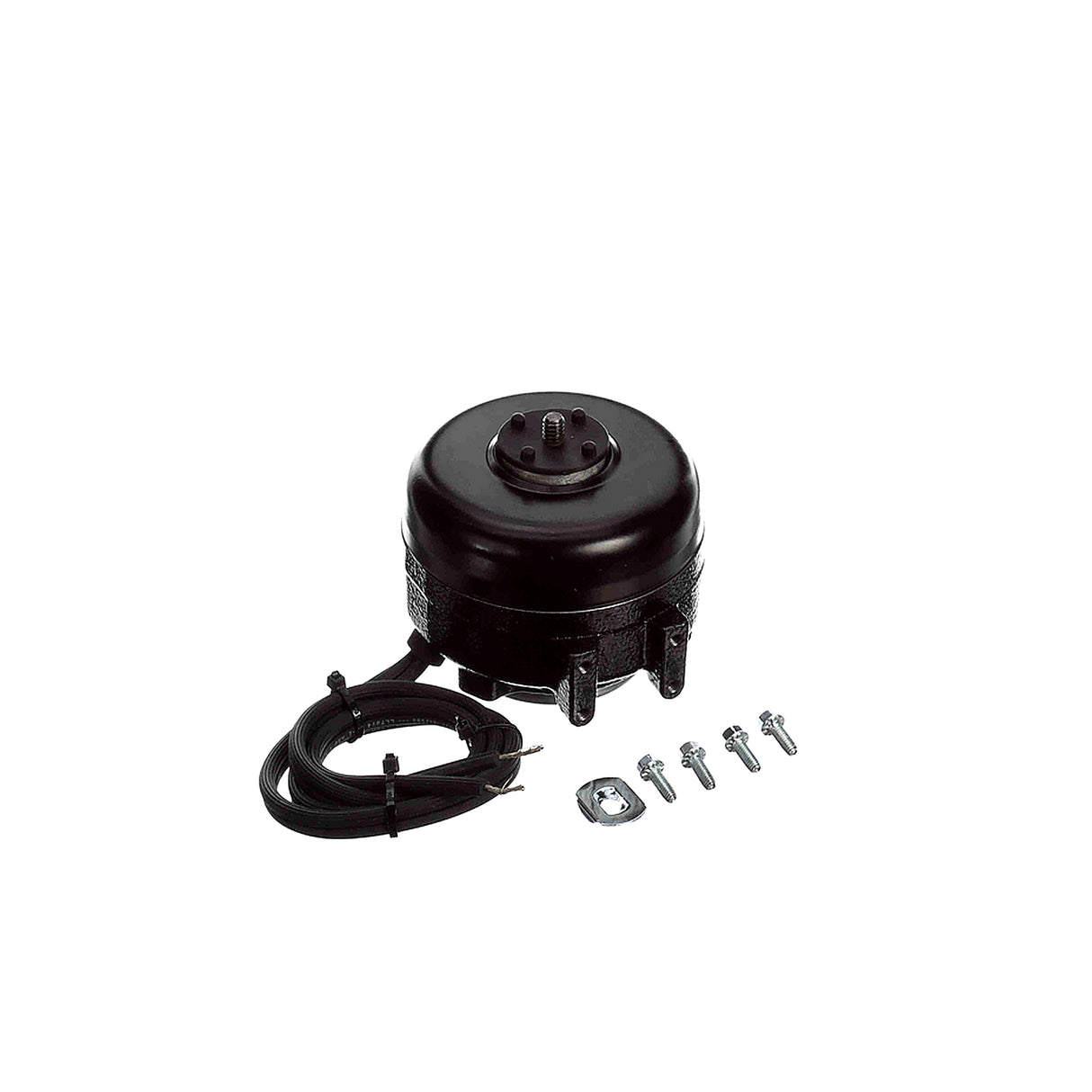

UB595, 0.04 Hp, 1550 RPM, 115 V, 1 Ph, 60 Hz, TEAO (Totally Enclosed Air‑Over), Unit Bearing

This compact single‑phase refrigeration unit‑bearing motor delivers low‑power operation at 6 watts (approx. 0.04 Hp), running at 1550 RPM on 115 V, designed for continuous-duty HVAC/R applications in a totally enclosed air‑over enclosure.

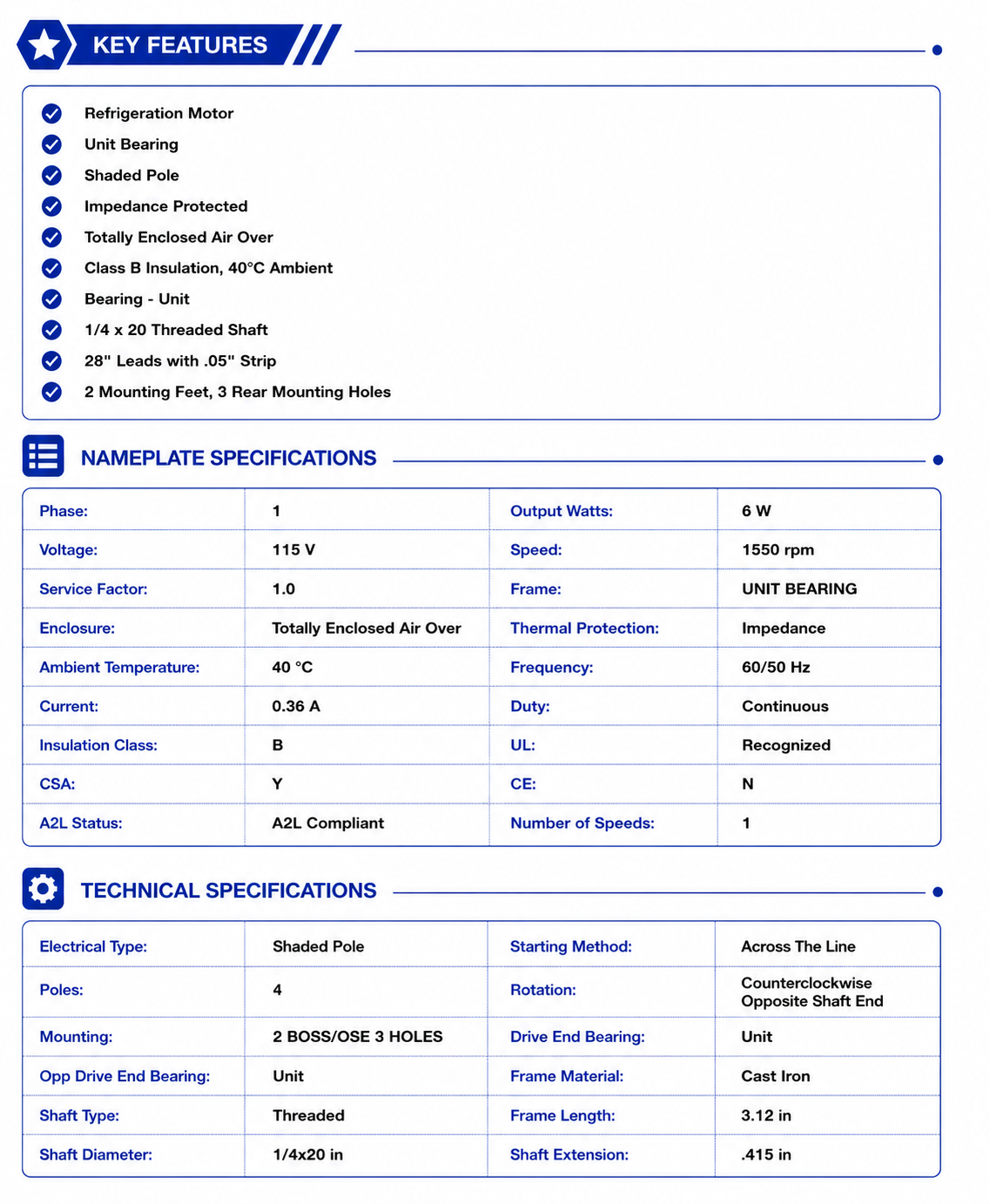

KEY FEATURES

• Model: UB595

• Product Type: Unit Bearing Motor

• Horsepower: 0.04 Hp (approx.)

• Voltage: 115 V @ 60 Hz – 1 Phase

• Speed: 1550 RPM @ 60 Hz

• Enclosure: TEAO (Totally Enclosed Air‑Over)

• Bearings: Unit Bearing

• Phase: Single

• Duty: Continuous

• Insulation Class: B

• Service Factor: 1

• Motor Design: Shaded Pole

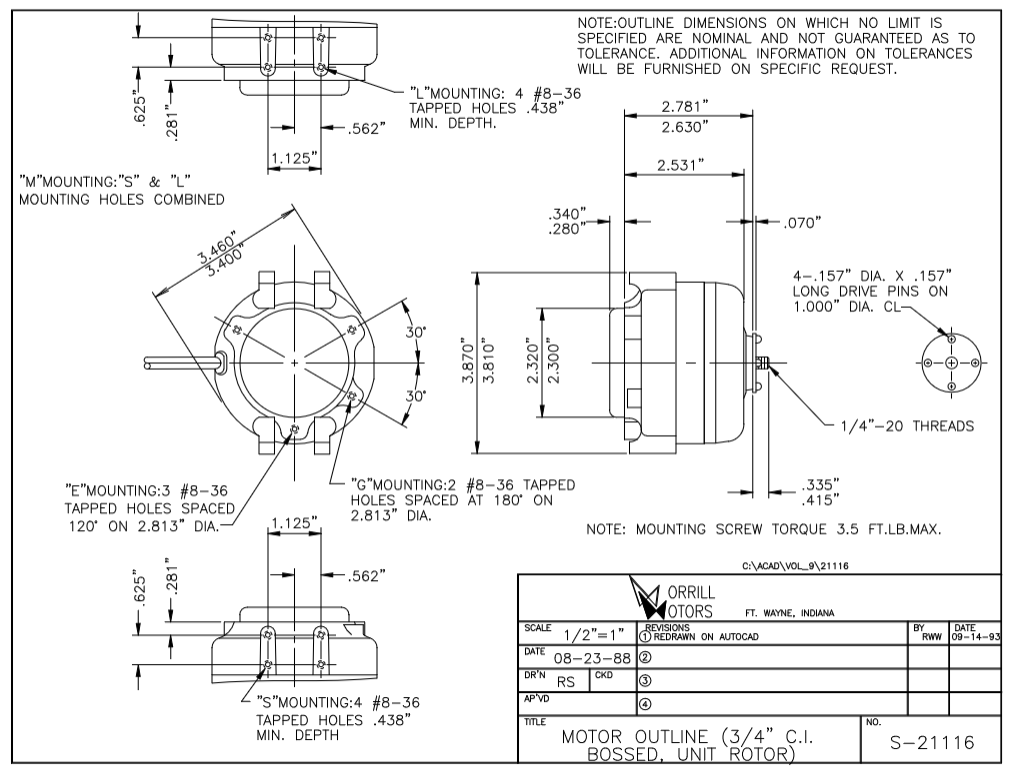

• Shaft: 1/4" diameter × 20‑threaded, length 7/16"

• Rotation: CCW (Counter‑Clockwise) viewed from lead end

• Frame Material: Cast Iron

• Frequency: 60 Hz

• Thermal Protection: Impedance

• Number of Speeds: 1

• Standards/Certifications: UL, CSA

• Ambient Rating: 40 °C max
