US Motors - Nidec  |  SKU : EMN-017026

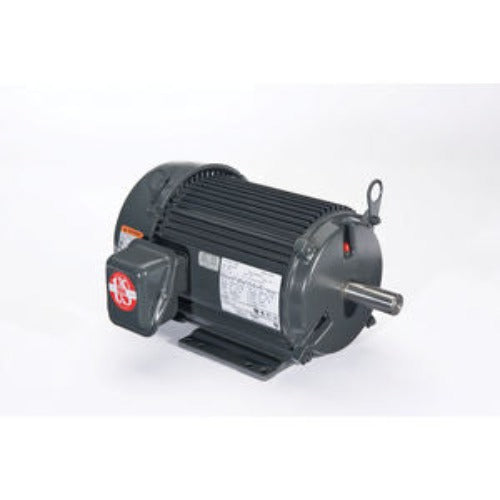

U25P2D, Us motors, Nidec, 25 Hp, 1800 Rpm, 230/460V, Fr:284T, TEFC,

$3,496.99
shipping

Estimation des frais de livraison

Description

U25P2D, Us motors, Nidec, Unimount NEMA,

Material Aluminum
Hertz 50 / 60
Phase 3
Number of Poles 4
Performance Continuous Duty
Insulation Type Class F
Specification UL / CSA / CE
Service Factor 1.25
Standard Rotation Reverse
Voltage 208 - 230 / 190 / 460 / 380
Type Three Phase Motor
Enclosure Type Totally Enclosed / Fan Cooled (TEFC)
Application General Purpose
Shaft Diameter 1.875"
Style Polyphase
Mount Type Rigid Base
Horsepower 25.0
Frame Type 284
Speed 1770 / 1460 rpm
Efficiency 93.6%
Break Down Torque 246% of FLT
Locked Rotor Torque 250% of FLT
Power Factor 85.4
Amps 65 - 59 / 29.3
Product Weight 280
UOM each
