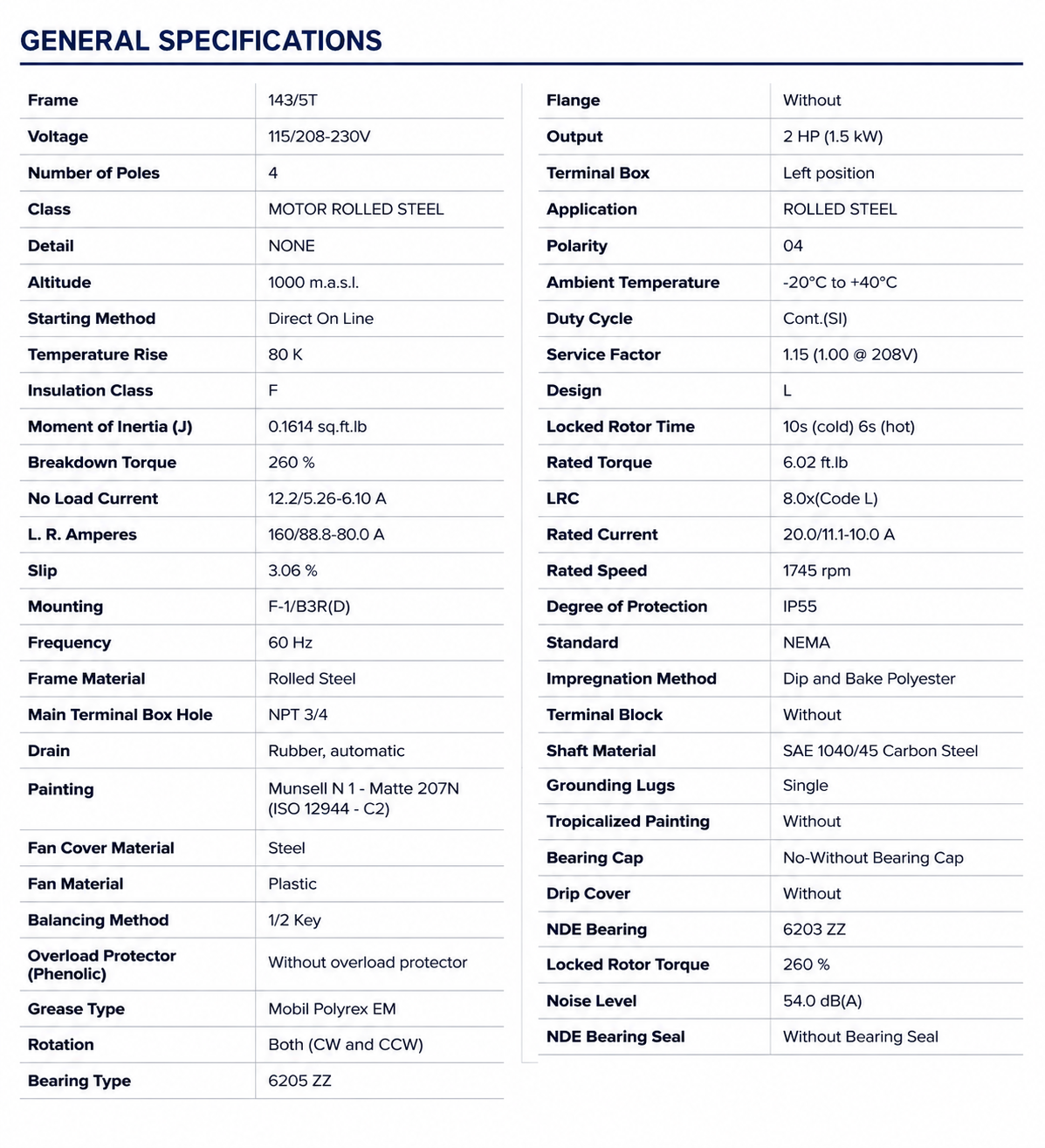

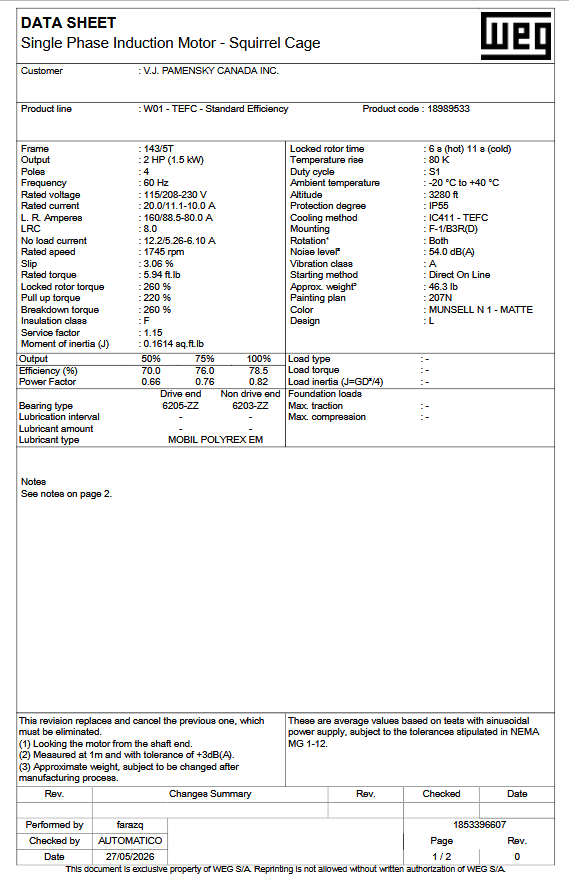

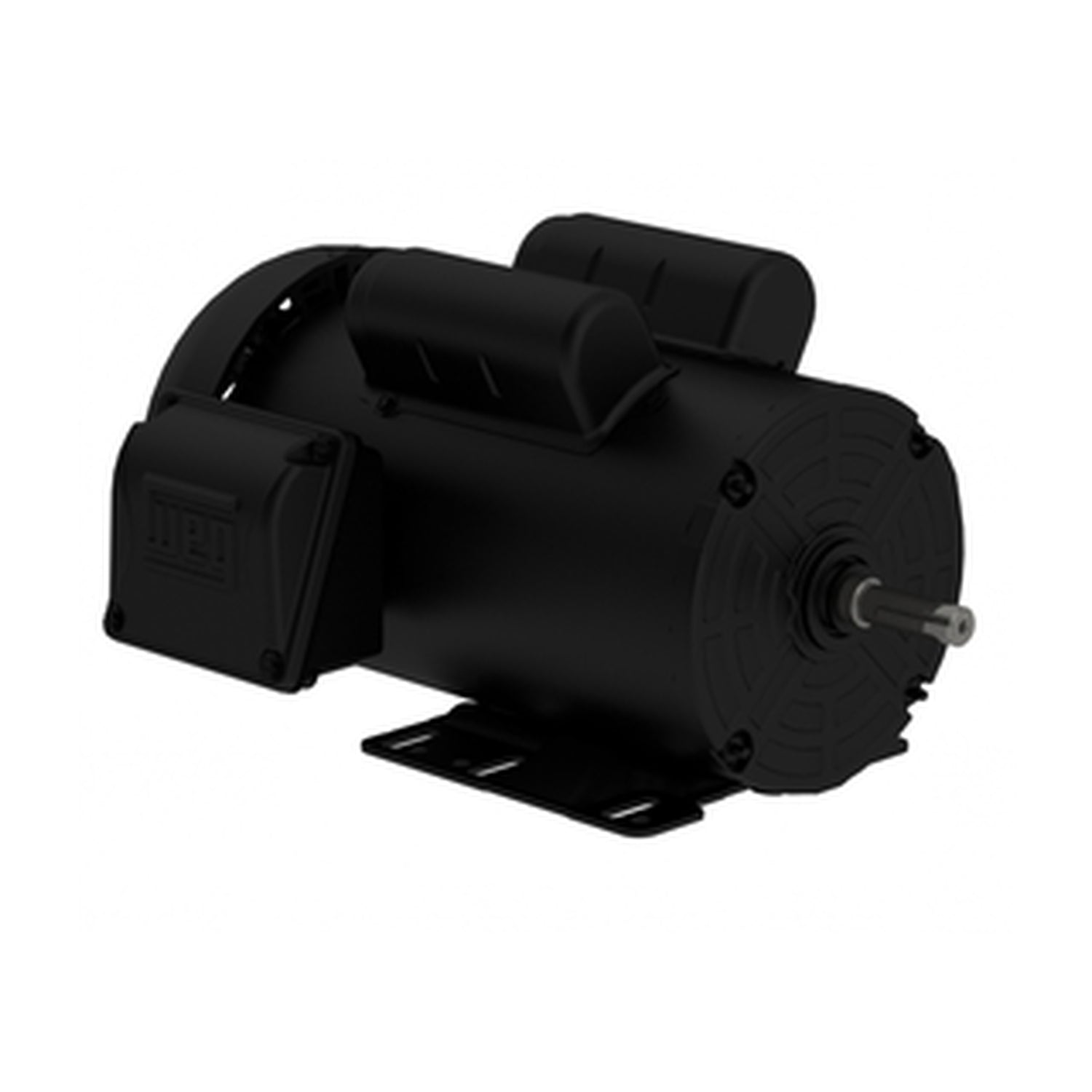

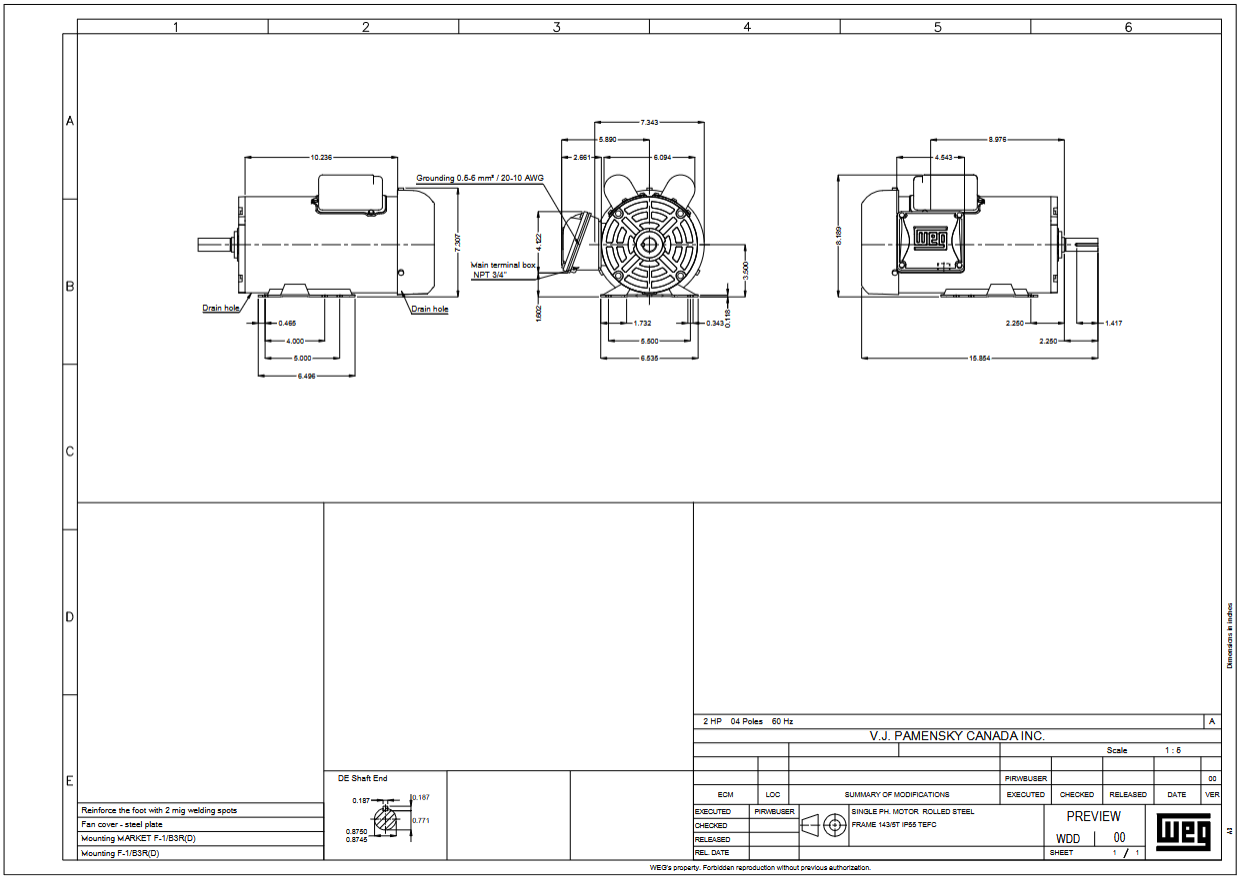

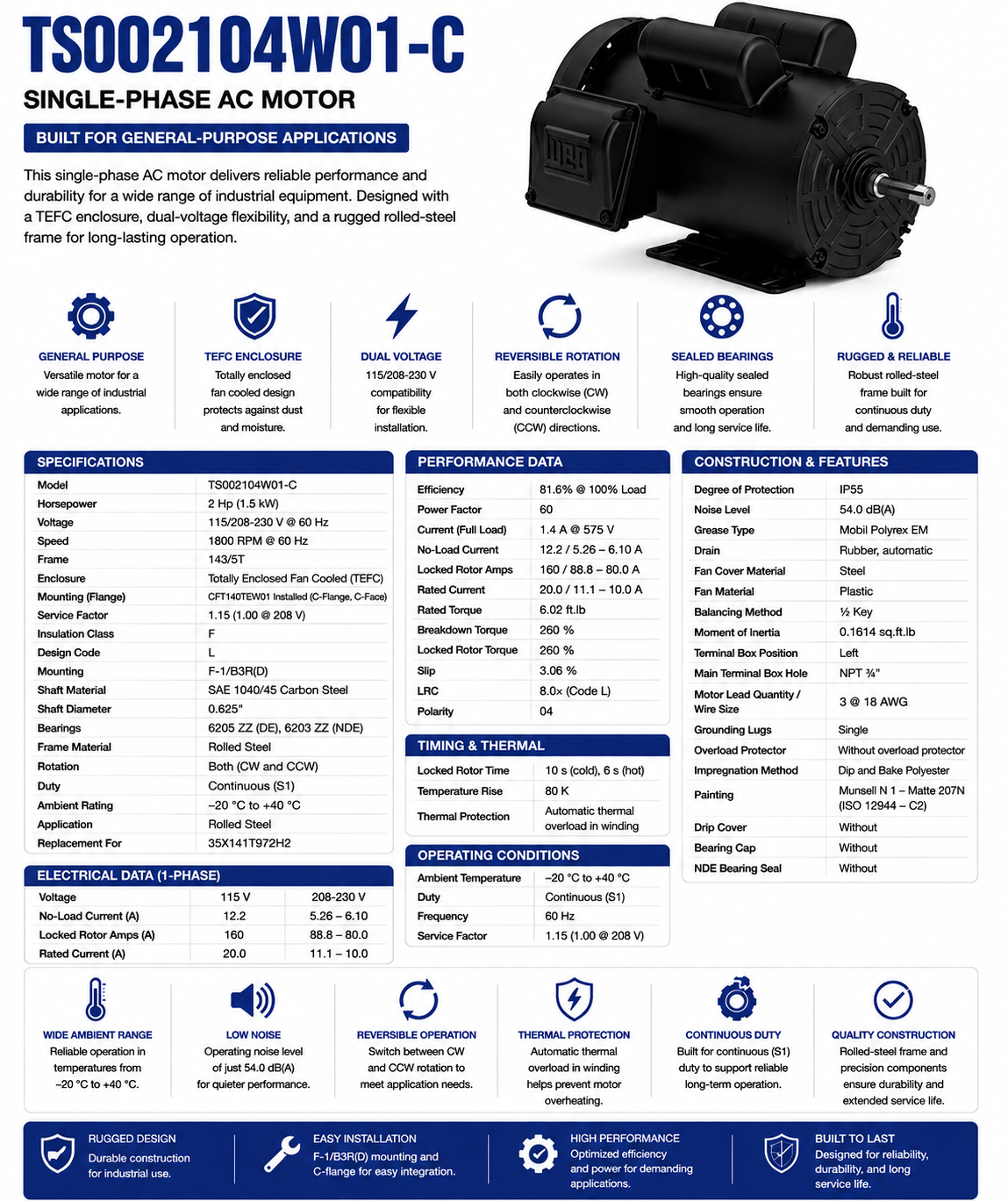

TS002104W01-C, 2Hp, 1800 RPM, 115/208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 143/5T, C-Flanged Installed

This single‑phase AC motor is engineered for general‑purpose applications, featuring a totally enclosed fan‑cooled (TEFC) enclosure, dual‑voltage compatibility, and a robust rolled‑steel frame.

KEY FEATURES

• Model: TS002104W01-C

• Horsepower: 2 Hp (1.5 kW)

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 1800 RPM @ 60 Hz

• Frame: 143/5T

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Mounting: CFT140TEW01 Installed

• Service Factor: 1.15 (1.00 @ 208 V)

• Insulation Class: F

• Design Code: L

• Shaft Material: SAE 1040/45 Carbon Steel

• Bearings: 6205 ZZ (DE), 6203 ZZ (NDE)

• Frame Material: Rolled Steel

• Rotation: Both (CW and CCW)

• Duty: Continuous (S1)

• Locked Rotor Time: 10 s (cold), 6 s (hot)

• Temperature Rise: 80 K

• Degree of Protection: IP55

• Ambient Rating: –20 °C to +40 °C

• Noise Level: 54.0 dB(A)

• Grease Type: Mobil Polyrex EM

• Drain: Rubber, automatic

• Fan Cover Material: Steel; Fan Material: Plastic

• Balancing Method: ½ Key

• Moment of Inertia: 0.1614 sq.ft.lb

• Breakdown Torque: 260 %

• Slip: 3.06 %

• No‑Load Current: 12.2/5.26‑6.10 A

• Locked Rotor Amps: 160/88.8‑80.0 A

• Rated Current: 20.0/11.1‑10.0 A

• Rated Torque: 6.02 ft.lb

• LRC: 8.0× (Code L)

• Polarity: 04

• Terminal Box: Left position; Main Terminal Box Hole: NPT ¾

• Grounding Lugs: Single

• Overload Protector: Without overload protector

• Impregnation Method: Dip and Bake Polyester

• Painting: Munsell N 1 – Matte 207N (ISO 12944 – C2)

• Drip Cover: Without; Bearing Cap: Without; NDE Bearing Seal: Without

• Application: Rolled Steel

• Polarity: 04

• Locked Rotor Torque: 260 %

• Noise Level: 54.0 dB(A)

• Ambient Temperature: –20 °C to +40 °C

CROSS REFERENCE

• CFDL3516TM

• 35E2321N499G1
