TITAN  |  SKU : EMN-017171

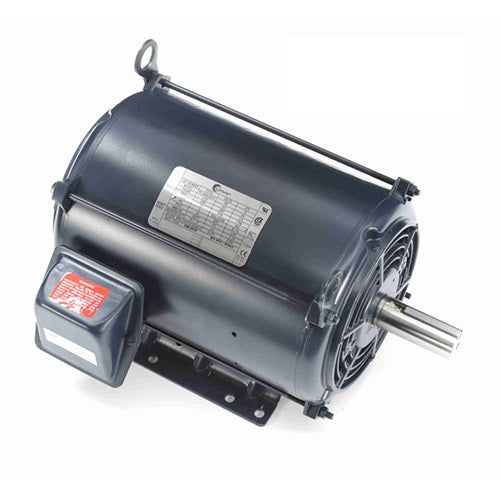

TO131 Century, Leeson, 10 HP 1800RPM 575/3/60 215T ODP 10:1 VT 2:1 CT General Purpose Motor 1.15SF

$939.95
shipping

Estimation des frais de livraison

Description



Replace Baldor EM3313T-5

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2050
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes
  • Will become build-up item when current stock is gone

General Specifications

UPC: 786674066206 Weight: 139.00 LB
Packaged Length: 18.9 IN Packaged Width: 13.88 IN
Packaged Height: 16.83 IN HTC: 8501.52.4000
Country of Origin: China

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 575 V
Current: 10.24 A Speed: 1770 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 215T Enclosure: Open Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: POLYPHASE Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 17.52 in
Frame Length: 11.15 in Shaft Diameter: 1.375 in
Shaft Extension: 3.38 in
