WEG | SKU :
EMN-019573

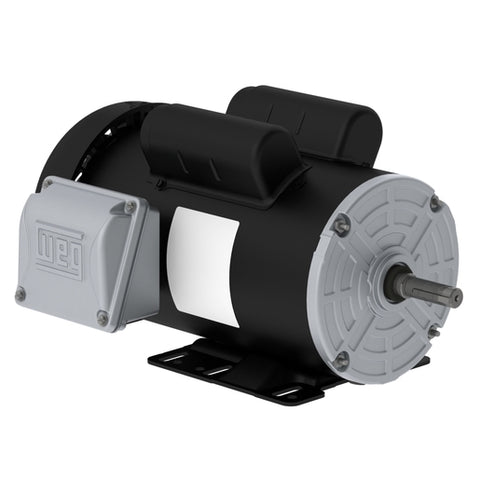

TF.75106W01, Weg, 0.75Hp, 1170 Rpm, 115/208-230 V, Frame: 56H, TEFC,
Prix habituel
$511.39
Prix unitaire
/
Indisponible
TF.75106W01, Weg, 0.75Hp, 1170 Rpm, 115/208-230 V, Frame: 56H, TEFC, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
TF.75106W01, Weg, 0.75Hp, 1170 Rpm, 115/208-230 V, Frame: 56H, TEFC,
Prix habituel
$511.39
Prix unitaire
/
Indisponible
Description
Description
TF.75106W01, Weg, TF.75106W01MFC,

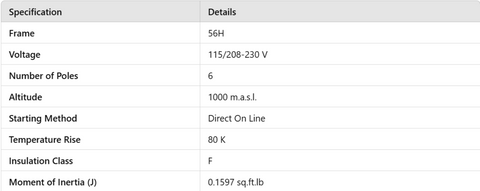

| Specification | Details |
|---|---|
| Frame | 56H |
| Voltage | 115/208-230 V |
| Number of Poles | 6 |
| Altitude | 1000 m.a.s.l. |
| Starting Method | Direct On Line |
| Temperature Rise | 80 K |
| Insulation Class | F |
| Moment of Inertia (J) | 0.1597 sq.ft.lb |

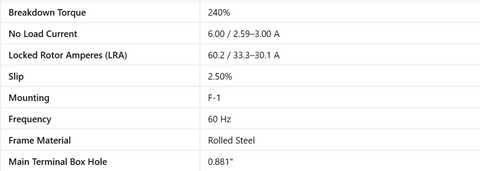

| Breakdown Torque | 240% |
| No Load Current | 6.00 / 2.59–3.00 A |
| Locked Rotor Amperes (LRA) | 60.2 / 33.3–30.1 A |
| Slip | 2.50% |
| Mounting | F-1 |
| Frequency | 60 Hz |
| Frame Material | Rolled Steel |
| Main Terminal Box Hole | 0.881" |

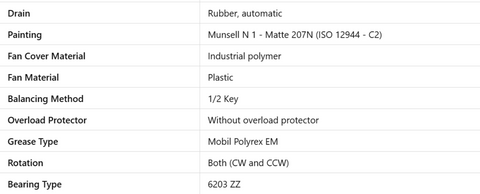

| Drain | Rubber, automatic |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Fan Cover Material | Industrial polymer |
| Fan Material | Plastic |
| Balancing Method | 1/2 Key |
| Overload Protector | Without overload protector |
| Grease Type | Mobil Polyrex EM |
| Rotation | Both (CW and CCW) |
| Bearing Type | 6203 ZZ |

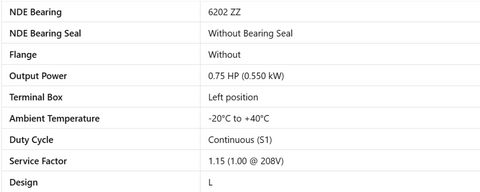

| NDE Bearing | 6202 ZZ |
| NDE Bearing Seal | Without Bearing Seal |
| Flange | Without |
| Output Power | 0.75 HP (0.550 kW) |
| Terminal Box | Left position |
| Ambient Temperature | -20°C to +40°C |
| Duty Cycle | Continuous (S1) |
| Service Factor | 1.15 (1.00 @ 208V) |
| Design | L |

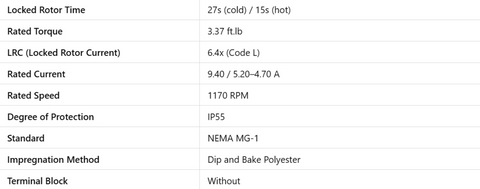

| Locked Rotor Time | 27s (cold) / 15s (hot) |
| Rated Torque | 3.37 ft.lb |
| LRC (Locked Rotor Current) | 6.4x (Code L) |
| Rated Current | 9.40 / 5.20–4.70 A |
| Rated Speed | 1170 RPM |
| Degree of Protection | IP55 |
| Standard | NEMA MG-1 |
| Impregnation Method | Dip and Bake Polyester |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Bearing Cap | No - Without Bearing Cap |
| Drip Cover | Without |
| Locked Rotor Torque | 220% |
| Noise Level | 54.0 dB(A) |
| Sealing | V'Ring |
The WEG TF.75106W01 appears to be a jet pump motor from WEG's W01 series. This series is known for its robustness, lightweight design, and high performance, making it suitable for various applications.
