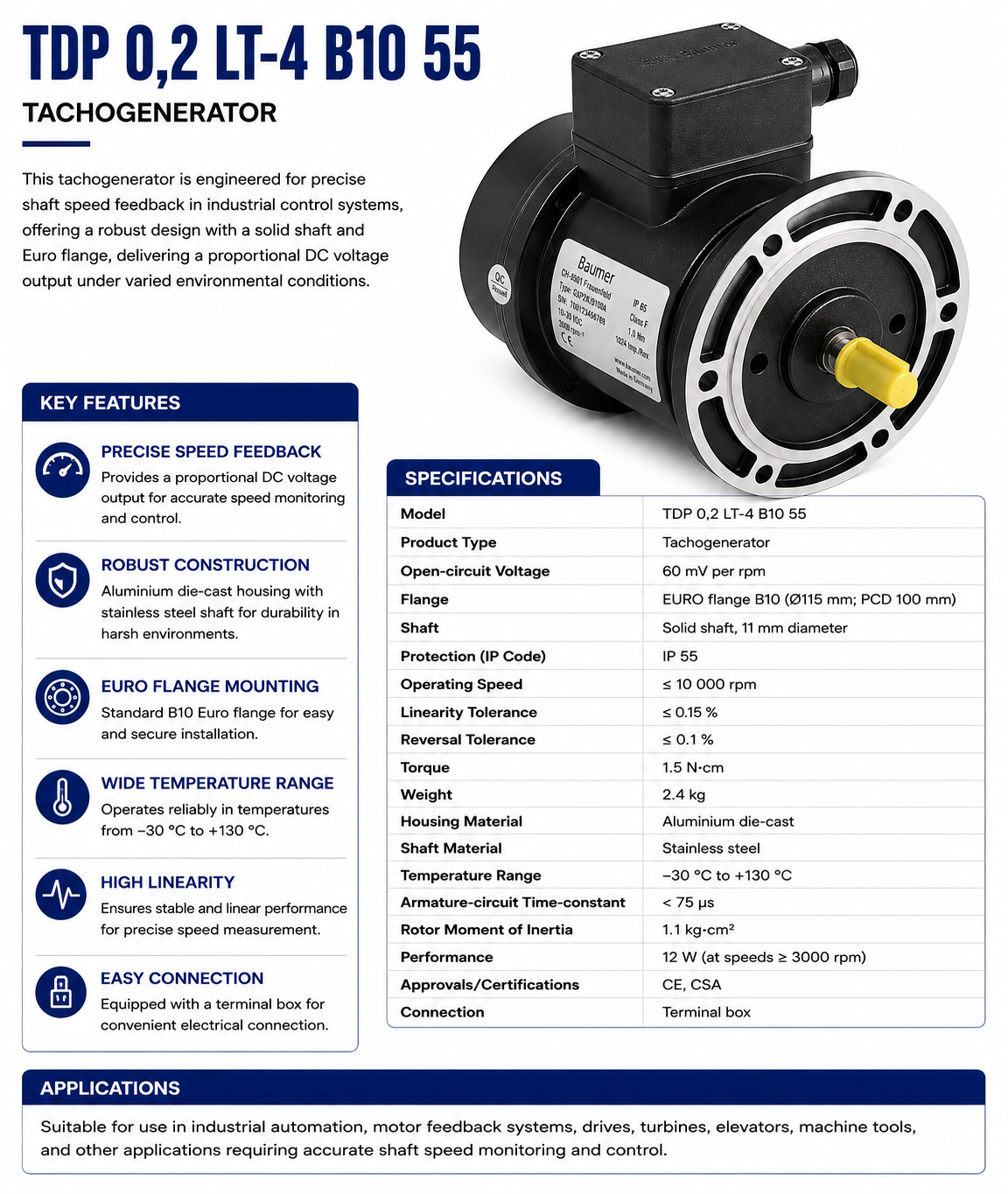

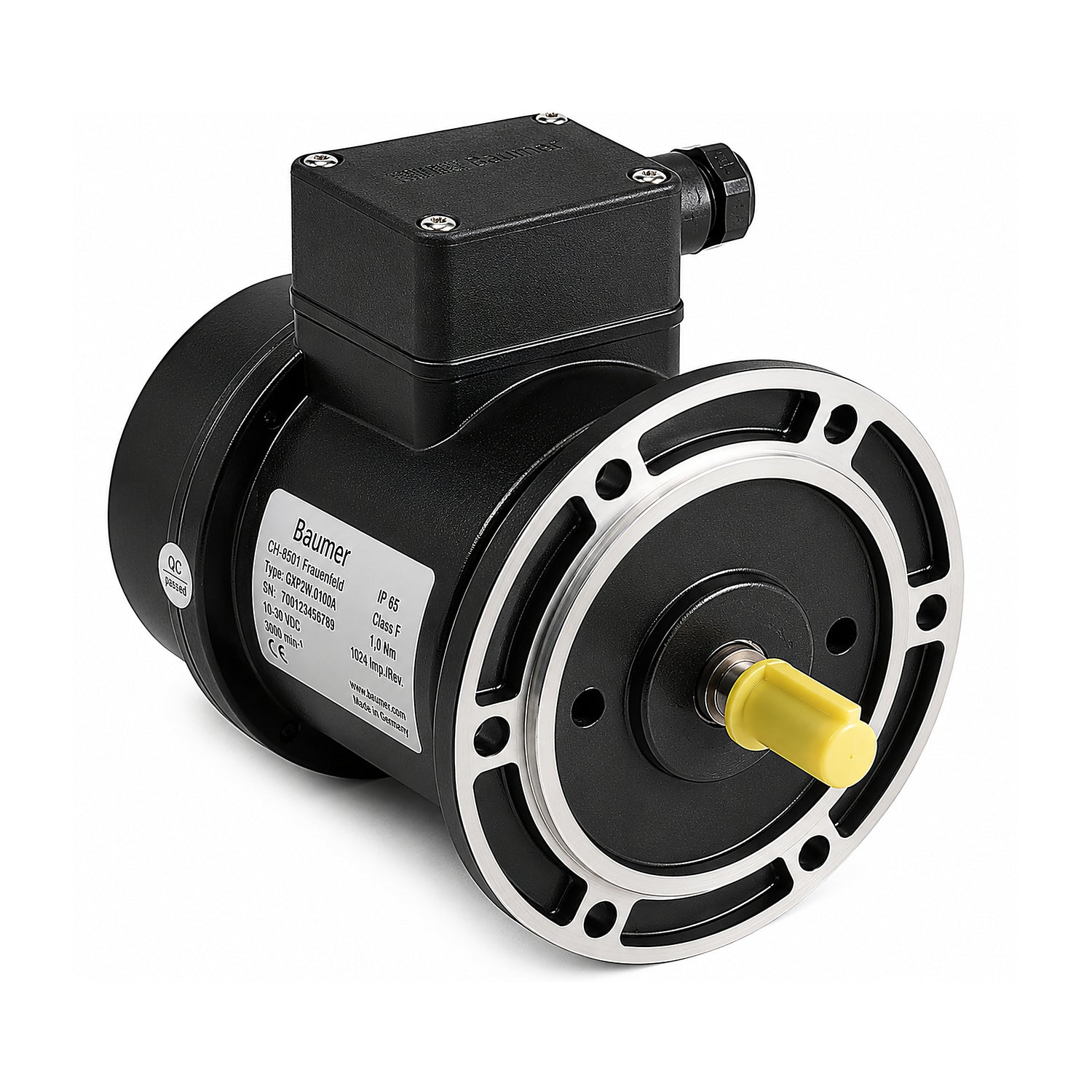

TDP 0,2 LT‑4 B10 55, Tachogenerator, 60 mV/rpm, IP55, Solid Shaft 11 mm, Euro Flange B10, Part# 11070721

This tachogenerator is engineered for precise shaft speed feedback in industrial control systems, offering a robust design with a solid shaft and Euro flange, delivering a proportional DC voltage output under varied environmental conditions.

KEY FEATURES

• Model: TDP 0,2 LT‑4 B10 55

• Product Type: Tachogenerator

• Open‑circuit Voltage: 60 mV per rpm

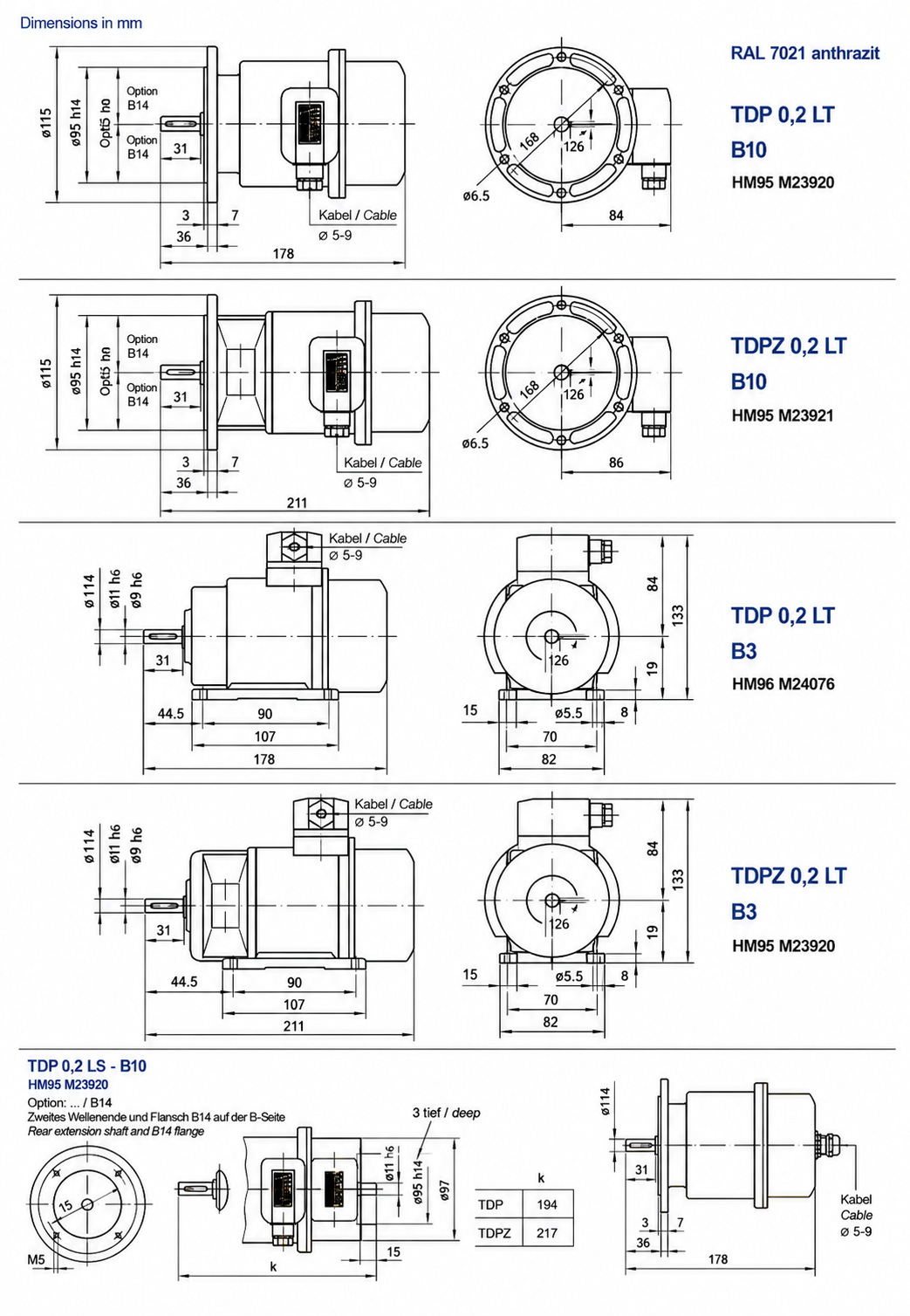

• Flange: EURO flange B10 (Ø115 mm; PCD 100 mm)

• Shaft: Solid shaft, 11 mm diameter

• Protection (IP Code): IP 55

• Operating Speed: ≤ 10 000 rpm

• Linearity Tolerance: ≤ 0.15 %

• Reversal Tolerance: ≤ 0.1 %

• Torque: 1.5 N·cm

• Weight: 2.4 kg

• Housing Material: Aluminium die‑cast

• Shaft Material: Stainless steel

• Temperature Range: –30 °C to +130 °C

• Armature‑circuit Time‑constant: < 75 µs

• Rotor Moment of Inertia: 1.1 kg·cm²

• Performance: 12 W (at speeds ≥ 3000 rpm)

• Approvals/Certifications: CE, CSA

• Connection: Terminal box

CROSS REFERENCE

• RE.0444R
