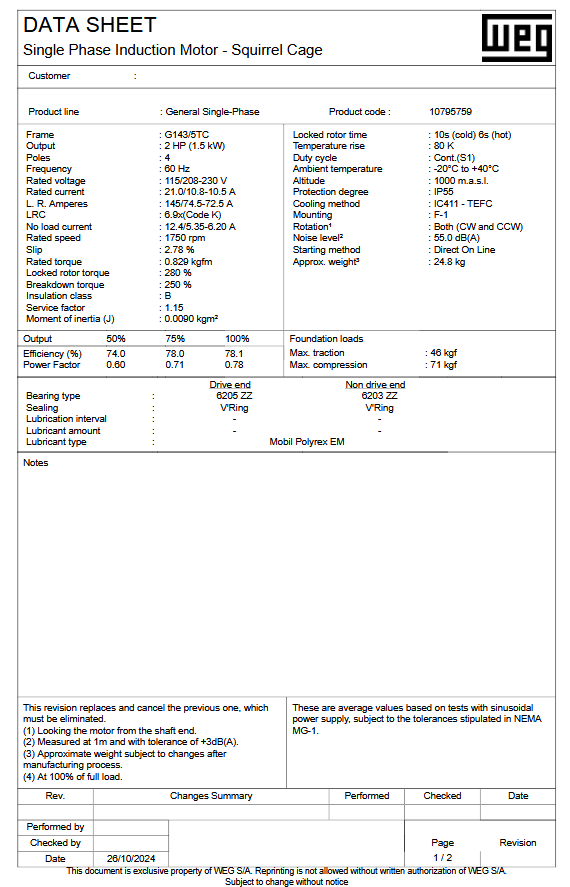

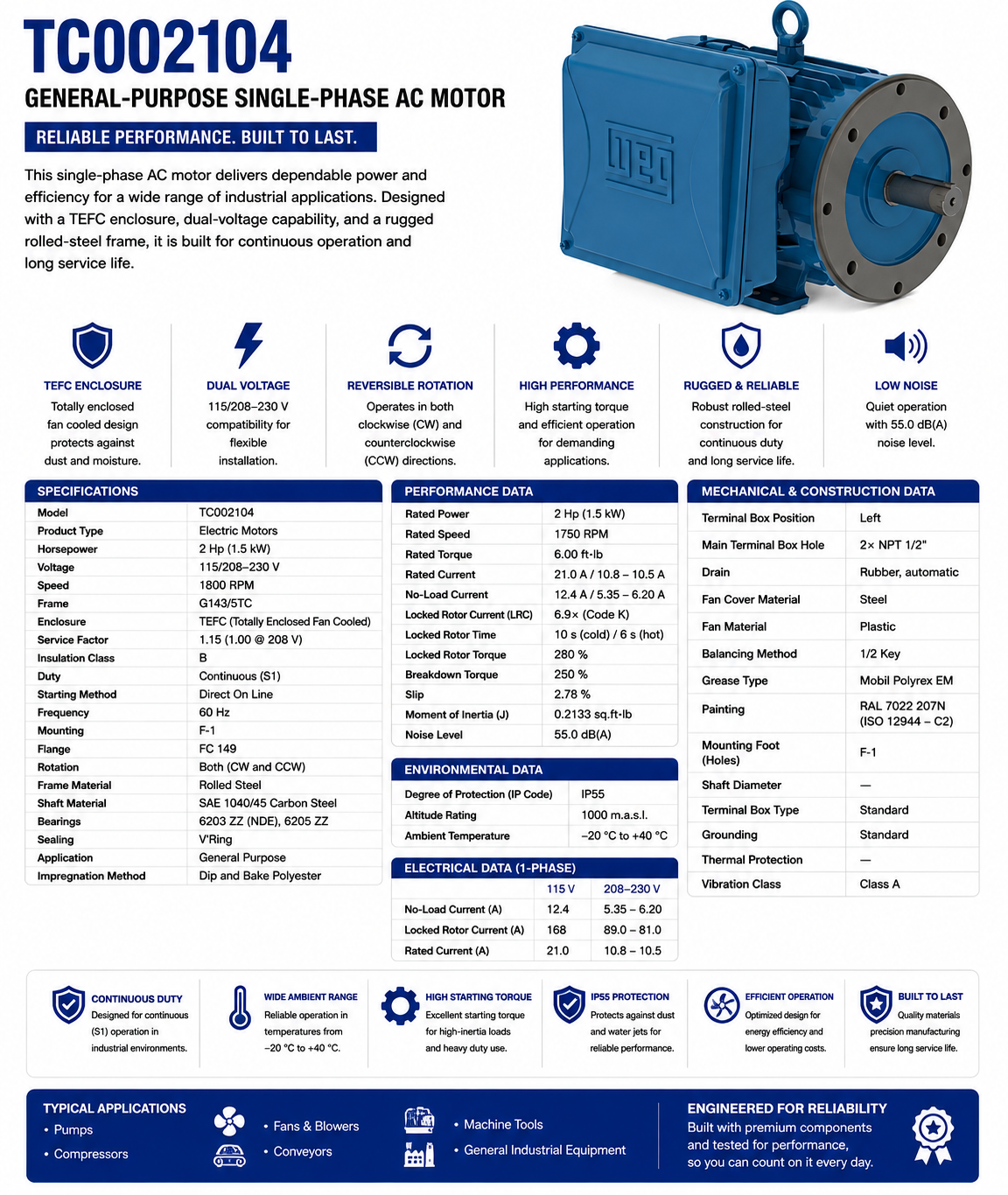

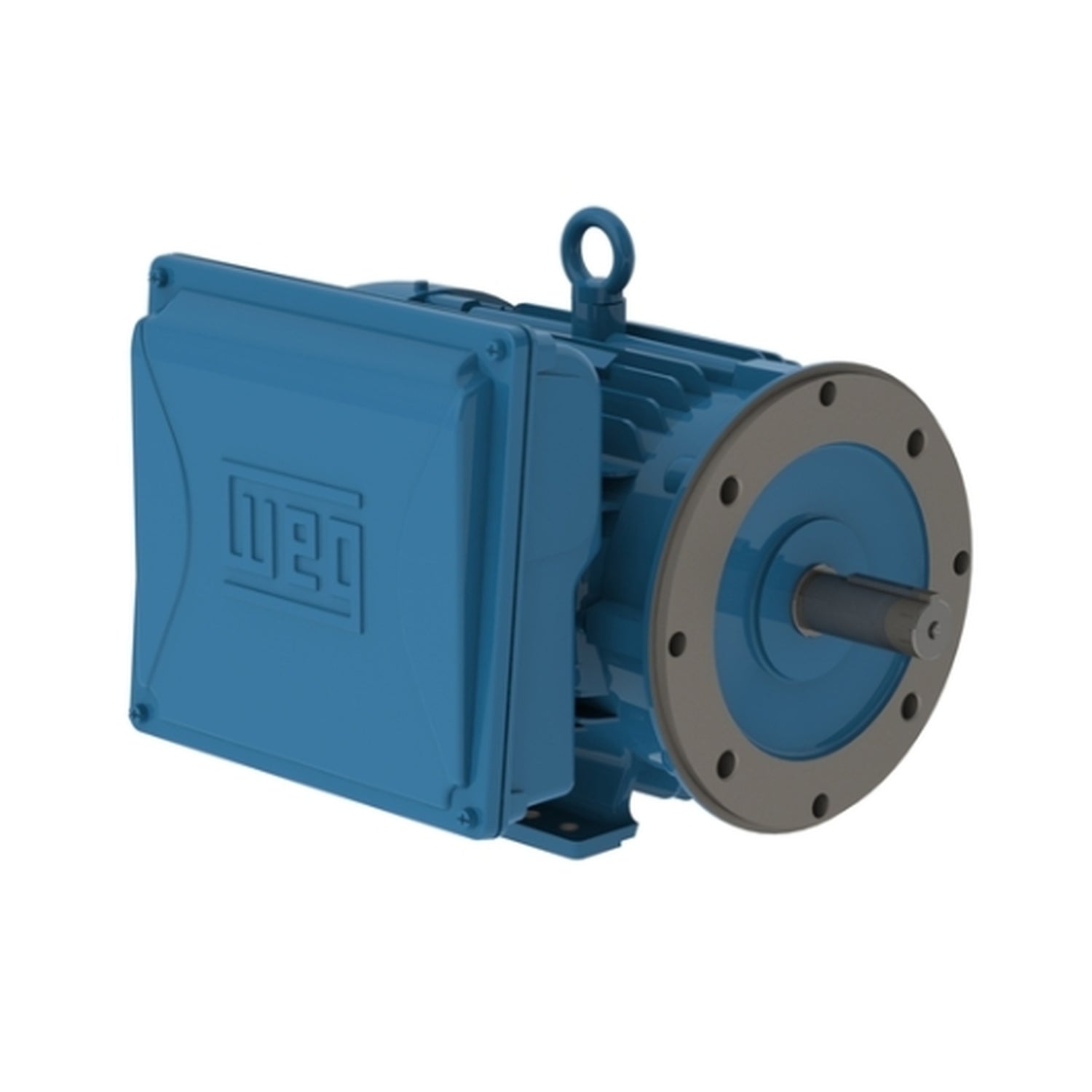

TC002104, 2Hp, 1800 RPM, 115/208‑230 V, 1‑Phase, 60 Hz, TEFC, Frame G143/5TC

This general‑purpose single‑phase AC motor delivers 2 Hp output with dual‑voltage capability and a totally enclosed fan‑cooled (TEFC) design in a compact G143/5TC frame, suitable for continuous industrial operation.

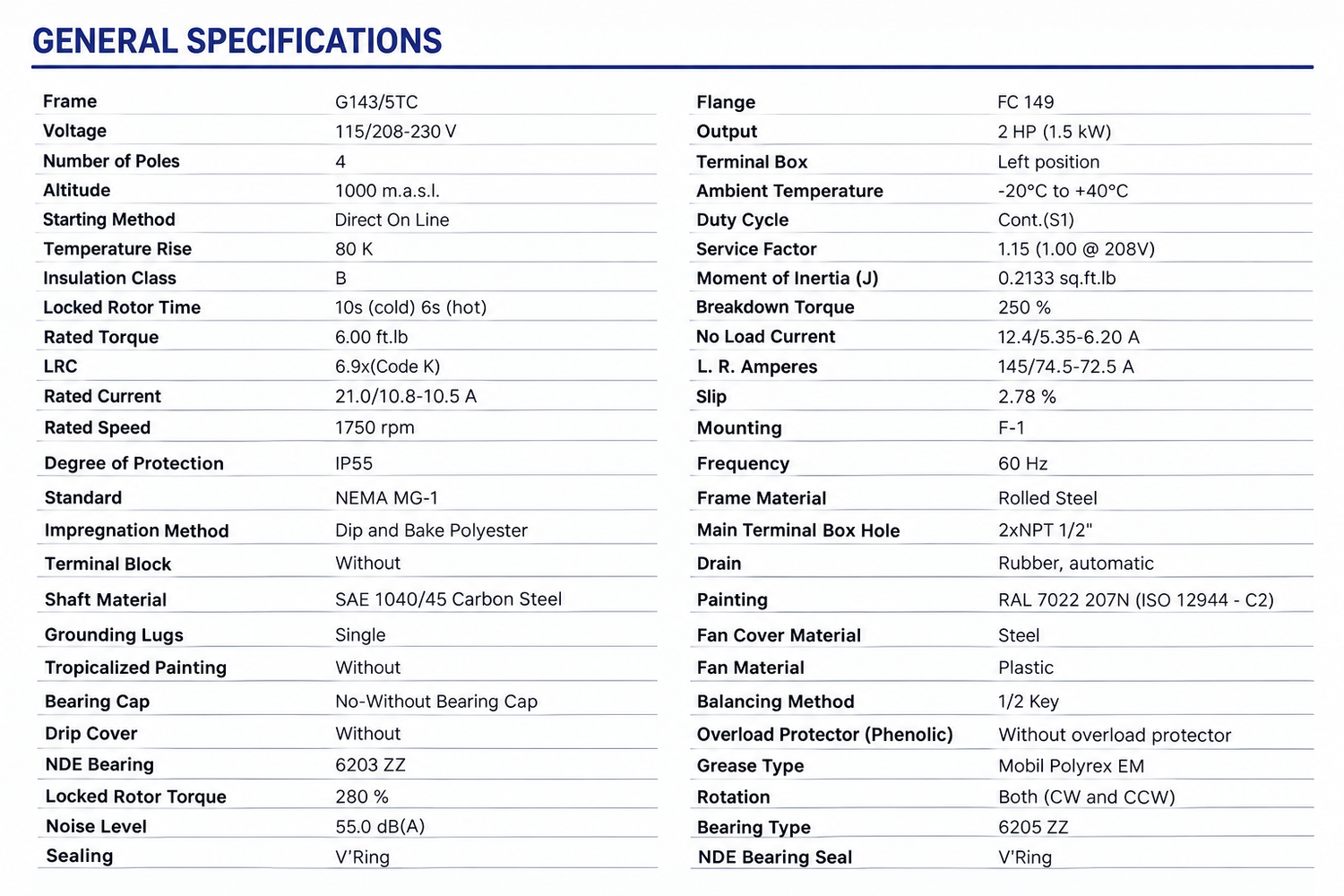

KEY FEATURES

• Model: TC002104

• Product Type: Electric Motors

• Horsepower: 2 Hp (1.5 kW)

• Voltage: 115/208‑230 V

• Speed: 1800 RPM

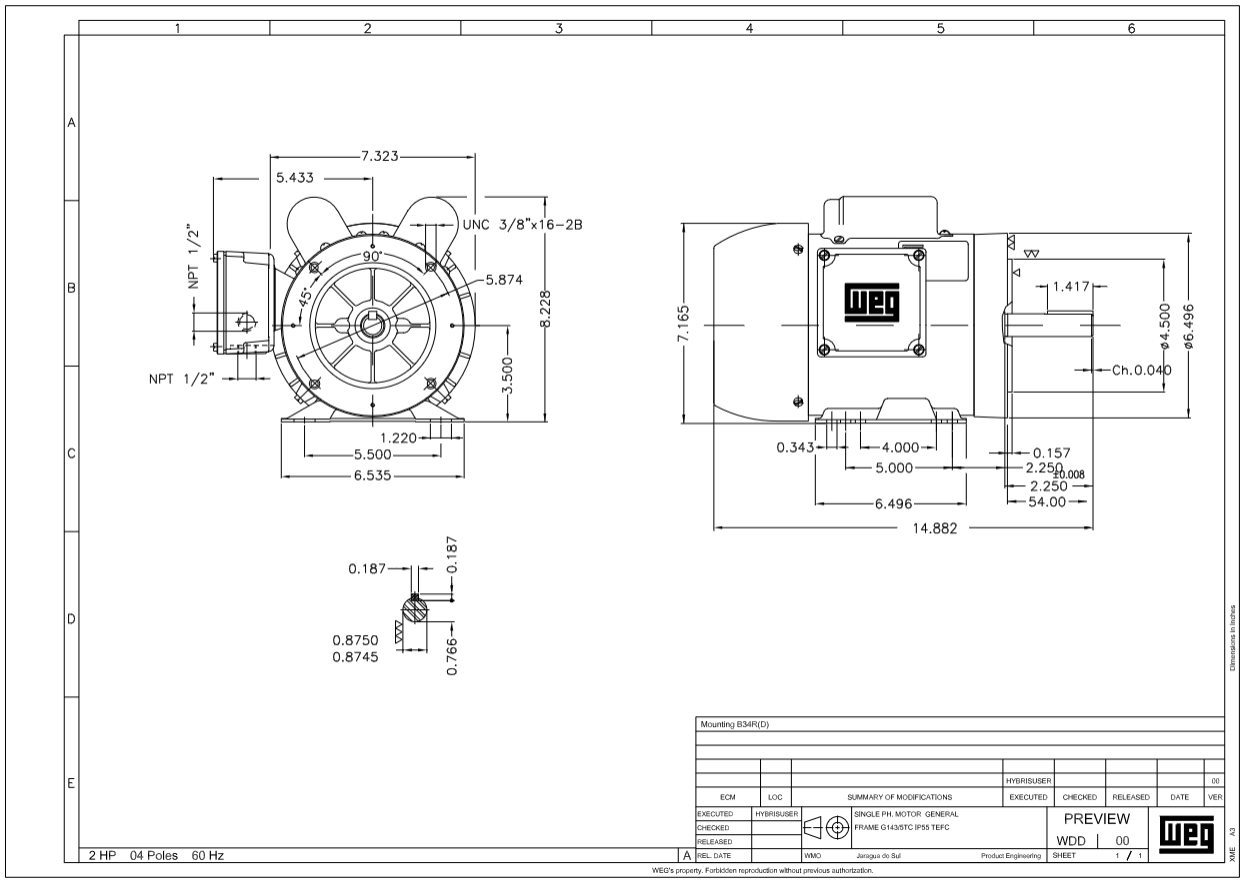

• Frame: G143/5TC

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15 (1.00 @ 208 V)

• Insulation Class: B

• Duty: Continuous (S1)

• Starting Method: Direct On Line

• Locked Rotor Time: 10 s (cold) / 6 s (hot)

• Locked Rotor Torque: 280 %

• Breakdown Torque: 250 %

• Rated Torque: 6.00 ft·lb

• Rated Speed: 1750 RPM

• Rated Current: 21.0 A / 10.8‑10.5 A

• No‑Load Current: 12.4 A / 5.35‑6.20 A

• Locked Rotor Current (LRC): 6.9× (Code K)

• Slip: 2.78 %

• Noise Level: 55.0 dB(A)

• Degree of Protection (IP Code): IP55

• Altitude Rating: 1000 m.a.s.l.

• Ambient Temperature: –20 °C to +40 °C

• Moment of Inertia (J): 0.2133 sq.ft·lb

• Frequency: 60 Hz

• Mounting: F‑1

• Frame Material: Rolled Steel

• Shaft Material: SAE 1040/45 Carbon Steel

• Bearings: 6203 ZZ (NDE), 6205 ZZ

• Sealing: V’Ring

• Flange: FC 149

• Terminal Box: Left position

• Main Terminal Box Hole: 2× NPT 1/2"

• Drain: Rubber, automatic

• Painting: RAL 7022 207N (ISO 12944 – C2)

• Fan Cover Material: Steel

• Fan Material: Plastic

• Balancing Method: 1/2 Key

• Grease Type: Mobil Polyrex EM

• Rotation: Both (CW and CCW)

• Impregnation Method: Dip and Bake Polyester
