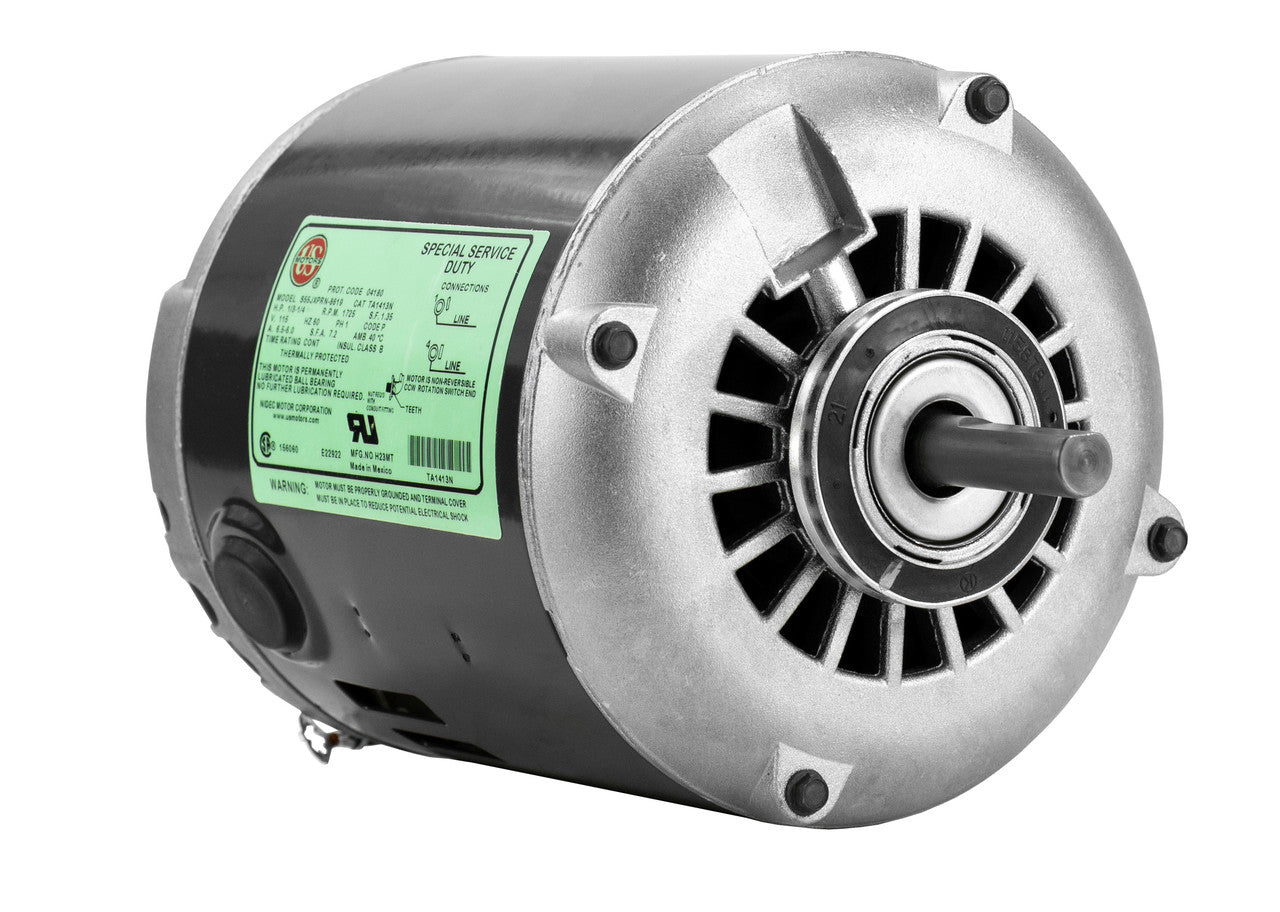

TA1413N, Replacement Circulator Motor , 1/4-1/3Hp, 1725 RPM, 115V, ODP, Frame 48, CWSE

TA1413N, Replacement Circulator Motor , 1/4-1/3Hp, 1725 RPM, 115V, ODP, Frame 48, CWSE

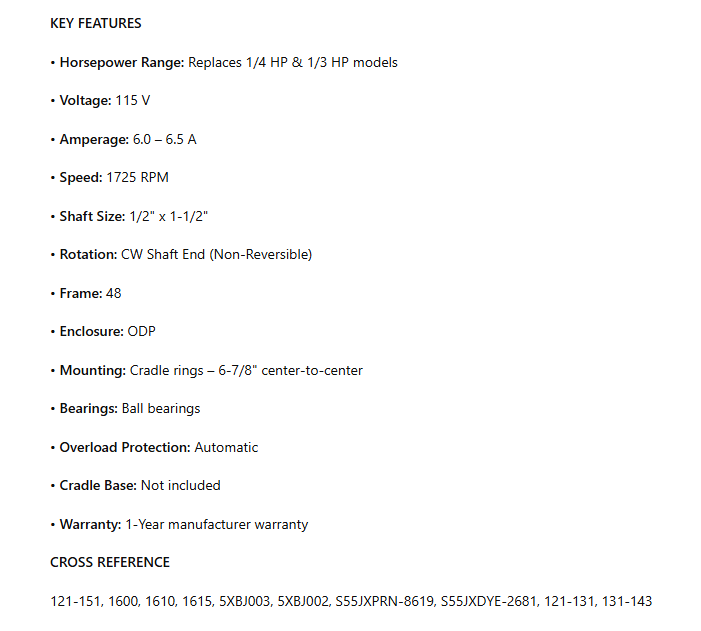

KEY FEATURES

• Horsepower Range: Replaces 1/4 HP & 1/3 HP models

• Voltage: 115 V

• Amperage: 6.0 – 6.5 A

• Speed: 1725 RPM

• Shaft Size: 1/2" x 1-1/2"

• Rotation: CW Shaft End (Non-Reversible)

• Frame: 48

• Enclosure: ODP

• Mounting: Cradle rings – 6-7/8" center-to-center

• Bearings: Ball bearings

• Overload Protection: Automatic

• Cradle Base: Not included

• Warranty: 1-Year manufacturer warranty

CROSS REFERENCE

121-151, 1600, 1610, 1615, 5XBJ003, 5XBJ002, S55JXPRN-8619, S55JXDYE-2681, 121-131, 131-143
