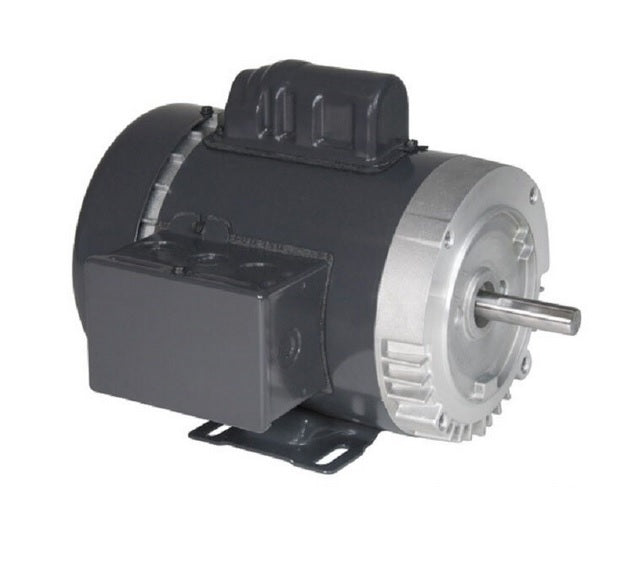

T34C1JC, General Purpose Capacitor Start, 3/4Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56C, C063HZF5210015B

T34C1JC, General Purpose Capacitor Start, 3/4Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56C, C063HZF5210015B

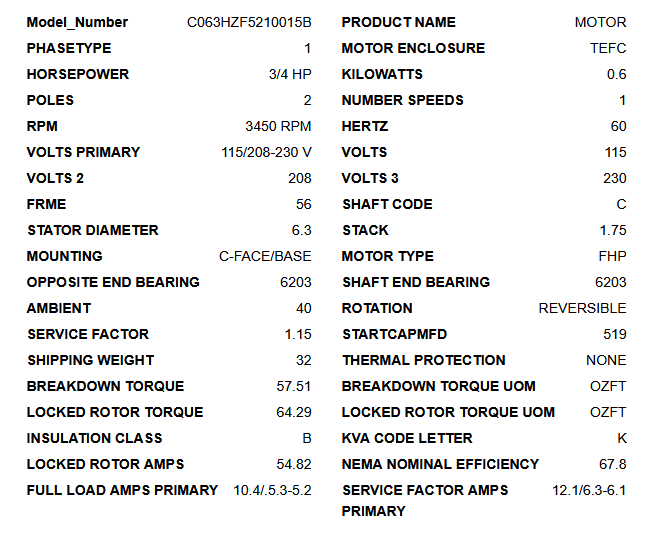

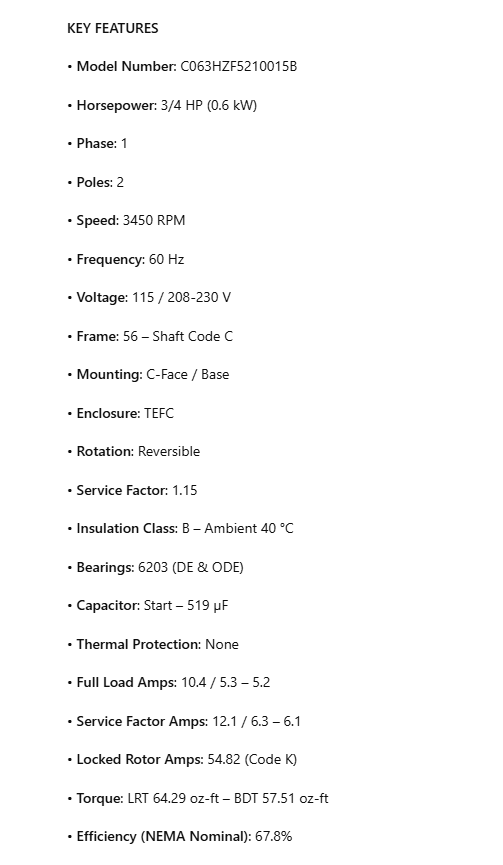

KEY FEATURES

• Model Number: C063HZF5210015B

• Horsepower: 3/4 HP (0.6 kW)

• Phase: 1

• Poles: 2

• Speed: 3450 RPM

• Frequency: 60 Hz

• Voltage: 115 / 208-230 V

• Frame: 56 – Shaft Code C

• Mounting: C-Face / Base

• Enclosure: TEFC

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: B – Ambient 40 °C

• Bearings: 6203 (DE & ODE)

• Capacitor: Start – 519 µF

• Thermal Protection: None

• Full Load Amps: 10.4 / 5.3 – 5.2

• Service Factor Amps: 12.1 / 6.3 – 6.1

• Locked Rotor Amps: 54.82 (Code K)

• Torque: LRT 64.29 oz-ft – BDT 57.51 oz-ft

• Efficiency (NEMA Nominal): 67.8%
