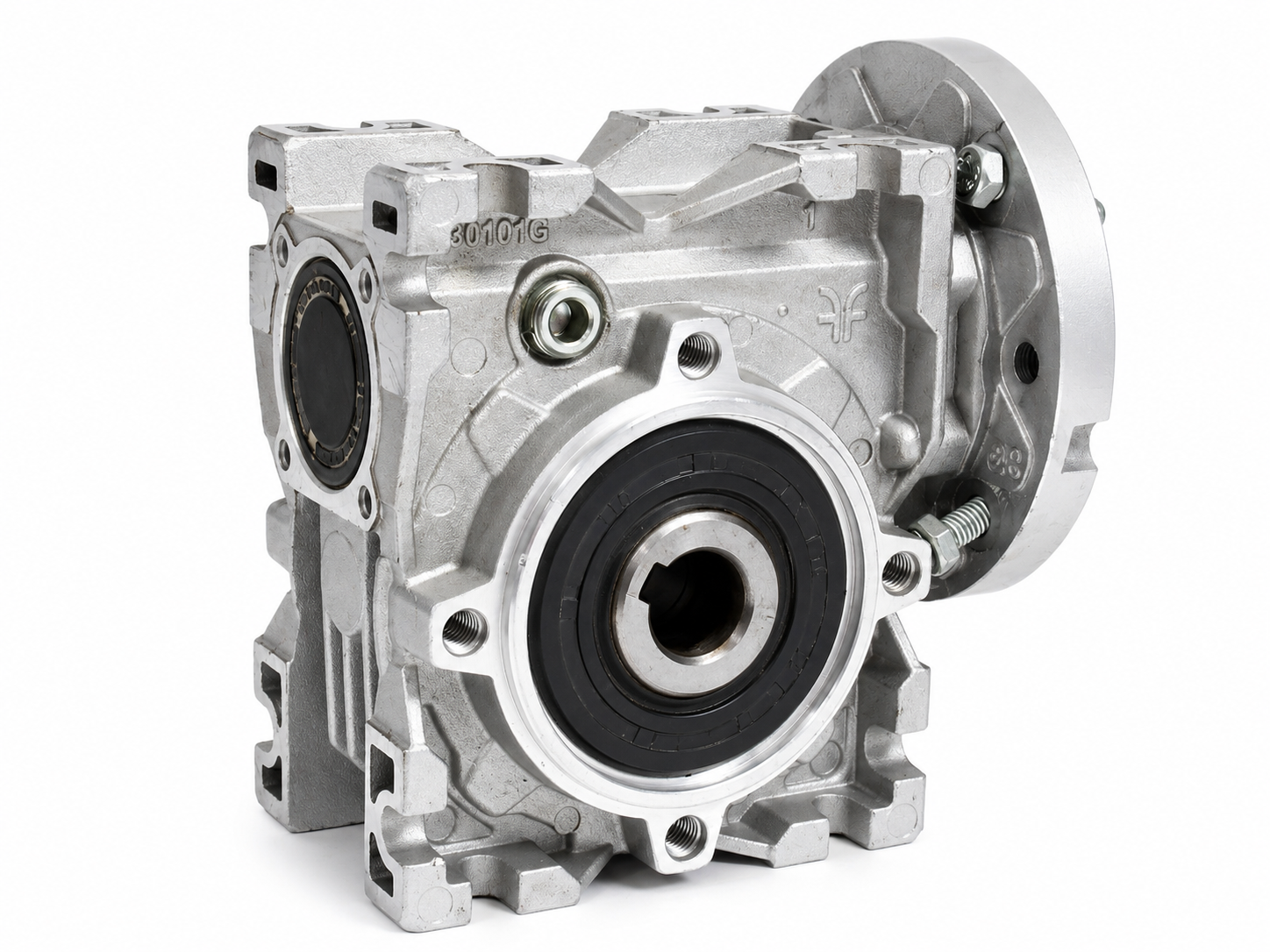

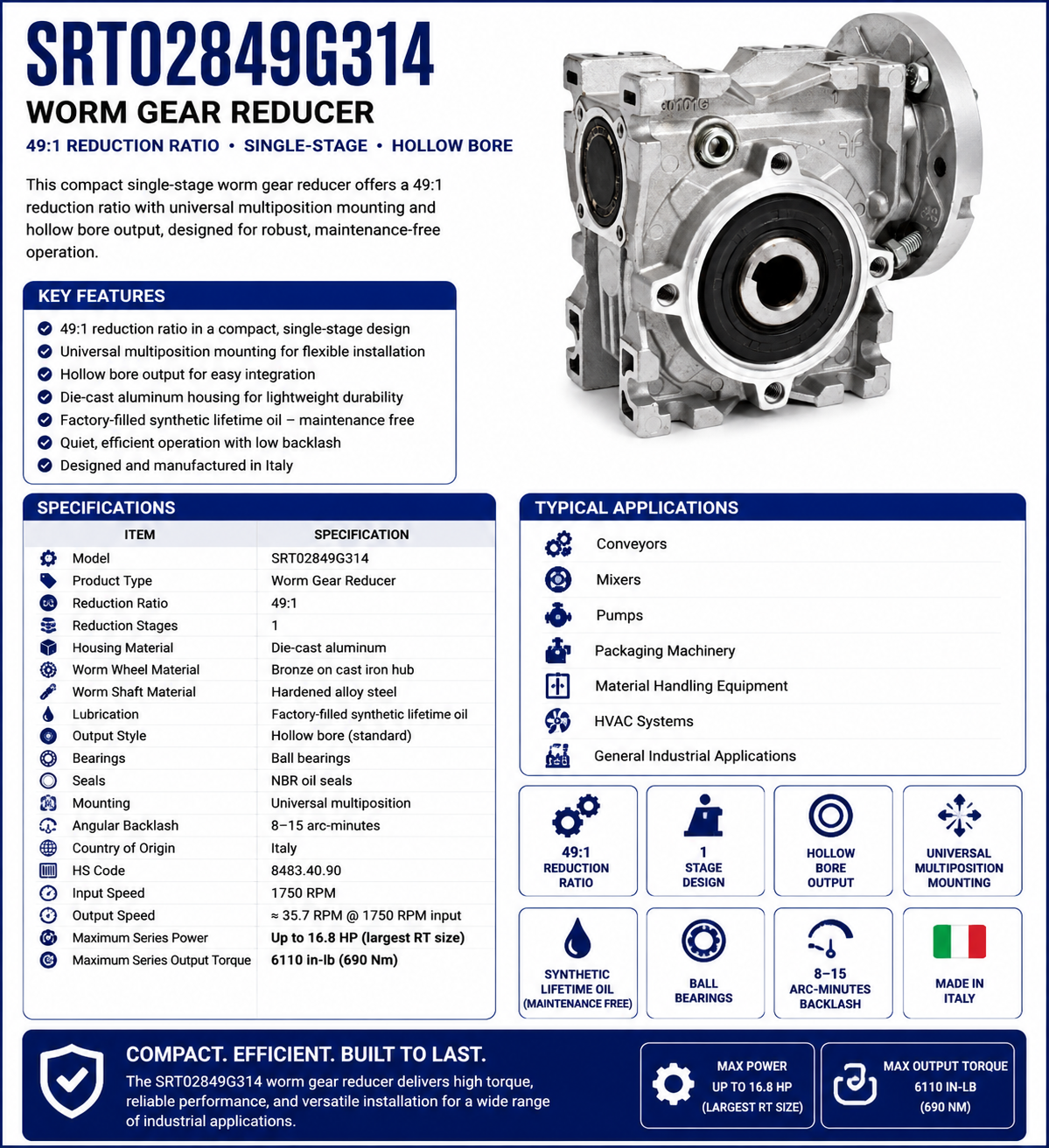

SRT02849G314, Worm Gearbox Reducer SRT 28 49:1 Ratio Size 028

This compact single-stage worm gear reducer offers a 49:1 reduction ratio with universal multiposition mounting and hollow bore output, designed for robust, maintenance-free operation.

KEY FEATURES

• Model: SRT02849G314

• Product Type: Worm Gear Reducer

• Reduction Ratio: 49:1

• Reduction Stages: 1

• Housing Material: Die‑cast aluminum

• Worm Wheel Material: Bronze on cast iron hub

• Worm Shaft Material: Hardened alloy steel

• Lubrication: Factory‑filled synthetic lifetime oil

• Output Style: Hollow bore (standard)

• Bearings: Ball bearings

• Seals: NBR oil seals

• Mounting: Universal multiposition

• Angular Backlash: 8–15 arc‑minutes

• Country of Origin: Italy

• HS Code: 8483.40.90

• Input Speed: 1750 RPM

• Output Speed: ≈ 35.7 RPM @ 1750 RPM input

• Maximum Series Power: Up to 16.8 HP (largest RT size)

• Maximum Series Output Torque: 6110 in‑lb (690 Nm)
