MOOG ANIMATICS  |  SKU : EMN-015973

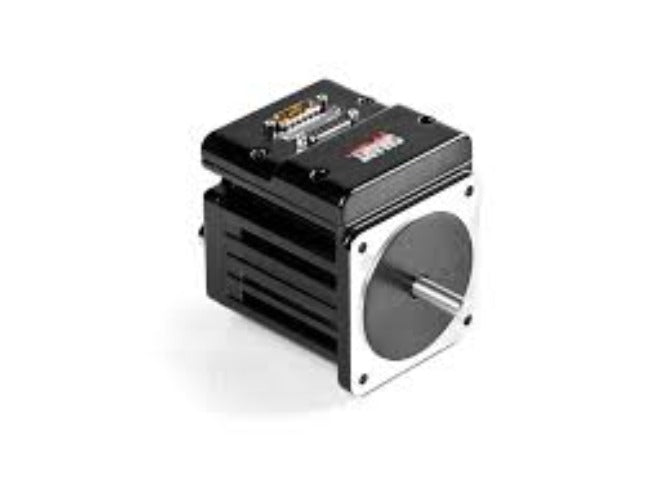

SM34165DT, Moog Animatics, 615W, 8.9 V/kRPM, 5100 Rpm, 12.83 lb/inch

$5,065.20

SM34165DT, Moog Animatics, 615W, 8.9 V/kRPM, 5100 Rpm, 12.83 lb/inch est en rupture de stock et sera expédié dès qu’il sera de retour en stock.

shipping

Estimation des frais de livraison

Description

SM3615DT, MOOG ANIMATICS,

Built on Order



SM34165DT
Continuous Torque 12.83 in-lb
205 oz-in
1.45 N-m
Peak Torque 30.00 in-lb
480 oz-in
3.39 N-m
Nominal Continuous Power 615 Watts
No Load Speed 5,100 RPM
Max. Continuous Current* @ 4500 RPM 16.93 Amps
Peak Power @ 3400 RPM 930 Watts
Voltage Constant 8.9 V/kRPM
Inductance 0.32 mH
Encoder Resolution 8,000 Counts/Rev
Rotor Inertia 0.0142 oz-in-sec2
10.031 10-5 Kg-m2
Weight 5.5 lb
2.49 kg
Shaft Diameter 0.500 in
12.70 mm
Shaft, Radial Load 30 lb
13.61 kg
Shaft, Axial Thrust Load 3 lb
1.36 kg



PIN MAIN POWER Specifications: Notes
1 I/O – 6 GP or “G” command;
for -CDS7, CAN-L only		 25mAmp Sink or Source
10Bit 0-5VDC A/D		 Redundant connection on I/O connector
2 +5VDC out;
for -CDS7, CAN-H only		 50mAmps Max (total)
3 RS-232 Transmit Channel(0) 115.2KBaud Max
4 RS-232 Receive Channel(0) 115.2KBaud Max
5 SIG Ground
A1 Main Power: +20-48VDC
A2 Ground
