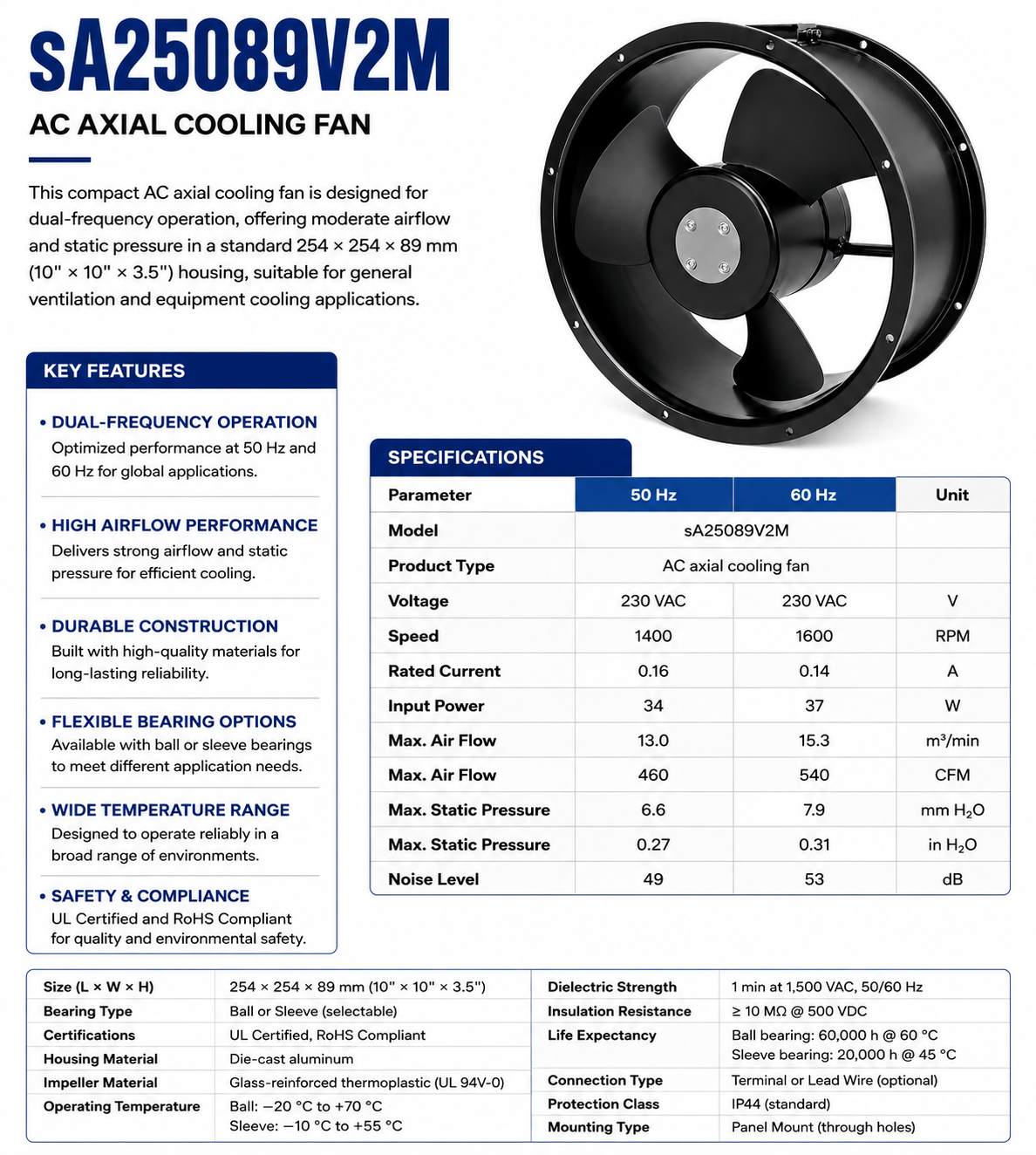

sA25089V2M, AC Axial Fan, 1400/1600 RPM, 230 VAC, 50/60 Hz, Ball or Sleeve Bearing

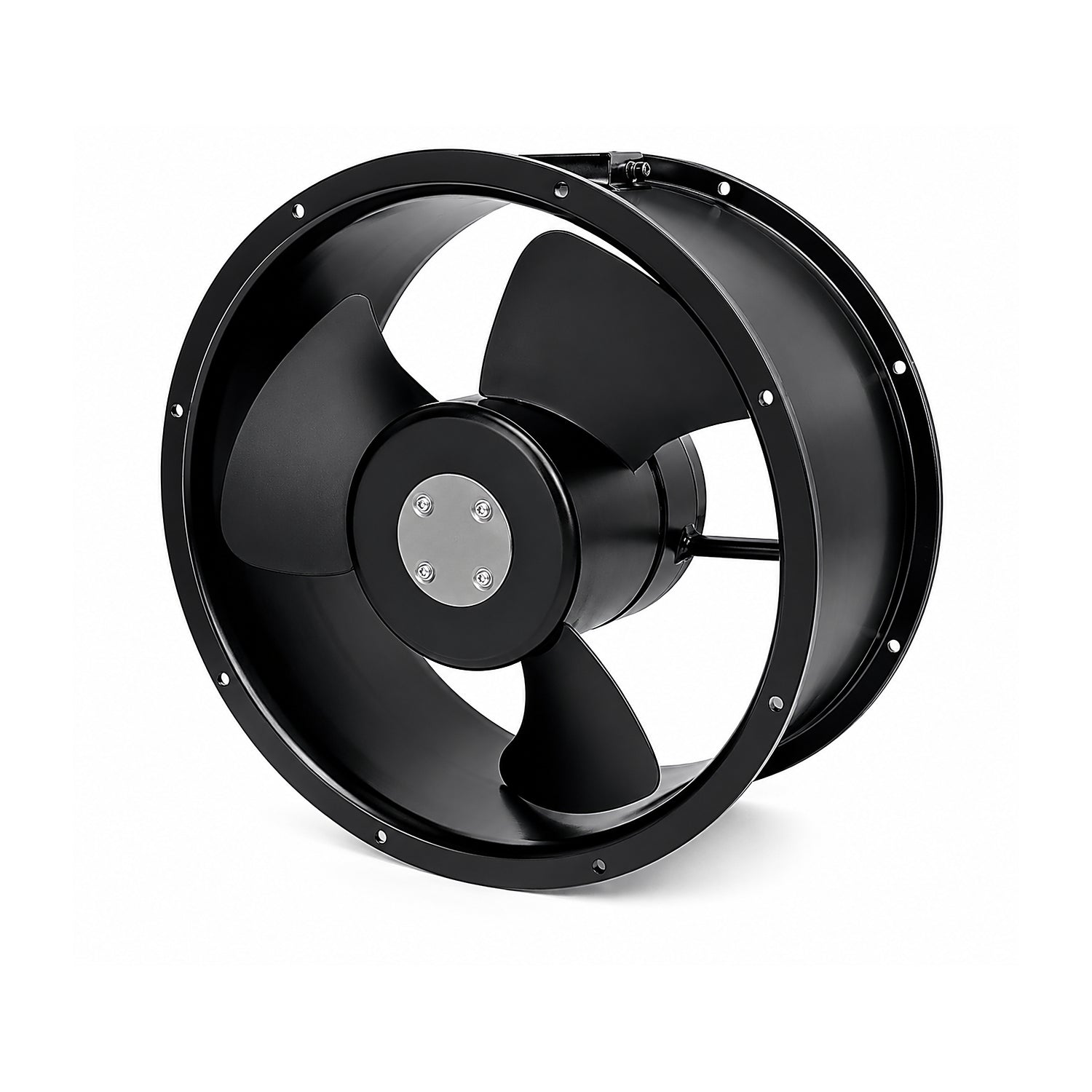

This compact AC axial cooling fan is designed for dual-frequency operation, offering moderate airflow and static pressure in a standard 254 × 254 × 89 mm (10" × 10" × 3.5") housing, suitable for general ventilation and equipment cooling applications.

KEY FEATURES

• Model: sA25089V2M

• Product Type: AC axial cooling fan

• Voltage: 230 VAC @ 50 Hz / 230 VAC @ 60 Hz

• Speed: 1400 RPM @ 50 Hz / 1600 RPM @ 60 Hz

• Rated Current: 0.16 A @ 50 Hz / 0.14 A @ 60 Hz

• Input Power: 34 W @ 50 Hz / 37 W @ 60 Hz

• Max. Air Flow: 13.0 m³/min @ 50 Hz / 15.3 m³/min @ 60 Hz

• Max. Air Flow: 460 CFM @ 50 Hz / 540 CFM @ 60 Hz

• Max. Static Pressure: 6.6 mm H₂O @ 50 Hz / 7.9 mm H₂O @ 60 Hz

• Max. Static Pressure: 0.27 in H₂O @ 50 Hz / 0.31 in H₂O @ 60 Hz

• Noise Level: 49 dB @ 50 Hz / 53 dB @ 60 Hz

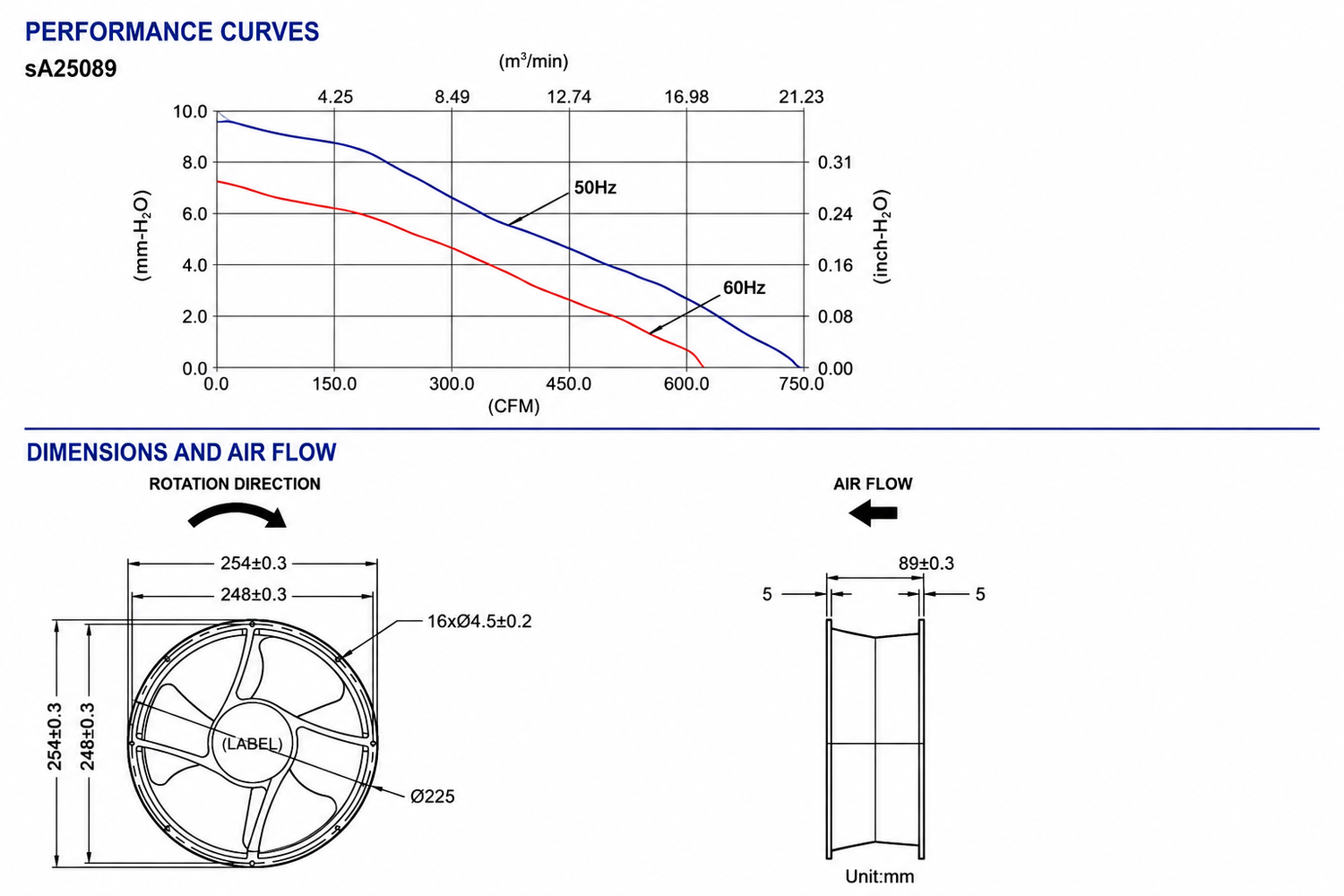

• Size (L×W×H): 254 × 254 × 89 mm (10" × 10" × 3.5")

• Bearing Type: Ball or Sleeve (selectable)

• Certifications: UL Certified, RoHS Compliant

• Housing Material: Die‑cast aluminum

• Impeller Material: Glass‑reinforced thermoplastic (UL 94V‑0)

• Operating Temperature: Ball: –20 °C to +70 °C; Sleeve: –10 °C to +55 °C

• Dielectric Strength: 1 min at 1,500 VAC, 50/60 Hz

• Insulation Resistance: ≥ 10 MΩ @ 500 VDC

• Life Expectancy: Ball bearing: 60,000 h @ 60 °C; Sleeve bearing: 20,000 h @ 45 °C
