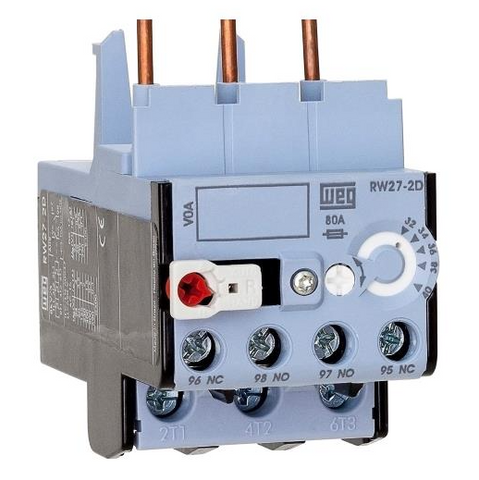

RW27-2D3-D028, Overload Relay, 3/p, 1.8-2.8A, USED ONLY FOR CWB

RW27-2D3-D028, Overload Relay, 3/p, 1.8-2.8A, USED ONLY FOR CWB

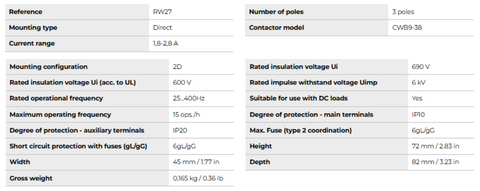

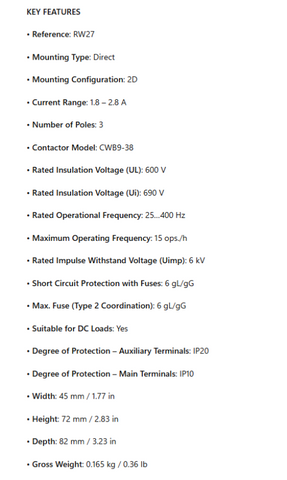

KEY FEATURES

• Reference: RW27

• Mounting Type: Direct

• Mounting Configuration: 2D

• Current Range: 1.8 – 2.8 A

• Number of Poles: 3

• Contactor Model: CWB9-38

• Rated Insulation Voltage (UL): 600 V

• Rated Insulation Voltage (Ui): 690 V

• Rated Operational Frequency: 25…400 Hz

• Maximum Operating Frequency: 15 ops./h

• Rated Impulse Withstand Voltage (Uimp): 6 kV

• Short Circuit Protection with Fuses: 6 gL/gG

• Max. Fuse (Type 2 Coordination): 6 gL/gG

• Suitable for DC Loads: Yes

• Degree of Protection – Auxiliary Terminals: IP20

• Degree of Protection – Main Terminals: IP10

• Width: 45 mm / 1.77 in

• Height: 72 mm / 2.83 in

• Depth: 82 mm / 3.23 in

• Gross Weight: 0.165 kg / 0.36 lb
