RF00565, 5Hp, 1200RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T
RF00565, 5Hp, 1200RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
RF00565, 5Hp, 1200RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T
Description
Description

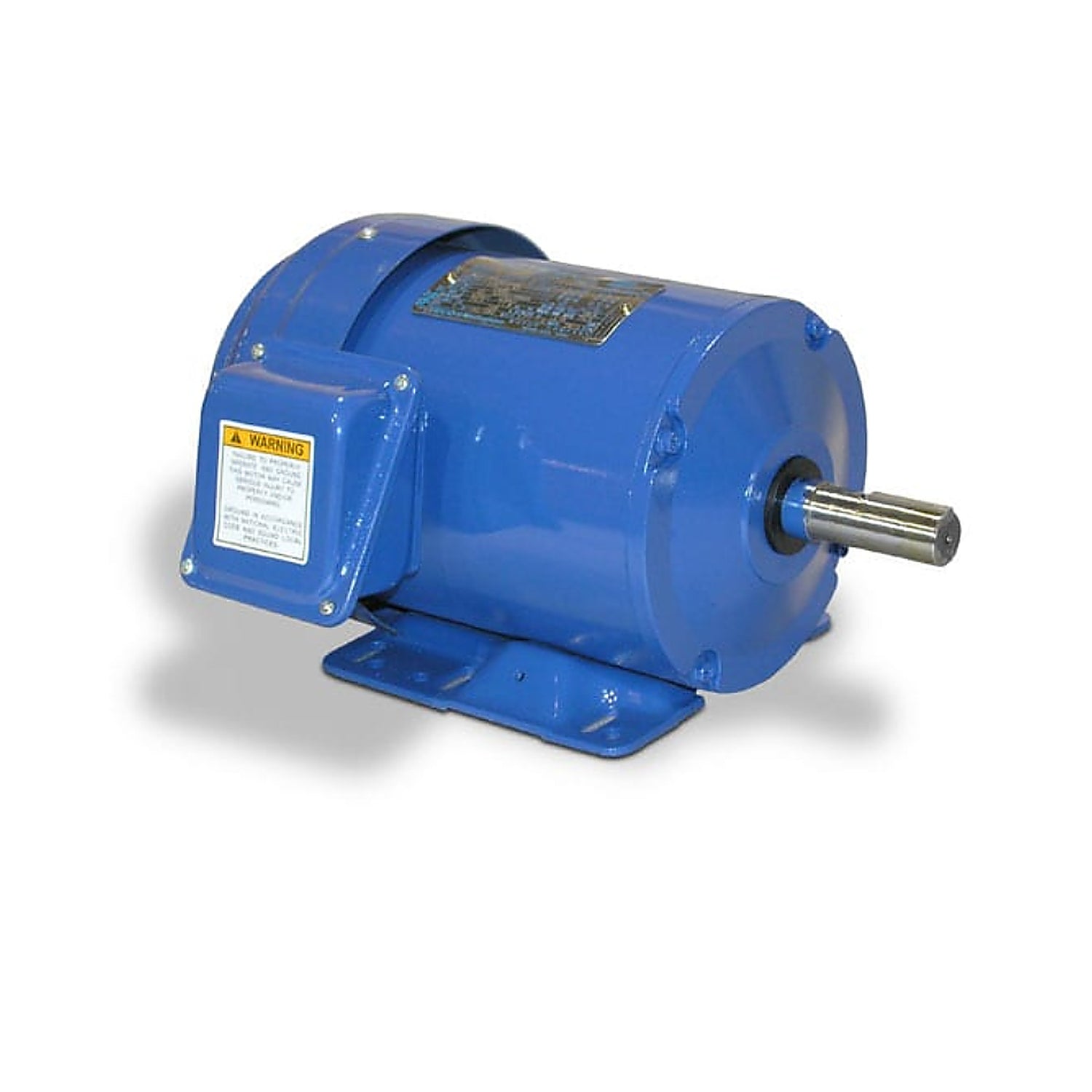

This general-purpose three-phase AC motor is designed for continuous-duty industrial applications, offering high-efficiency performance in a compact 215T rolled-steel frame with totally enclosed fan-cooled construction.
KEY FEATURES
• Model: RF00565
• Horsepower: 5 Hp
• Speed: 1200 RPM
• Voltage: 575 V
• Phase: 3 Phase
• Frame: 215T
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Service Factor: 1.15
• Insulation Class: F
• Efficiency: 90.2%
• Full Load Current: 5.65 A
• Bearings: Drive End 6208ZZ; Non Drive End 6206ZZ
• Duty: Continuous
• Ambient Rating: 40°C
Downloads
