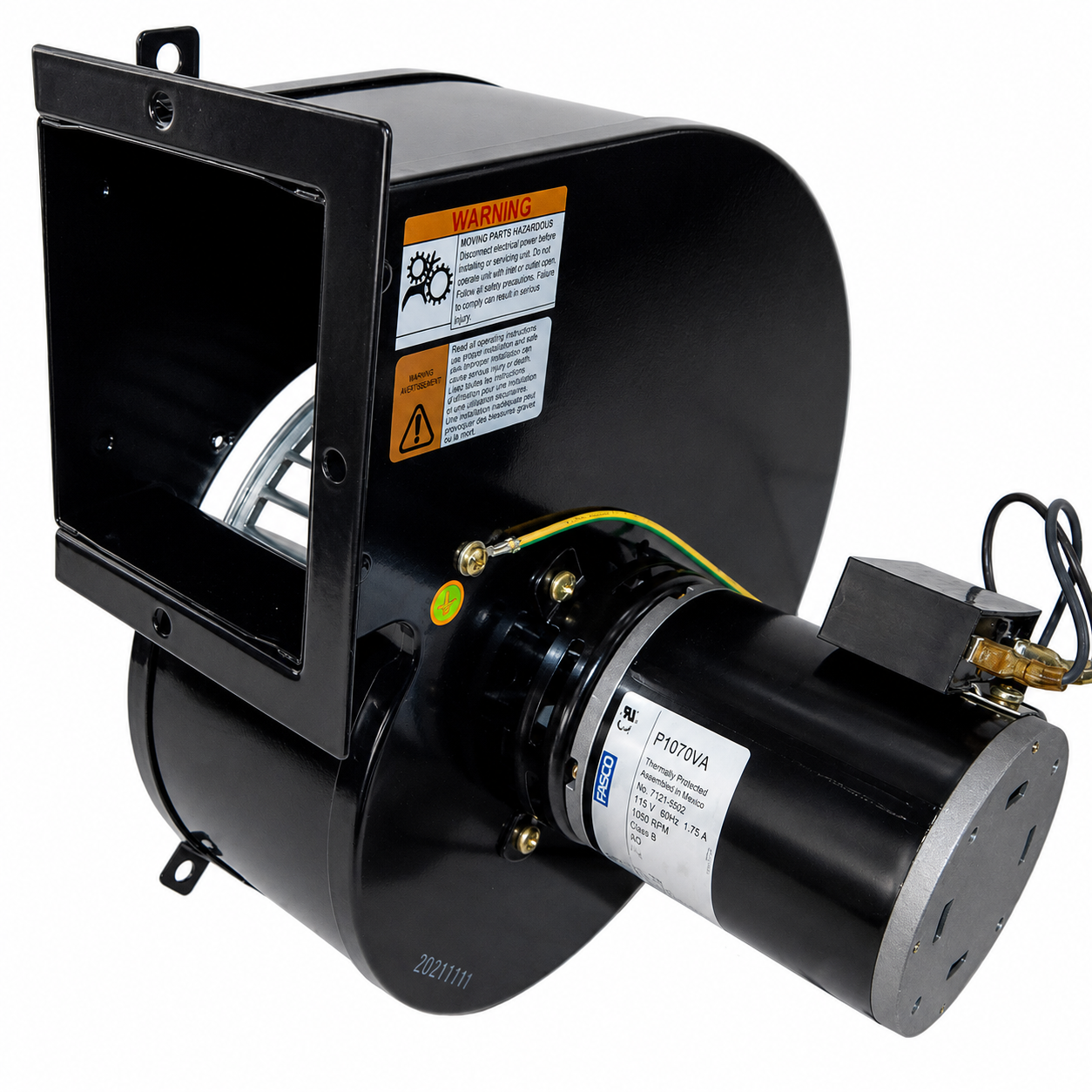

PTDV4, 1/15 Hp, 1640 RPM, 115 V, Direct OEM Interchange Replacement High Temp. Blower

This high‑temperature centrifugal blower assembly is designed as a direct OEM interchange replacement for legacy models, providing reliable airflow under elevated inlet air temperatures up to 450 °F. It features a compact direct‑drive PSC motor with automatic overload protection and ball‑bearing construction, suitable for multi‑position mounting in HVAC and furnace applications.

KEY FEATURES

• Model: 1TDV4

• Product Type: BLOWER ASSEMBLY

• Horsepower: 1/15 Hp

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Speed: 1640 RPM @ 60 Hz

• Enclosure: Open (PSC motor)

• Mounting: All‑Position

• Bearings: Ball Bearings

• Insulation Class: B

• Automatic Overload Protection: Included

• Max Airflow: 310 CFM

• Max Inlet Temperature: 450 °F

• Max Ambient Temperature: 104 °F

• Certifications: cULus Approved

The high‑temperature capability and direct OEM interchange design make this blower ideal for replacing discontinued units in heating and ventilation systems while maintaining performance under demanding thermal conditions.

CROSS REFERENCE

• 4YJ33

• 4C943

• 7090-2379 / 7064-1678
