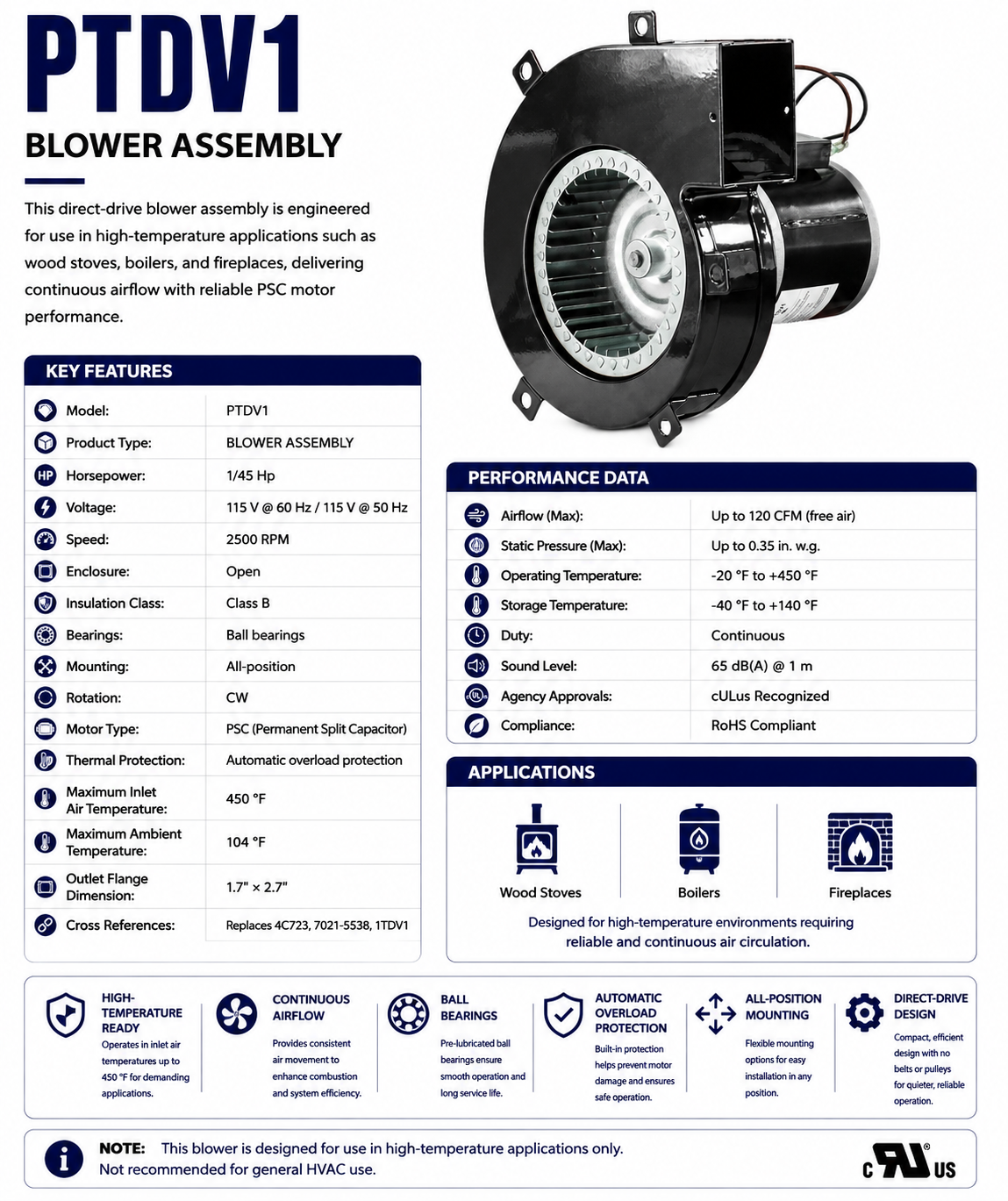

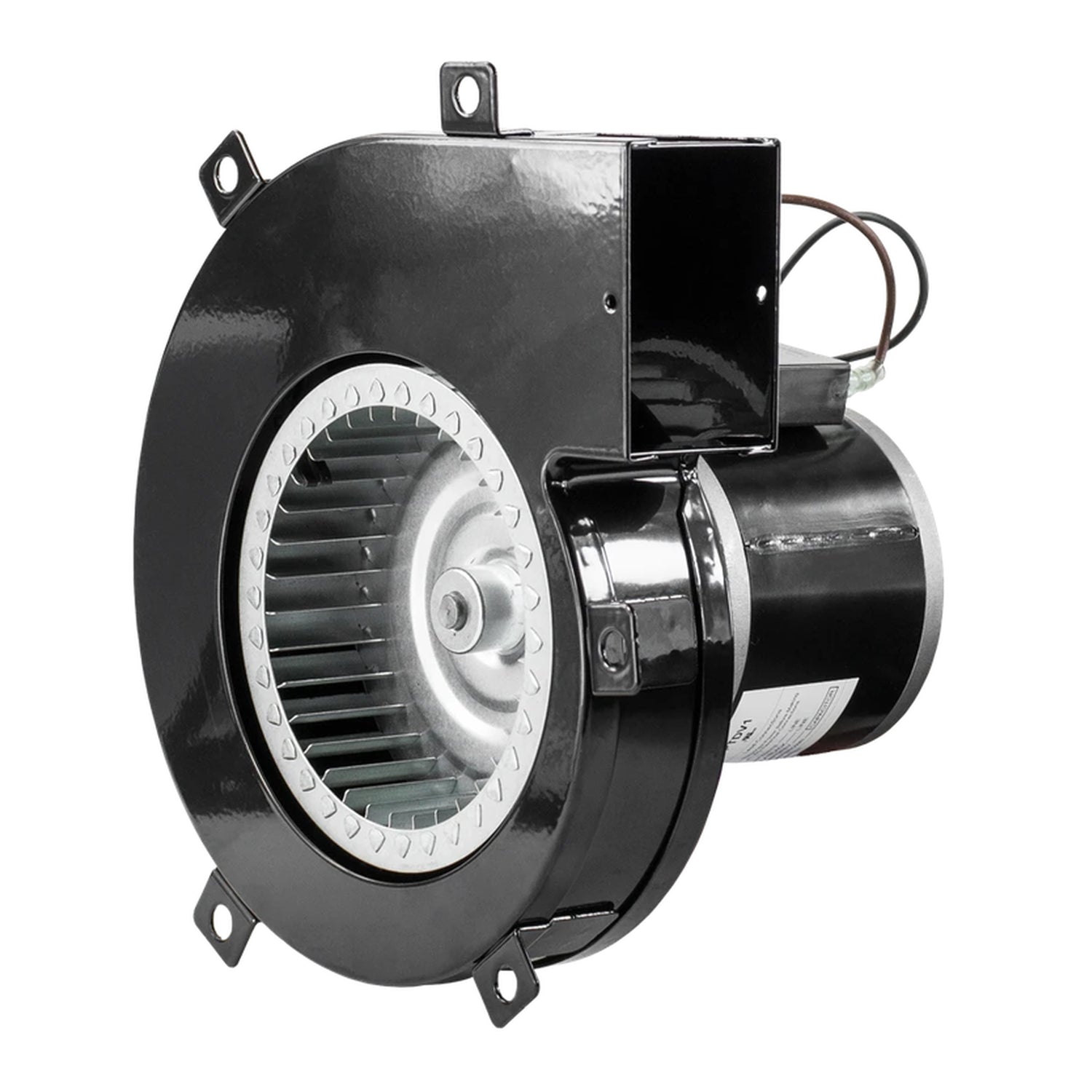

PTDV1, 1/45 Hp, 2500 RPM, 115 V, 1 Ph, PSC, Open Enclosure, Direct‑Drive Blower

This direct‑drive blower assembly is engineered for use in high‑temperature applications such as wood stoves, boilers, and fireplaces, delivering continuous airflow with reliable PSC motor performance.

KEY FEATURES

• Model: PTDV1

• Product Type: BLOWER ASSEMBLY

• Horsepower: 1/45 Hp

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Speed: 2500 RPM

• Enclosure: Open

• Insulation Class: Class B

• Bearings: Ball bearings

• Mounting: All‑position

• Rotation: CW

• Motor Type: PSC (Permanent Split Capacitor)

• Thermal Protection: Automatic overload protection

• Maximum Inlet Air Temperature: 450 °F

• Maximum Ambient Temperature: 104 °F

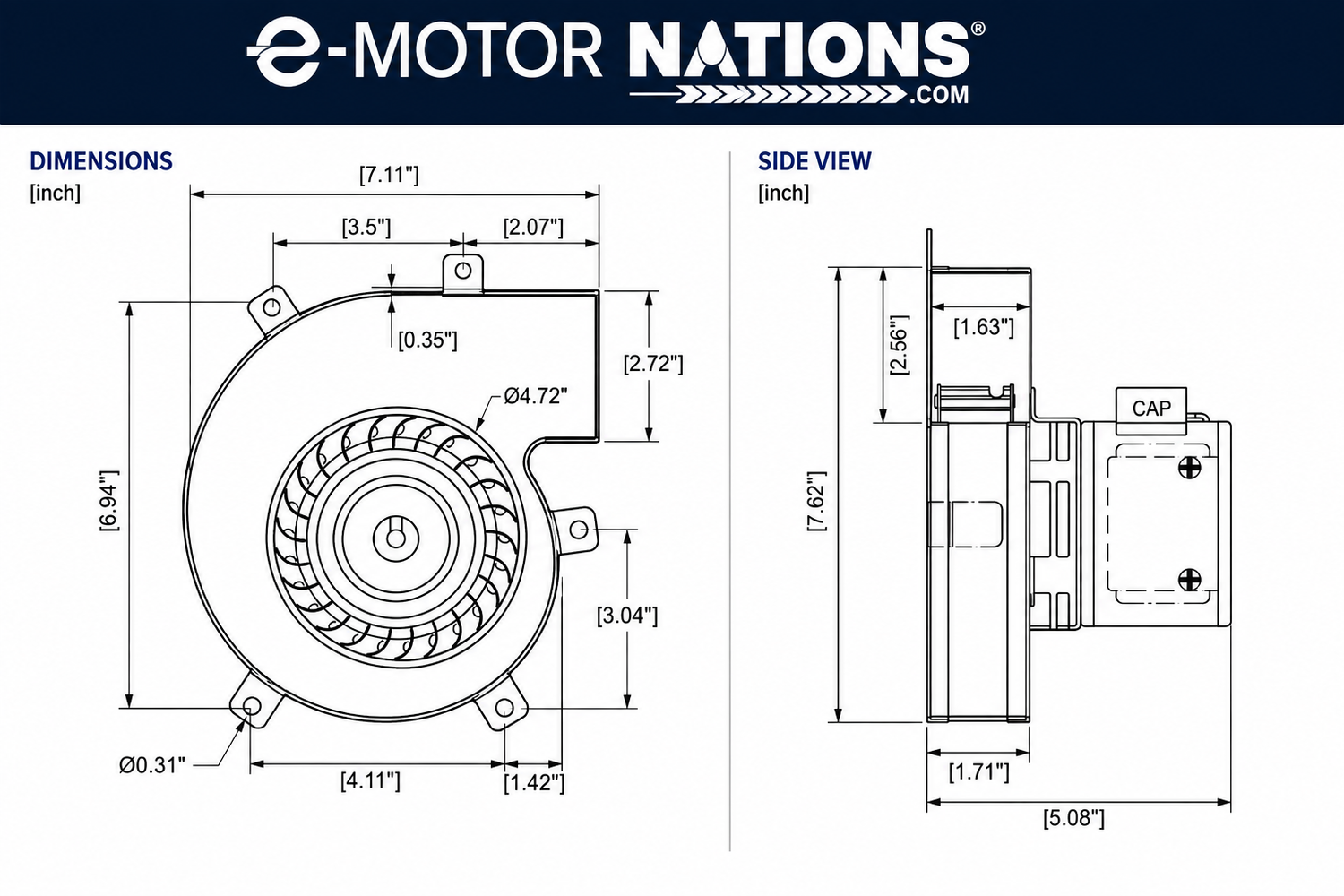

• Outlet Flange Dimension: 1.7" × 2.7"

• Cross References: Replaces 4C723, 7021‑5538, 1TDV1,
