Description
Description

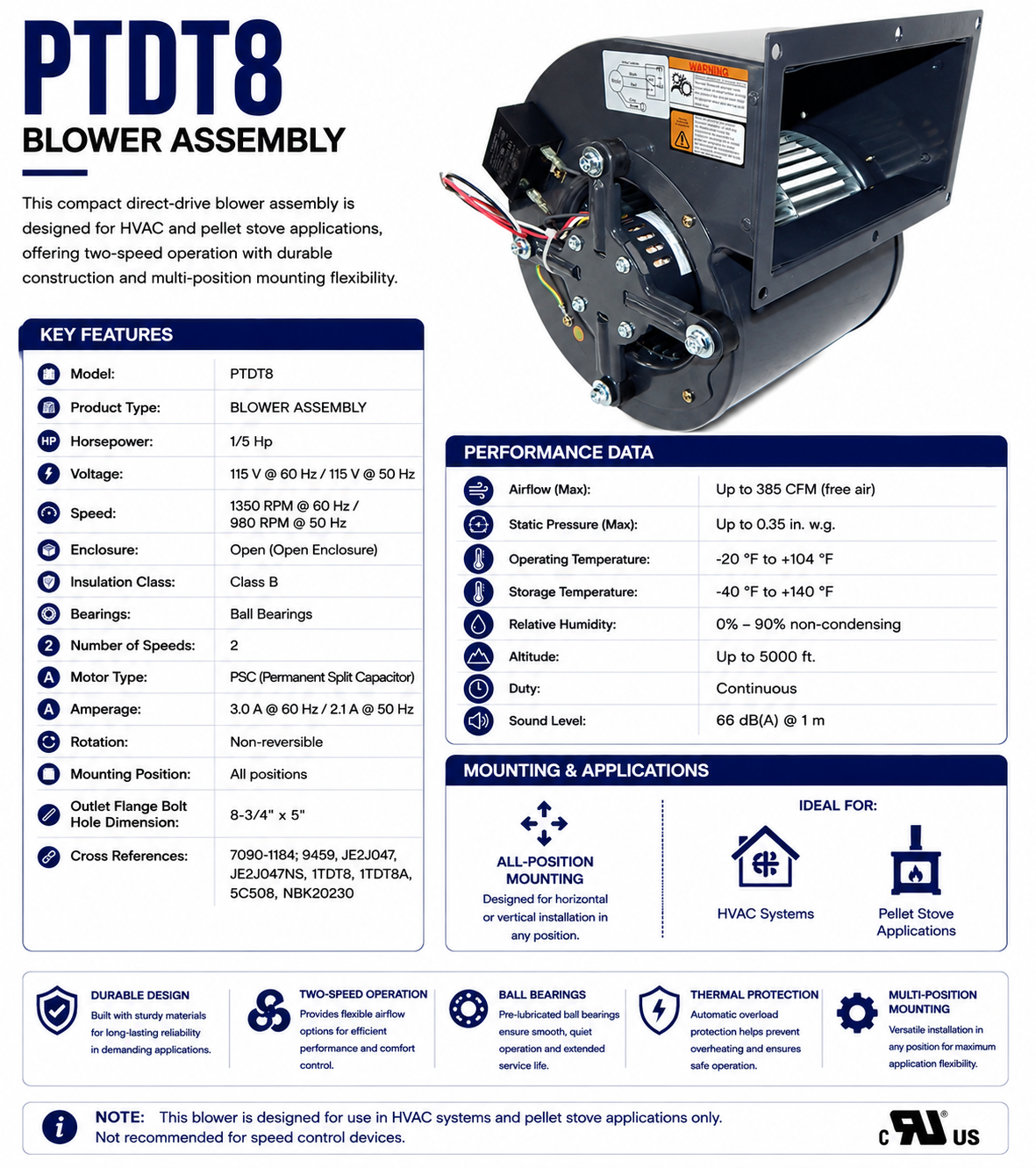

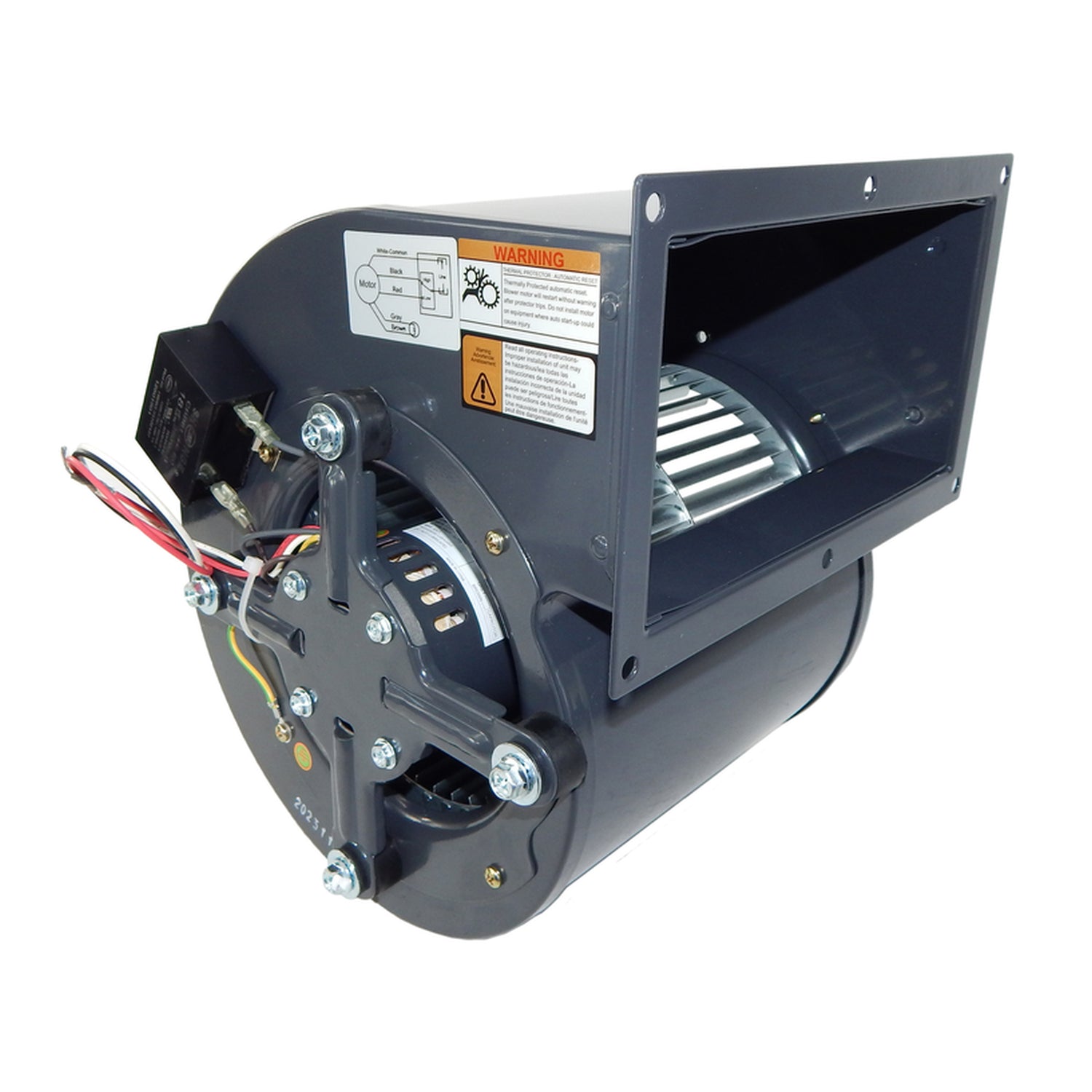

This compact direct-drive blower assembly is designed for HVAC and pellet stove applications, offering two-speed operation with durable construction and multi-position mounting flexibility.
KEY FEATURES
• Model: PTDT8
• Product Type: BLOWER ASSEMBLY
• Horsepower: 1/5 Hp
• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz
• Speed: 1350 RPM @ 60 Hz / 980 RPM @ 50 Hz
• Enclosure: Open (Open Enclosure)
• Insulation Class: Class B
• Bearings: Ball Bearings
• Number of Speeds: 2
• Motor Type: PSC (Permanent Split Capacitor)
• Amperage: 3.0 A @ 60 Hz / 2.1 A @ 50 Hz
• Rotation: Non‑reversible
• Mounting Position: All positions

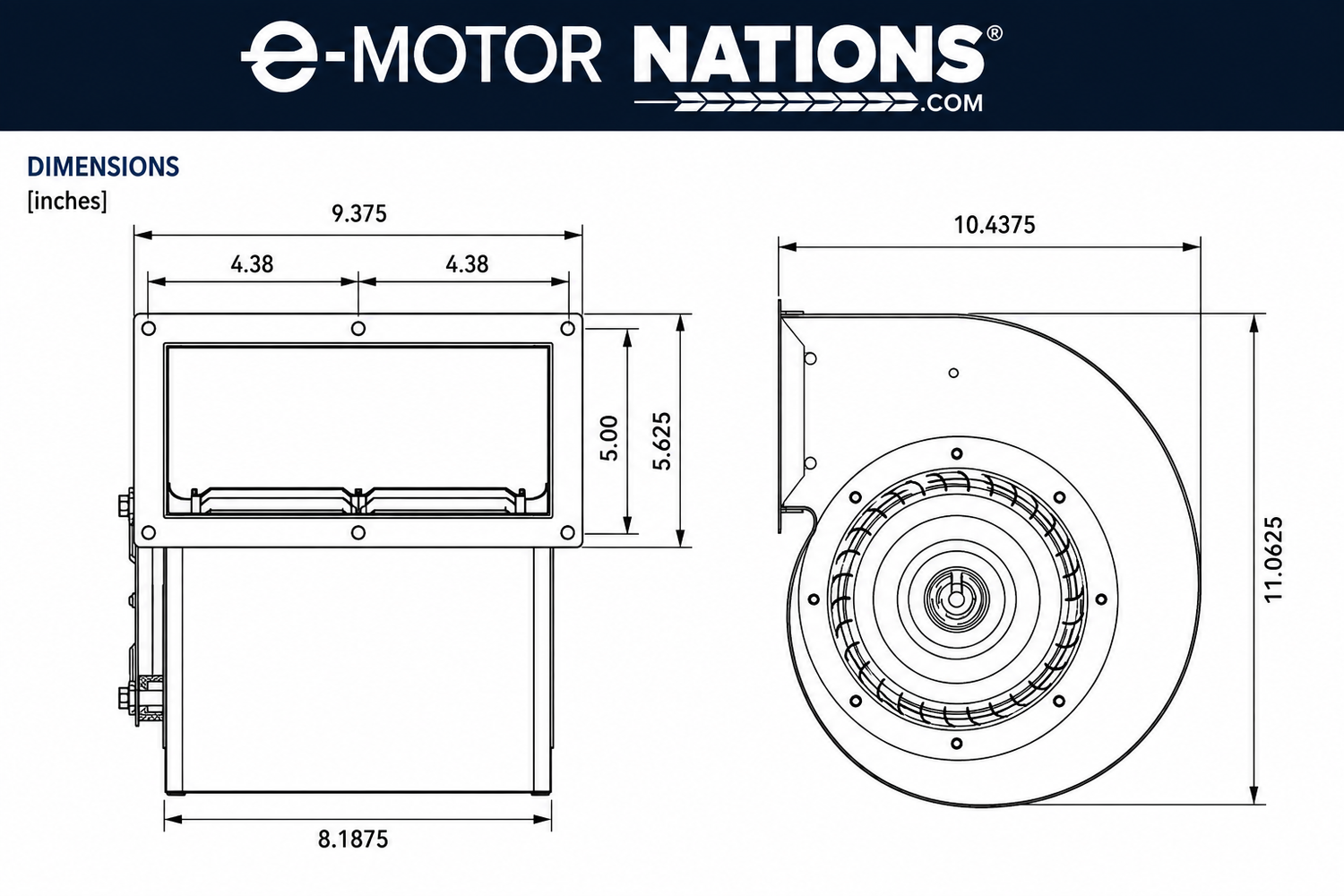

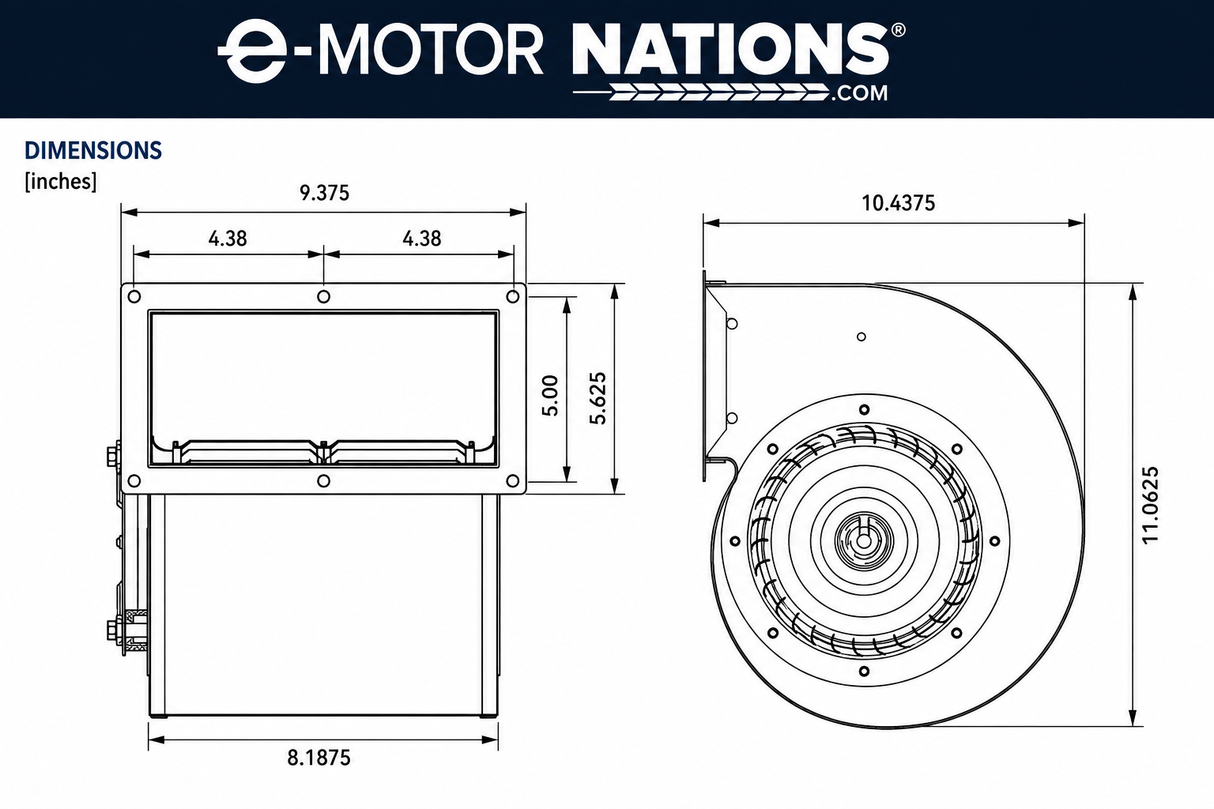

• Outlet Flange Bolt Hole Dimension: 8‑3/4" × 5"
• Cross References: 7090‑1184; 9459, JE2J047, JE2J047NS, 1TDT8, 1TDT8A, 5C508, NBK20230
