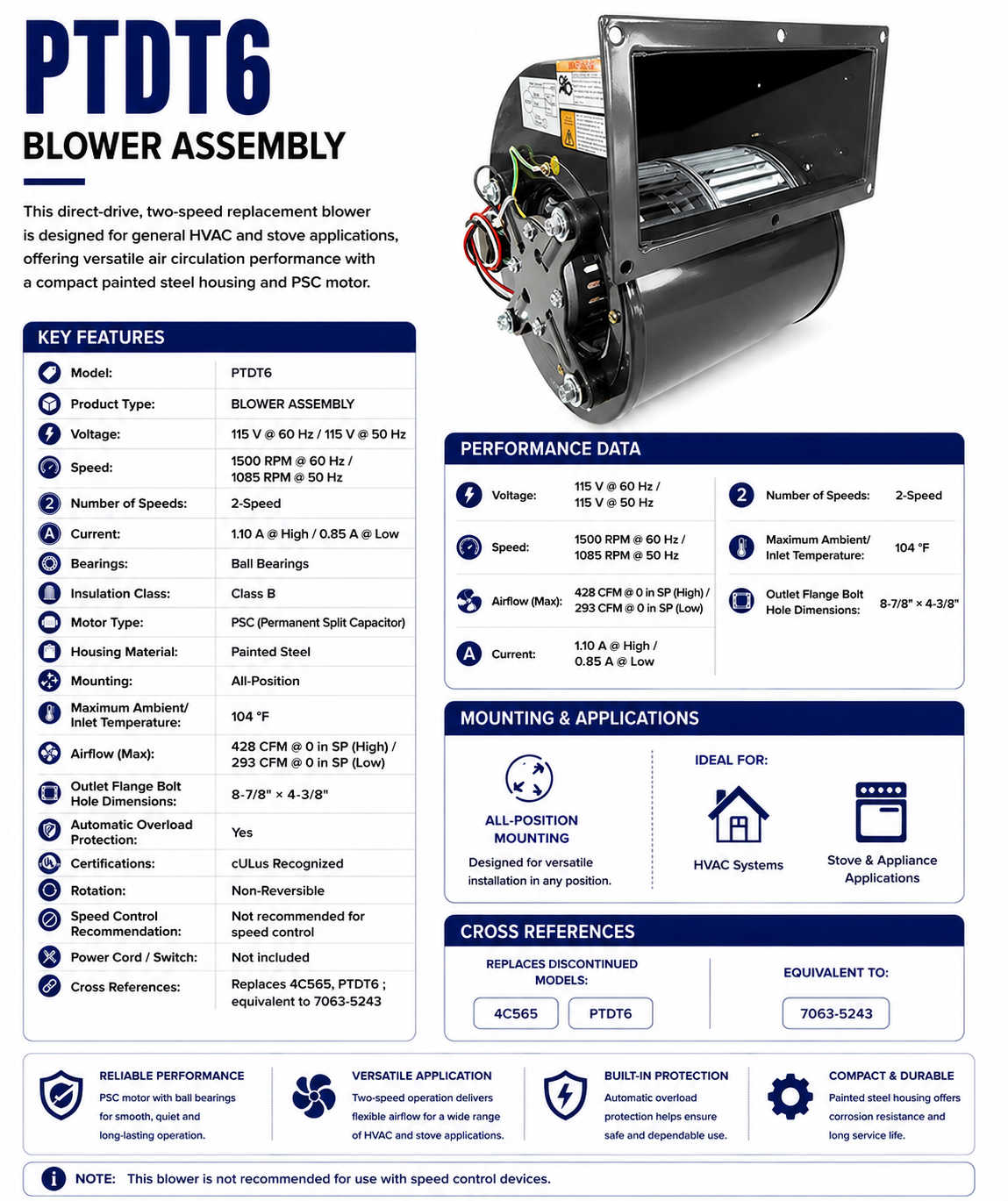

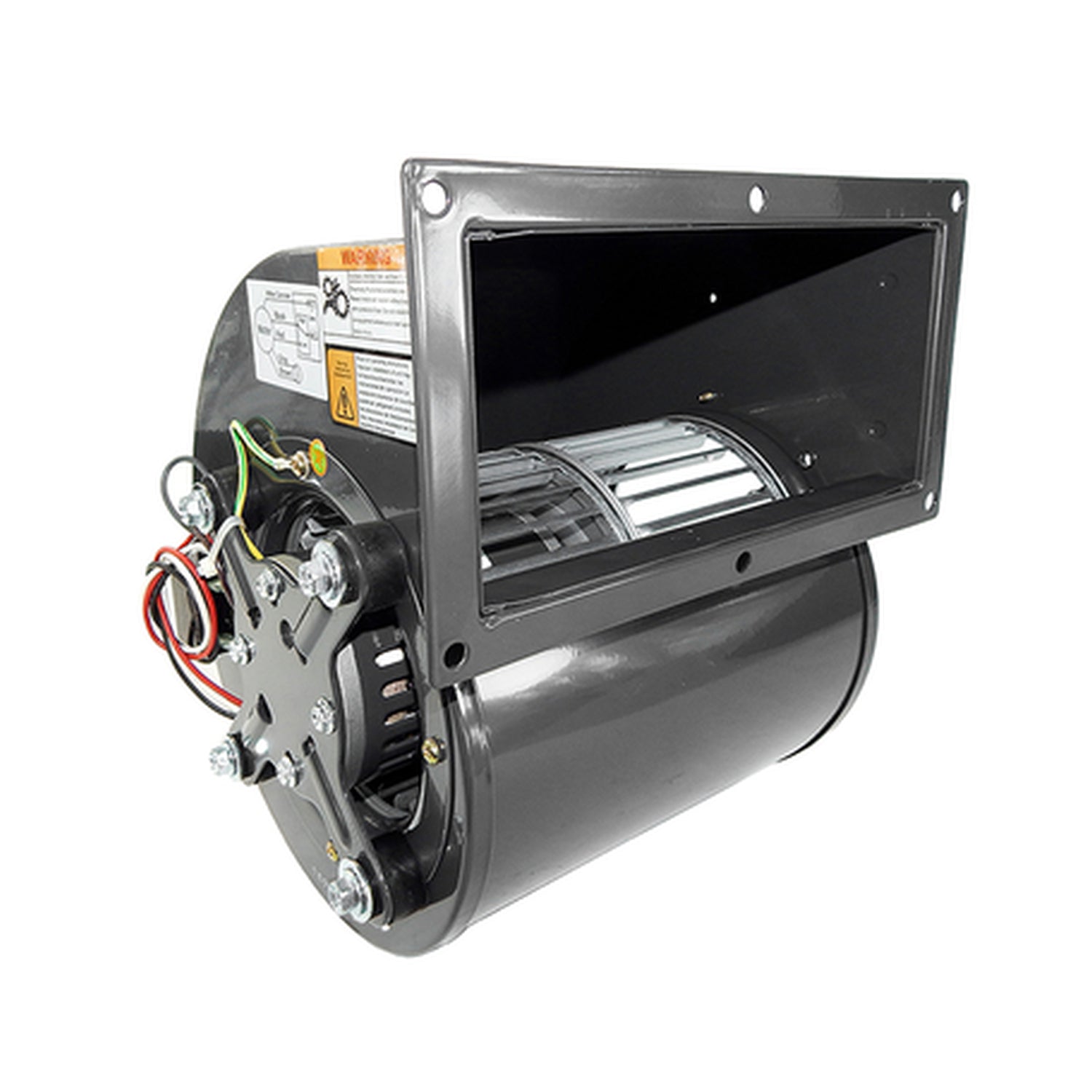

PTDT6, 2‑Speed PSC Replacement Blower (115 V, 1500/1085 RPM)

This direct‑drive, two‑speed replacement blower is designed for general HVAC and stove applications, offering versatile air circulation performance with a compact painted steel housing and PSC motor.

KEY FEATURES

• Model: PTDT6

• Product Type: BLOWER ASSEMBLY

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Speed: 1500 RPM @ 60 Hz / 1085 RPM @ 50 Hz

• Number of Speeds: 2‑Speed

• Current: 1.10 A @ High / 0.85 A @ Low

• Bearings: Ball Bearings

• Insulation Class: Class B

• Motor Type: PSC (Permanent Split Capacitor)

• Housing Material: Painted Steel

• Mounting: All‑Position

• Maximum Ambient/Inlet Temperature: 104 °F

• Airflow (Max): 428 CFM @ 0 in SP (High) / 293 CFM @ 0 in SP (Low)

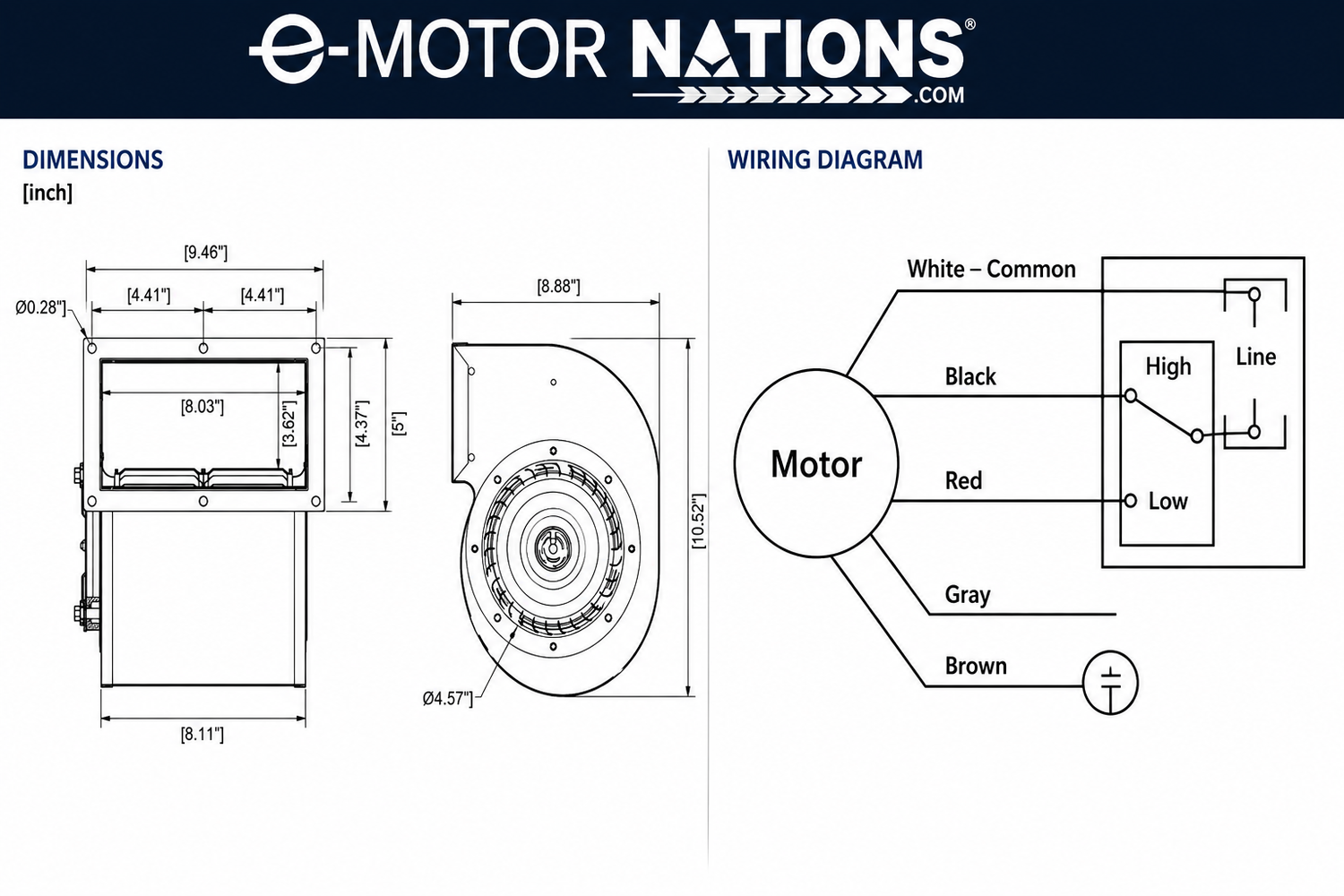

• Outlet Flange Bolt Hole Dimensions: 8‑7/8" × 4‑3/8"

• Automatic Overload Protection: Yes

• Certifications: cULus Recognized

• Rotation: Non‑Reversible

• Speed Control Recommendation: Not recommended for speed control

• Power Cord / Switch: Not included

• Cross References: Replaces 4C565, 1TDT6 ; equivalent to 7063‑5243

The blower’s compact, all‑position mounting and automatic overload protection make it a reliable replacement for discontinued models, while its PSC motor and ball‑bearing design ensure smooth, long‑lasting operation.
