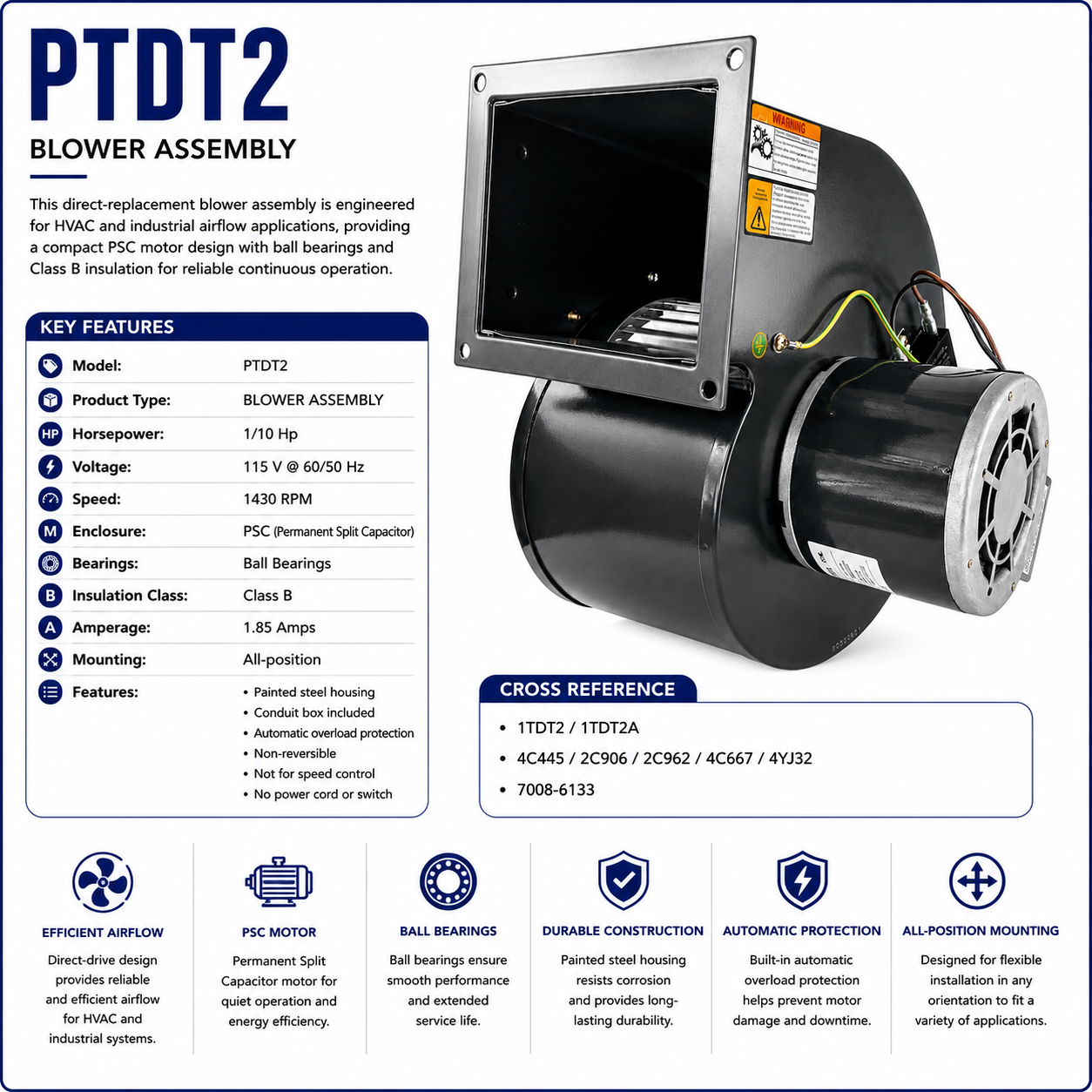

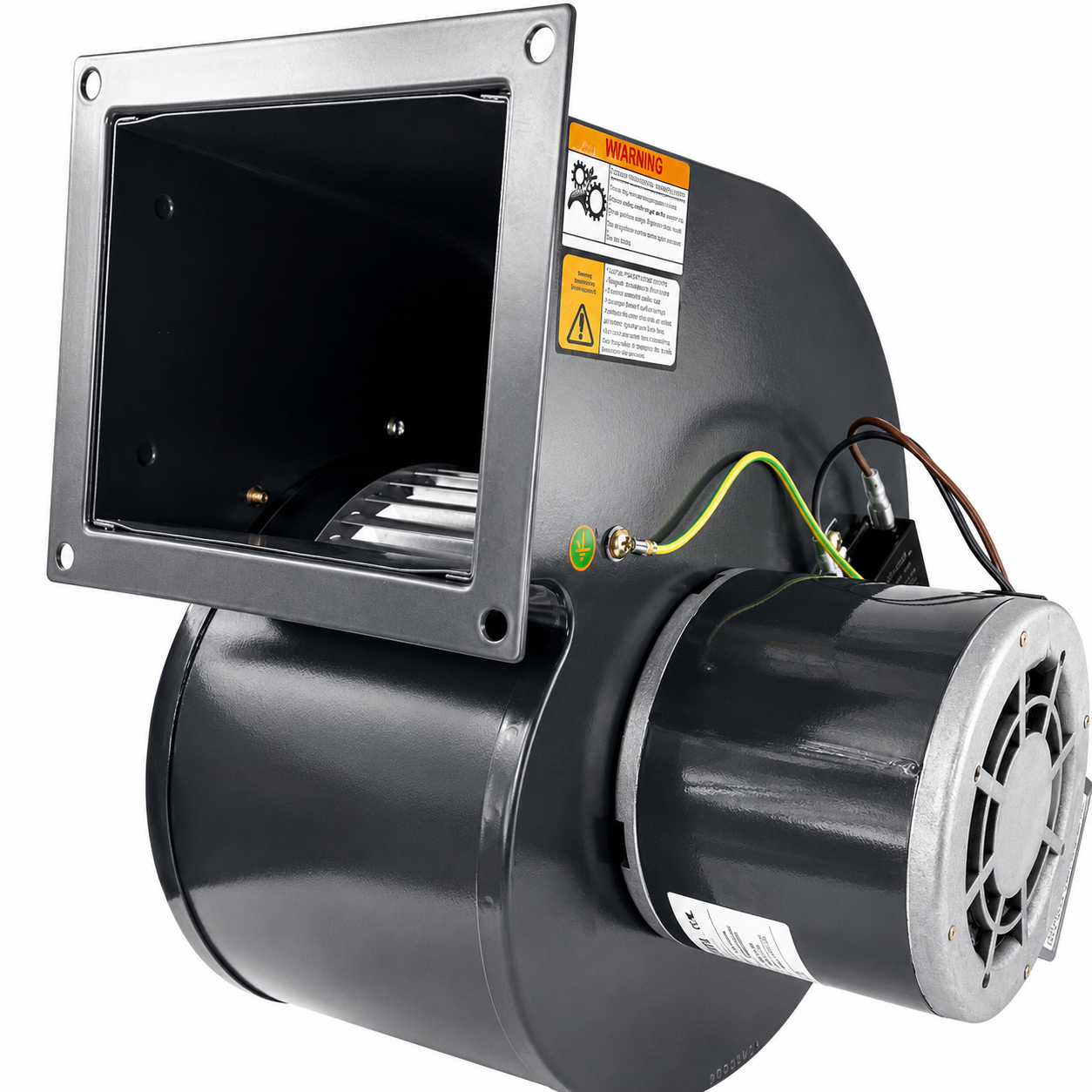

PTDT2, 1/10 Hp, 1430 RPM, 115 V, PSC, Ball Bearings, Class B, Direct OEM Interchange

This direct‐replacement blower assembly is engineered for HVAC and industrial airflow applications, providing a compact PSC motor design with ball bearings and Class B insulation for reliable continuous operation.

KEY FEATURES

• Model: PTDT2

• Product Type: BLOWER ASSEMBLY

• Horsepower: 1/10 Hp

• Voltage: 115 V @ 60/50 Hz

• Speed: 1430 RPM

• Enclosure: PSC (Permanent Split Capacitor)

• Bearings: Ball Bearings

• Insulation Class: Class B

• Amperage: 1.85 Amps

• Mounting: All‑position

• Features: Painted steel housing; conduit box included; automatic overload protection; non‑reversible; not for speed control; no power cord or switch

CROSS REFERENCE

• 1TDT2 / 1TDT2A

• 4C445 / 2C906 / 2C962 / 4C667 / 4YJ32

• 7008-6133
