PTDP6, Centrifugal Blower, 1/30 Hp, 2880 RPM, 230 V, 1 Ph, PSC Blower
Description
Description

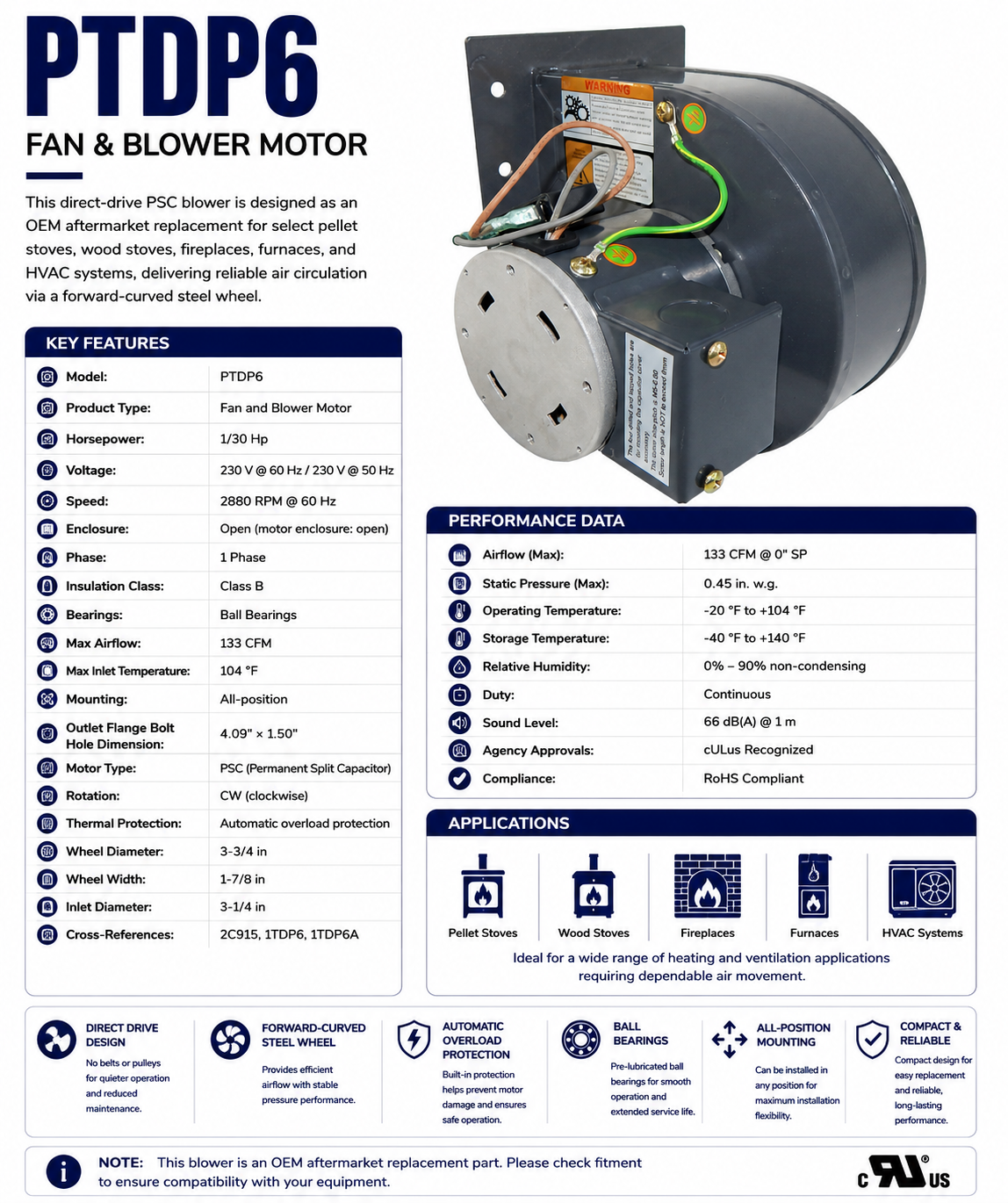

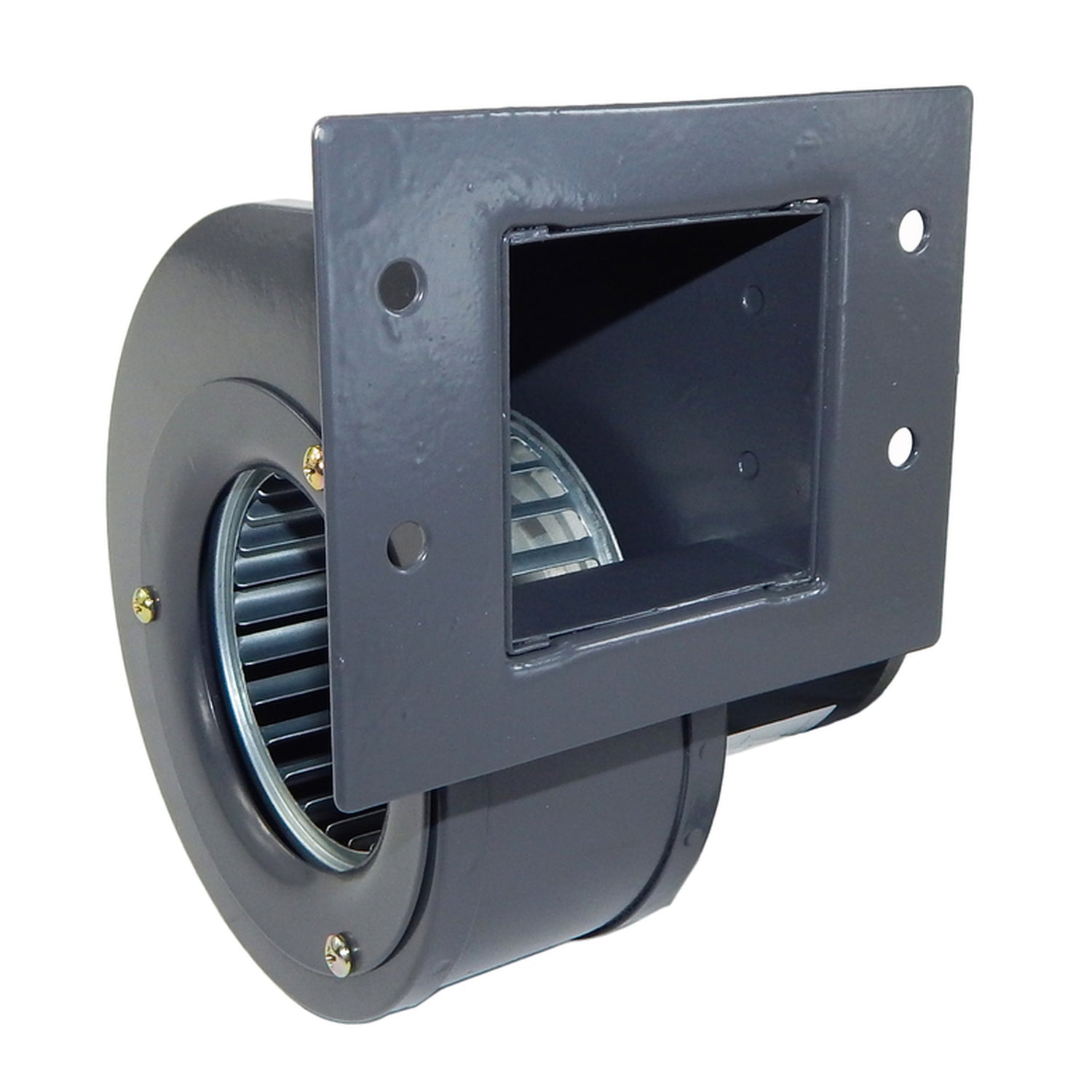

This direct‑drive PSC blower is designed as an OEM aftermarket replacement for select pellet stoves, wood stoves, fireplaces, furnaces, and HVAC systems, delivering reliable air circulation via a forward‑curved steel wheel.
KEY FEATURES
• Model: PTDP6
• Product Type: Fan and Blower Motor
• Horsepower: 1/30 Hp
• Voltage: 230 V @ 60 Hz / 230 V @ 50 Hz
• Speed: 2880 RPM @ 60 Hz
• Enclosure: Open (motor enclosure: open)
• Phase: 1 Phase
• Insulation Class: Class B
• Bearings: Ball Bearings
• Max Airflow: 133 CFM
• Max Inlet Temperature: 104 °F
• Mounting: All‑position

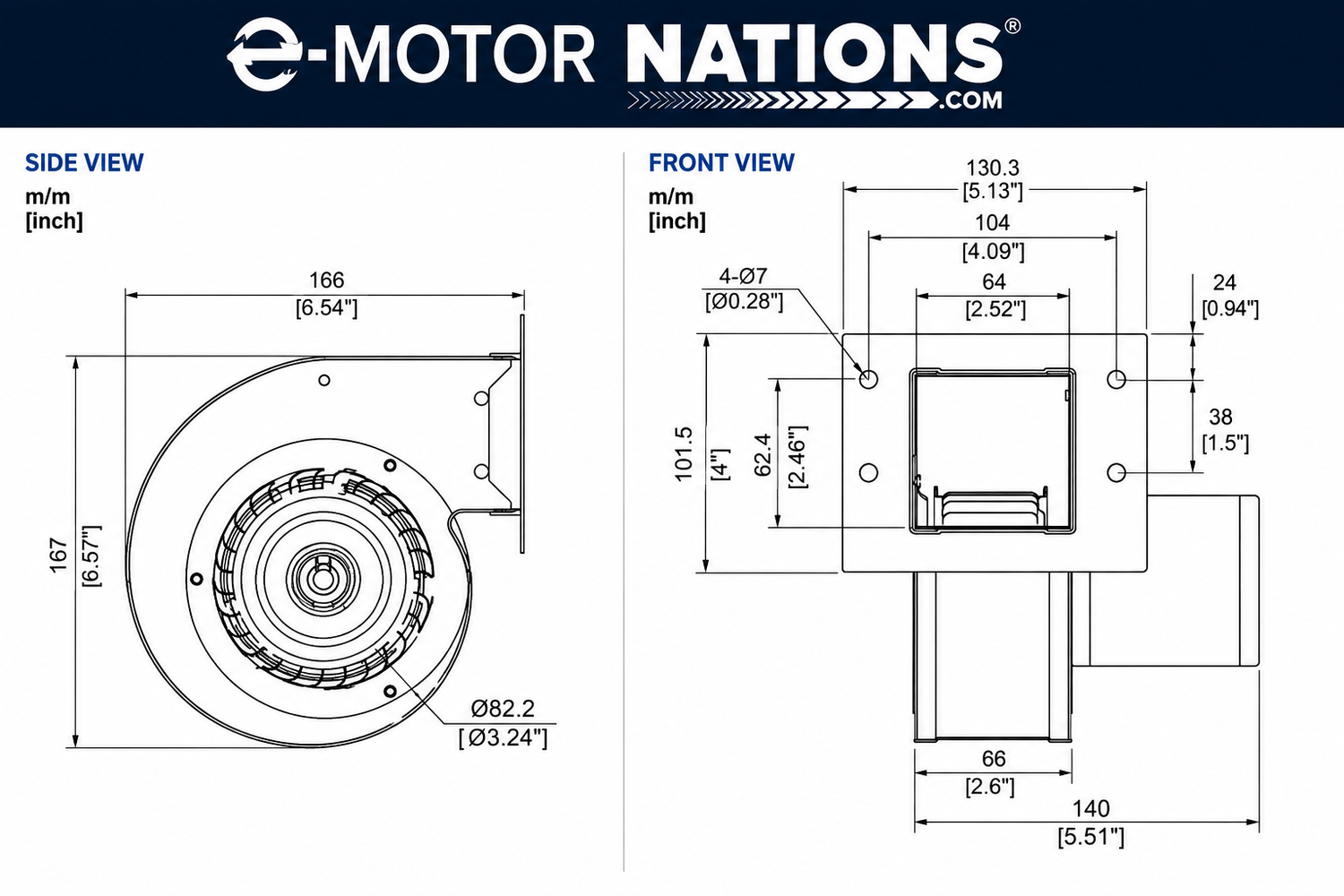

• Outlet Flange Bolt Hole Dimension: 4.09" × 1.50"
• Motor Type: PSC (Permanent Split Capacitor)
• Rotation: CW (clockwise)
• Thermal Protection: Automatic overload protection
• Wheel Diameter: 3‑3/4 in
• Wheel Width: 1‑7/8 in
• Inlet Diameter: 3‑1/4 in
• Cross‑References: 2C915, 1TDP6, 1TDP6A
The blower’s compact form factor, all‑position mounting, and forward‑curved wheel make it a versatile replacement for various HVAC and heating appliance applications.
