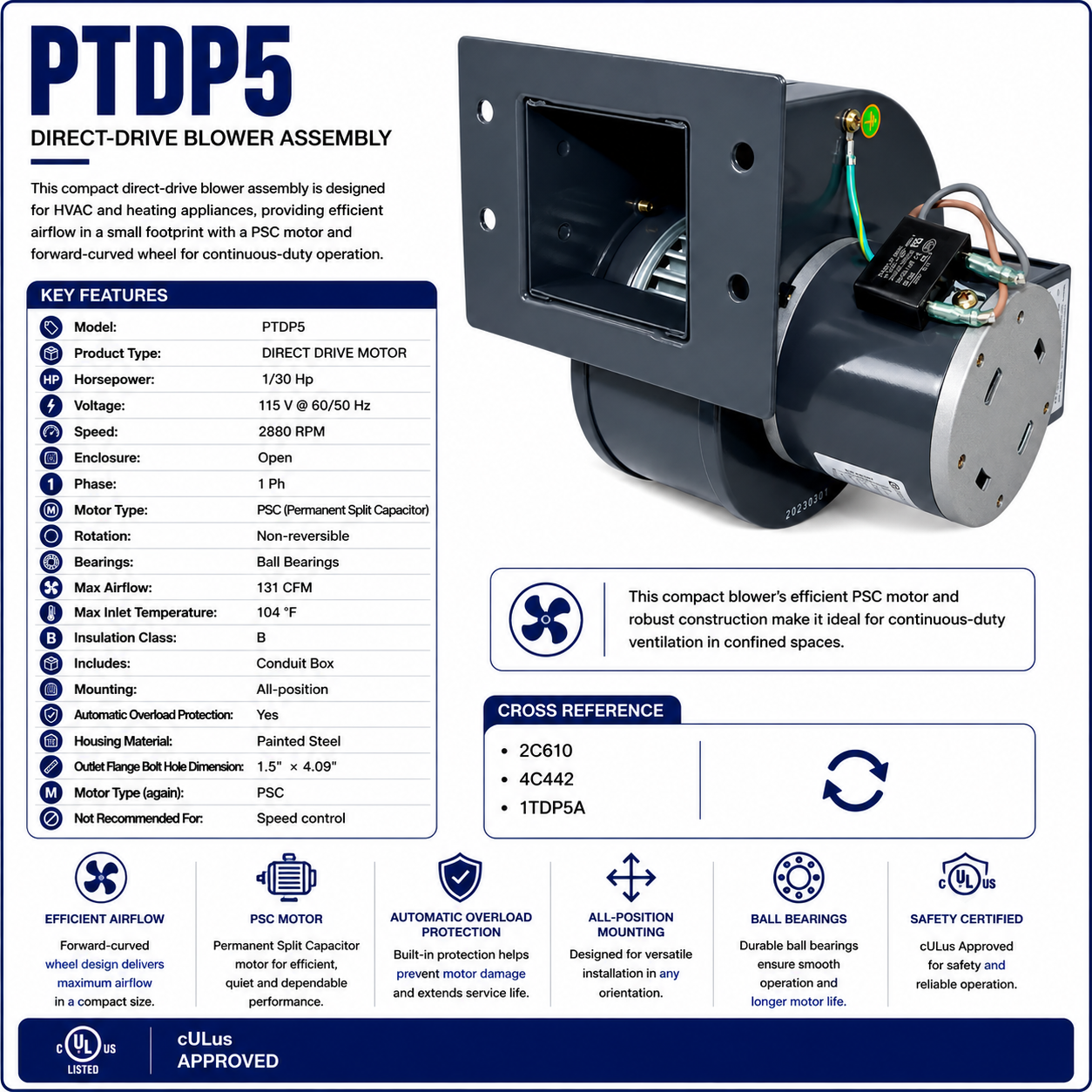

PTDP5, 1/30 Hp, 2880 RPM, 115 V, 1 Ph, PSC, Open Enclosure

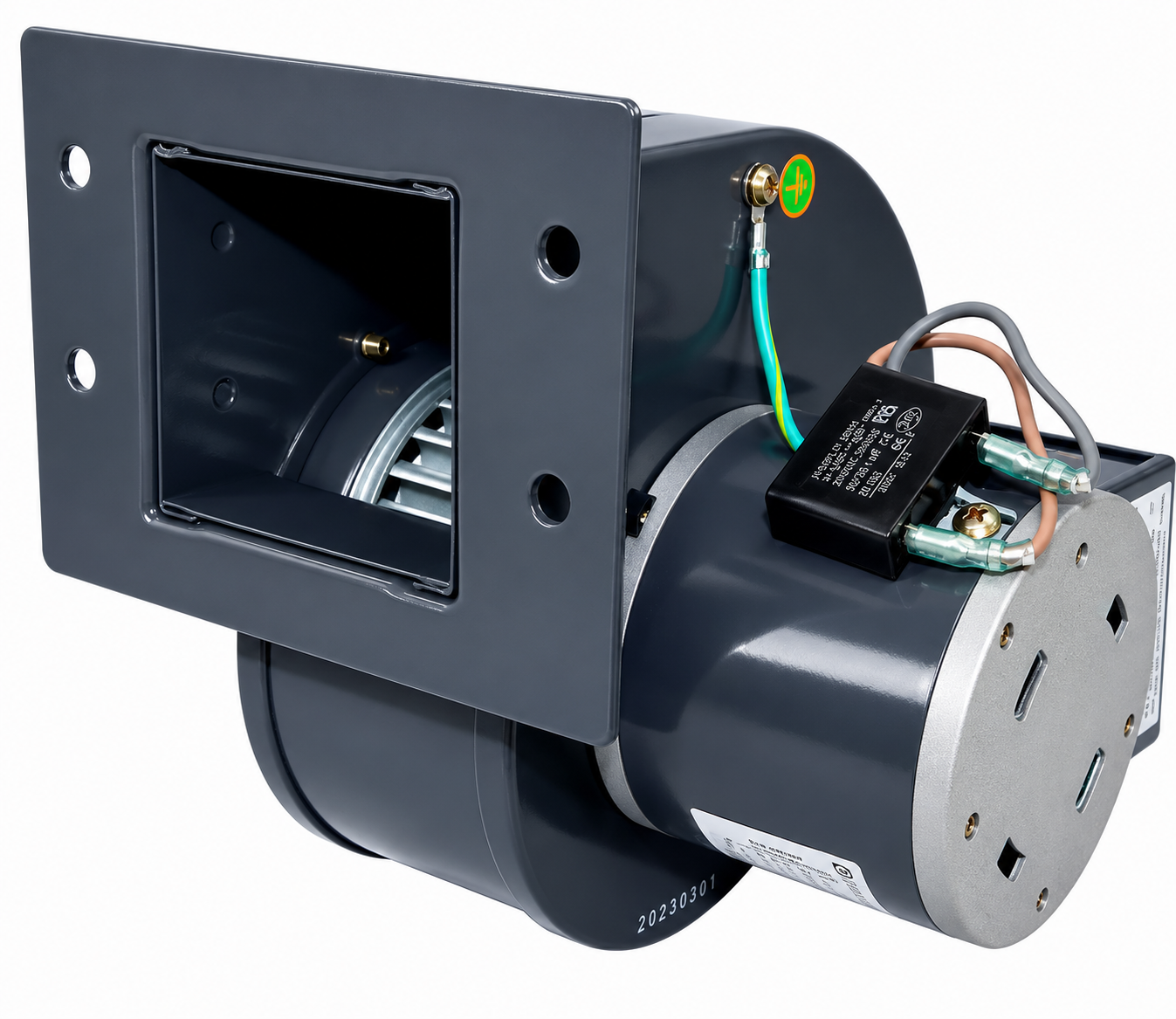

This compact direct-drive blower assembly is designed for HVAC and heating appliances, providing efficient airflow in a small footprint with a PSC motor and forward-curved wheel for continuous-duty operation.

KEY FEATURES

• Model: PTDP5

• Product Type: DIRECT DRIVE MOTOR

• Horsepower: 1/30 Hp

• Voltage: 115 V @ 60/50 Hz

• Speed: 2880 RPM

• Enclosure: Open

• Phase: 1 Ph

• Motor Type: PSC (Permanent Split Capacitor)

• Rotation: Non-reversible

• Bearings: Ball Bearings

• Max Airflow: 131 CFM

• Max Inlet Temperature: 104 °F

• Insulation Class: B

• Includes: Conduit Box

• Mounting: All-position

• Automatic Overload Protection: Yes

• Housing Material: Painted Steel

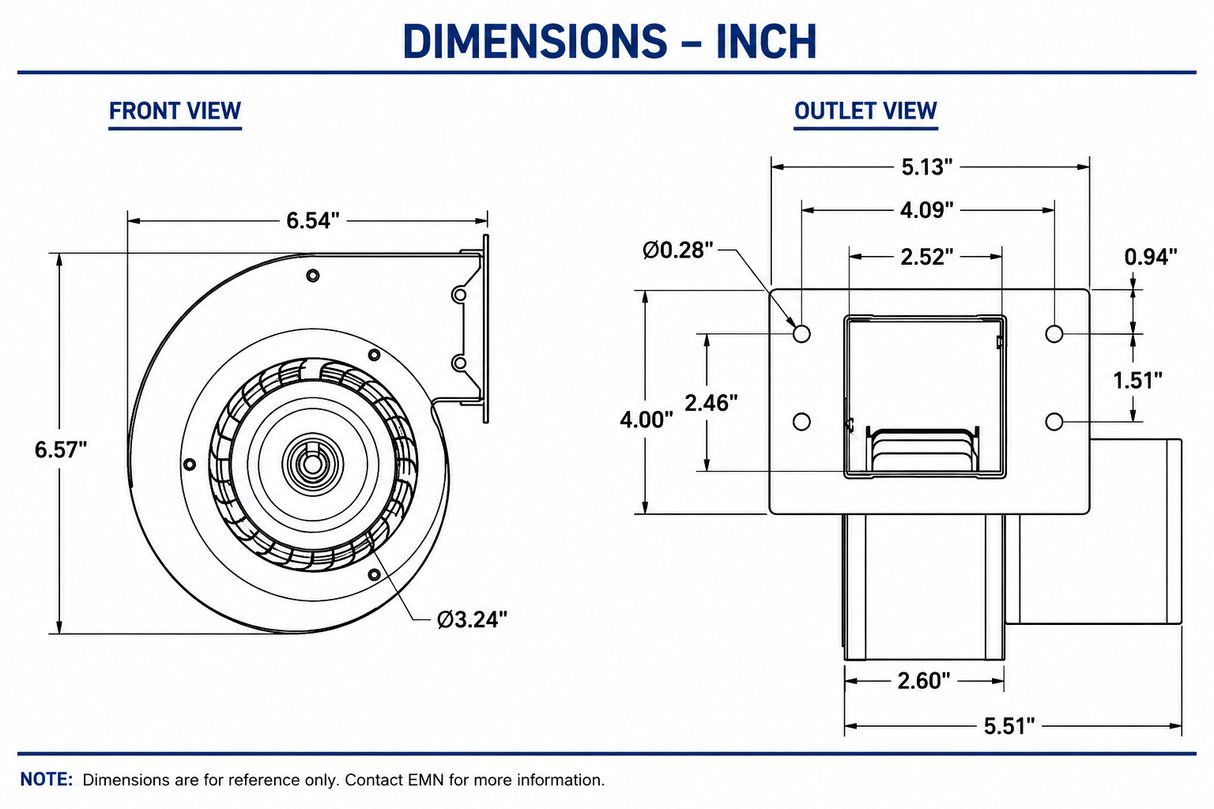

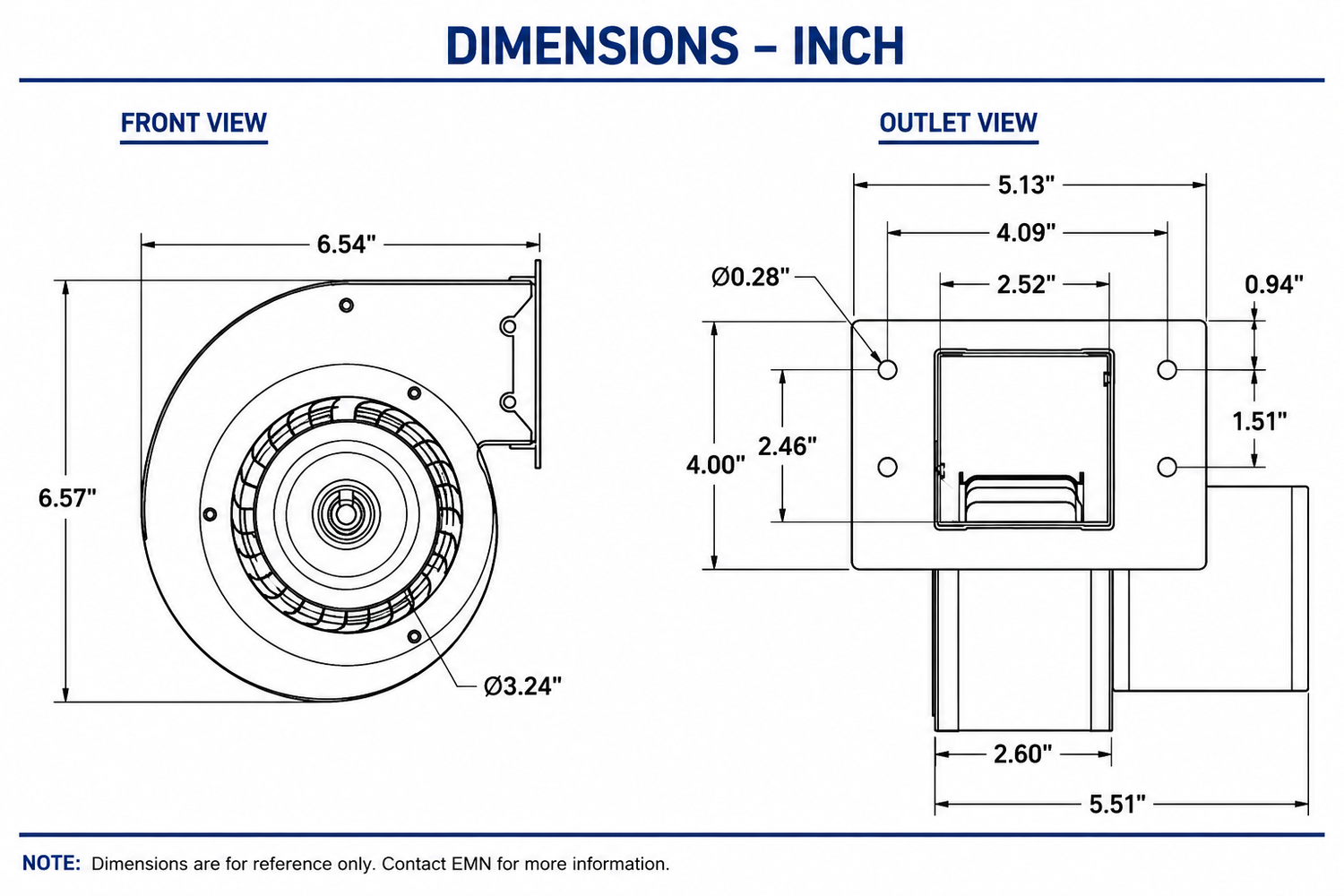

• Outlet Flange Bolt Hole Dimension: 1.5" × 4.09"

• Motor Type (again): PSC

• Not Recommended For: Speed control

This compact blower’s efficient PSC motor and robust construction make it ideal for continuous-duty ventilation in confined spaces.

CROSS REFERENCE

• 2C610

• 4C442

• 1TDP5A
