PDH00385, 3Hp, 900RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T
PDH00385, 3Hp, 900RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
PDH00385, 3Hp, 900RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T
Description
Description

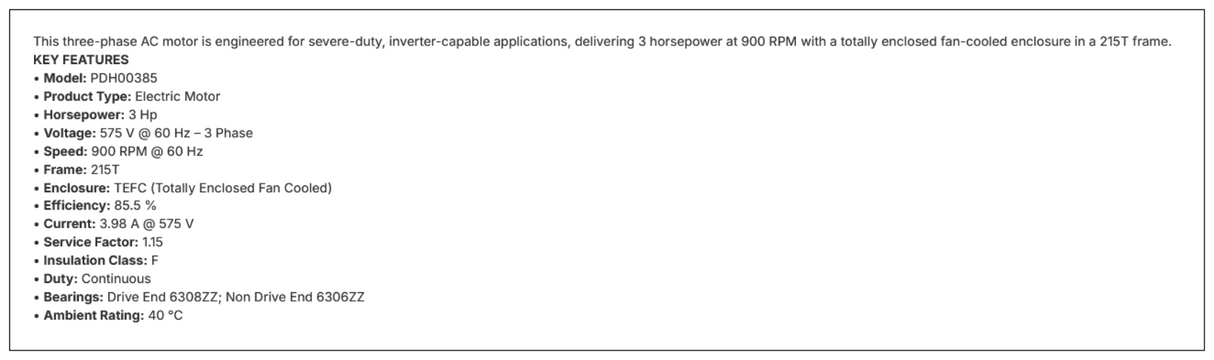

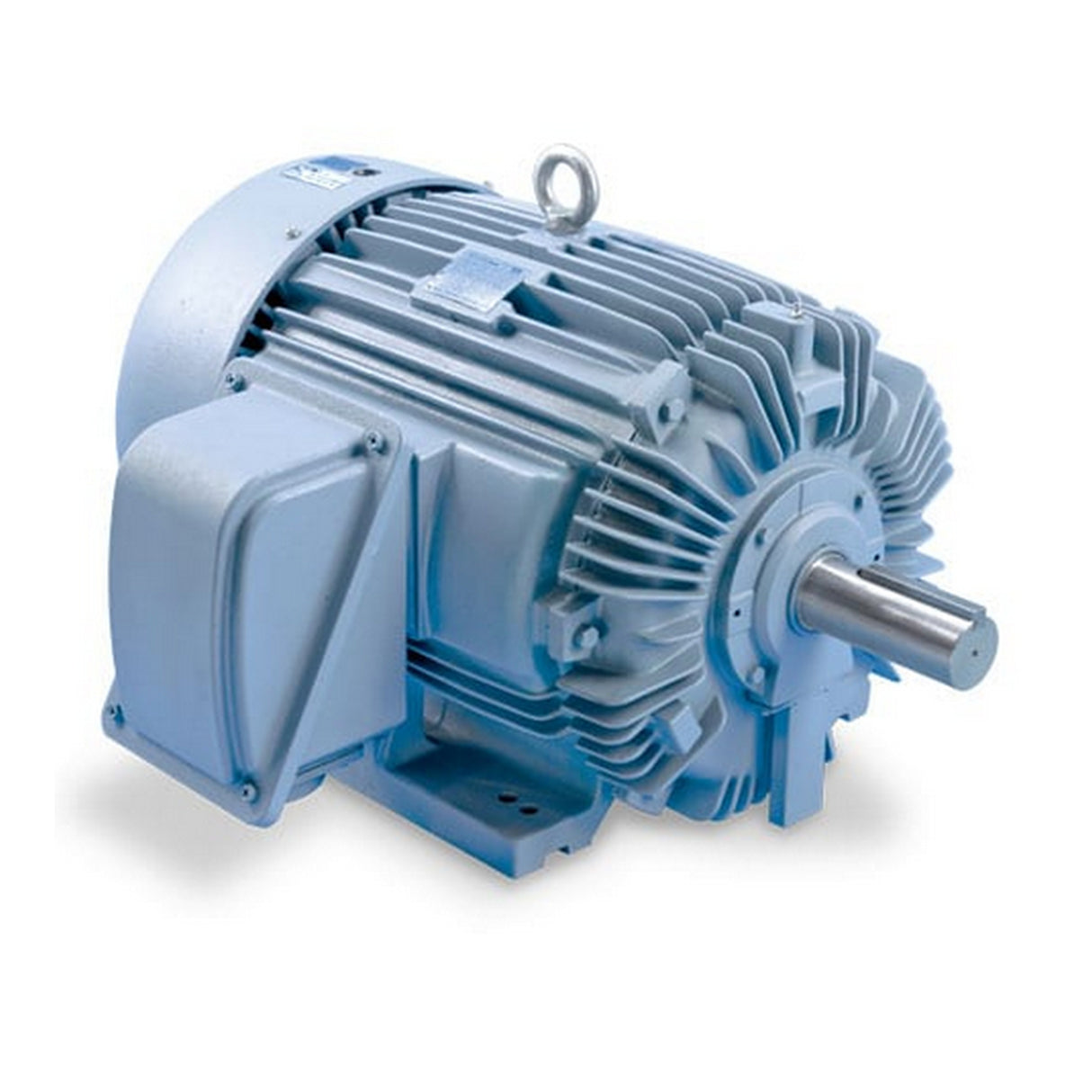

This three-phase AC motor is engineered for severe-duty, inverter-capable applications, delivering 3 horsepower at 900 RPM with a totally enclosed fan-cooled enclosure in a 215T frame.

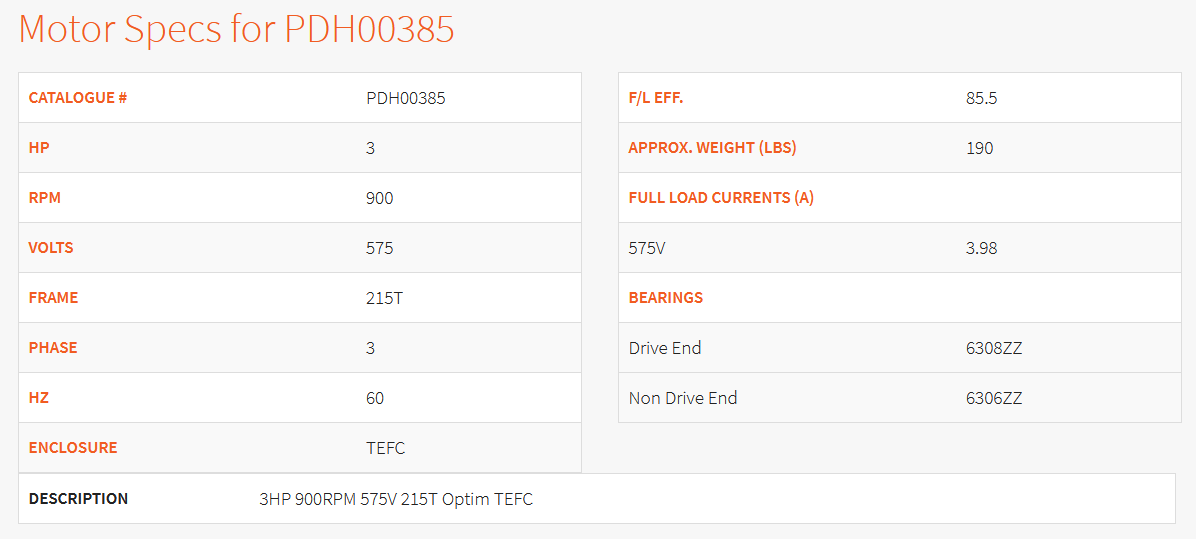

KEY FEATURES
• Model: PDH00385
• Product Type: Electric Motor
• Horsepower: 3 Hp
• Voltage: 575 V @ 60 Hz – 3 Phase
• Speed: 900 RPM @ 60 Hz
• Frame: 215T
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Efficiency: 85.5 %
• Current: 3.98 A @ 575 V
• Service Factor: 1.15
• Insulation Class: F
• Duty: Continuous
• Bearings: Drive End 6308ZZ; Non Drive End 6306ZZ
• Ambient Rating: 40 °C
