PDH00345, 3Hp, 1800RPM, 575V, 3Ph, 60Hz, TEFC, Frame 182T
PDH00345, 3Hp, 1800RPM, 575V, 3Ph, 60Hz, TEFC, Frame 182T est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
PDH00345, 3Hp, 1800RPM, 575V, 3Ph, 60Hz, TEFC, Frame 182T
Description
Description

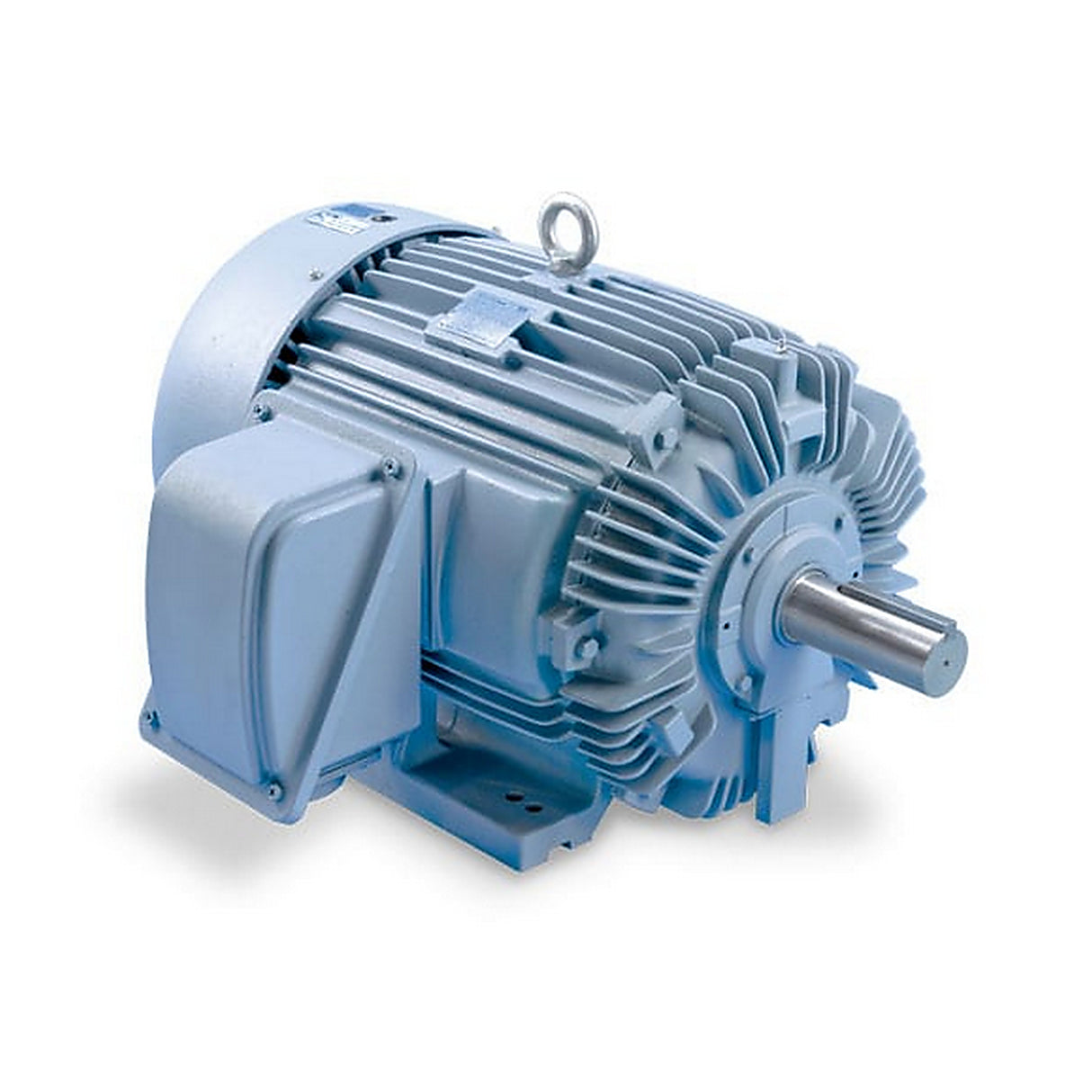

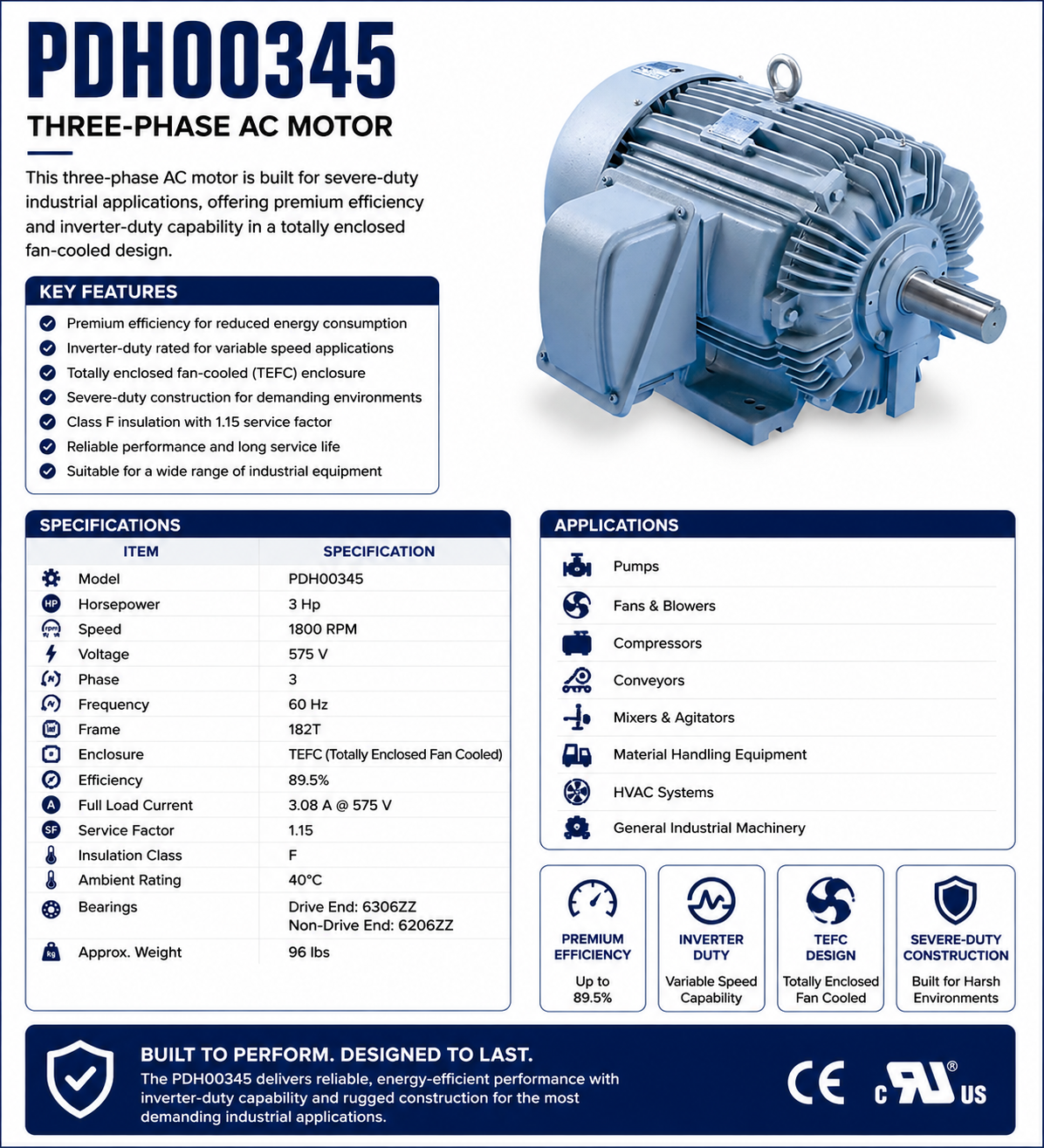

This three-phase AC motor is built for severe-duty industrial applications, offering premium efficiency and inverter-duty capability in a totally enclosed fan-cooled design.
Replace : MPP-17, CD3P2G, GT1110A, ELP3P2G
KEY FEATURES
• Model: PDH00345
• Horsepower: 3 Hp
• Speed: 1800 RPM
• Voltage: 575 V
• Phase: 3
• Frequency: 60 Hz
• Frame: 182T
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Efficiency: 89.5%
• Approx. Weight: 96 lbs
• Full Load Current: 3.08 A @ 575 V
• Bearings: Drive End 6306ZZ; Non‑Drive End 6206ZZ
• Service Factor: 1.15
• Insulation Class: F
• Ambient Rating: 40°C
Downloads
