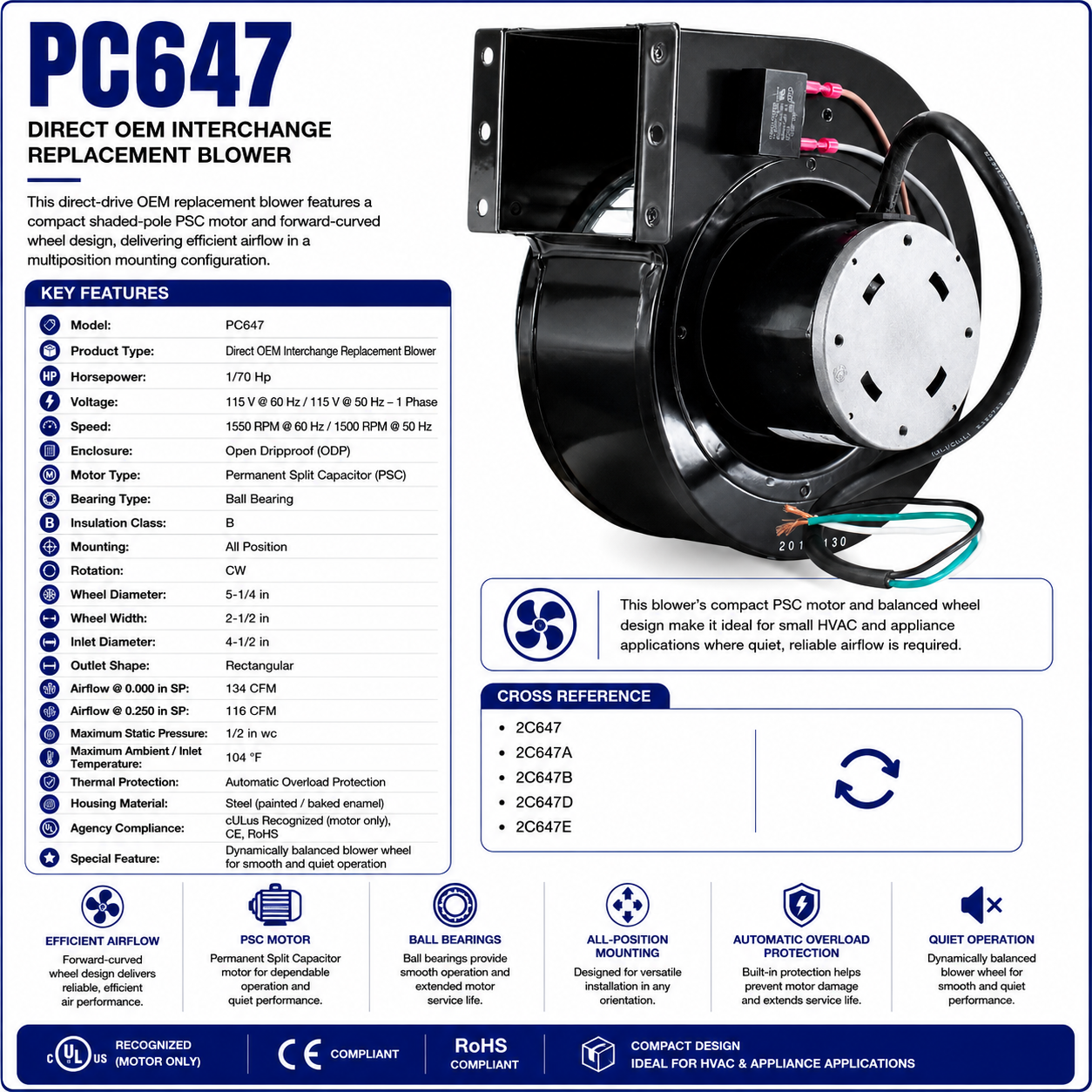

PC647, 1/70 Hp, 1550 RPM, 115 V, 1 Ph, 50/60 Hz, Open Dripproof, 3.3" PSC Motor, Direct OEM Interchange Replacement Blower

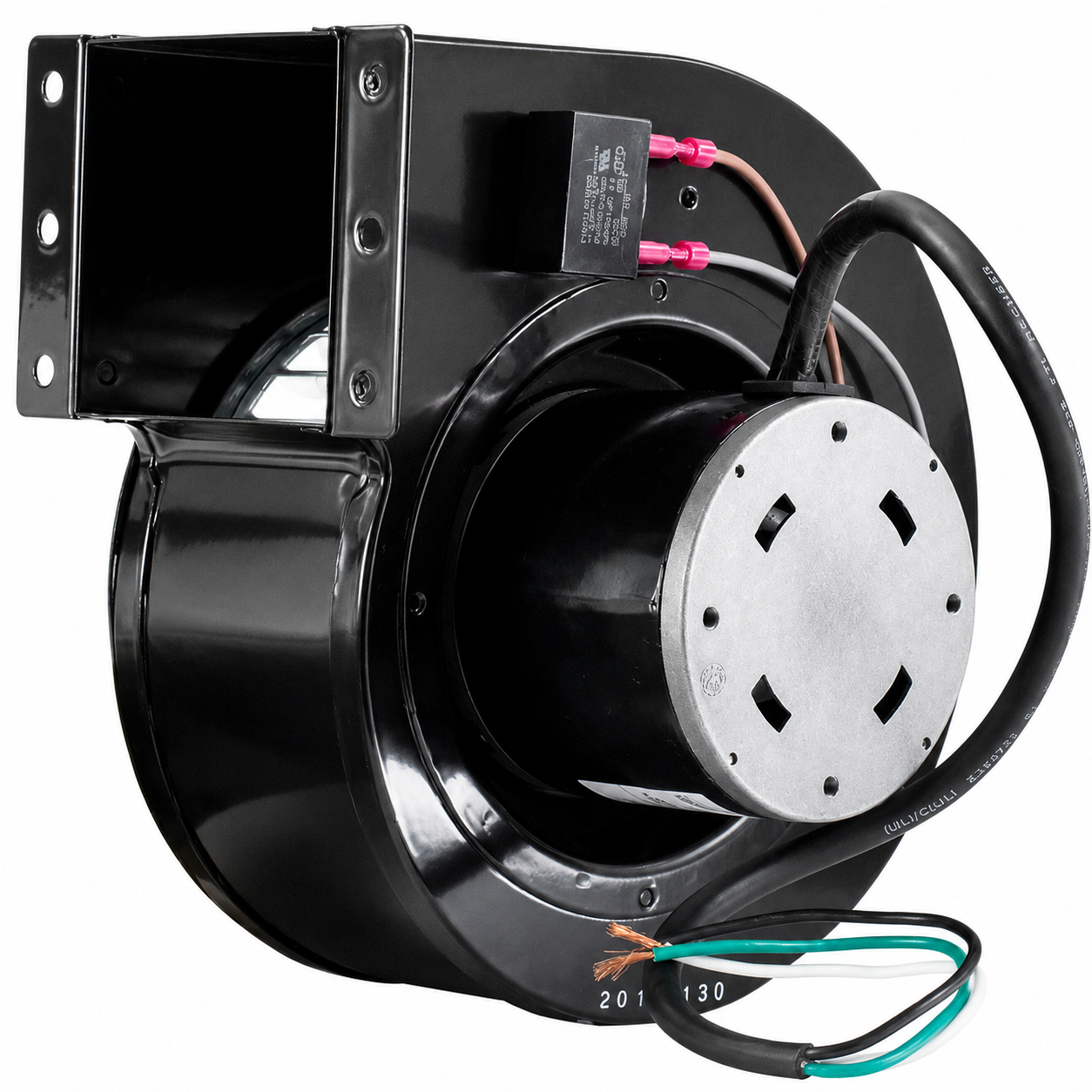

This direct-drive OEM replacement blower features a compact shaded-pole PSC motor and forward-curved wheel design, delivering efficient airflow in a multiposition mounting configuration.

KEY FEATURES

• Model: PC647

• Product Type: Direct OEM Interchange Replacement Blower

• Horsepower: 1/70 Hp

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz – 1 Phase

• Speed: 1550 RPM @ 60 Hz / 1500 RPM @ 50 Hz

• Enclosure: Open Dripproof (ODP)

• Motor Type: Permanent Split Capacitor (PSC)

• Bearing Type: Ball Bearing

• Insulation Class: B

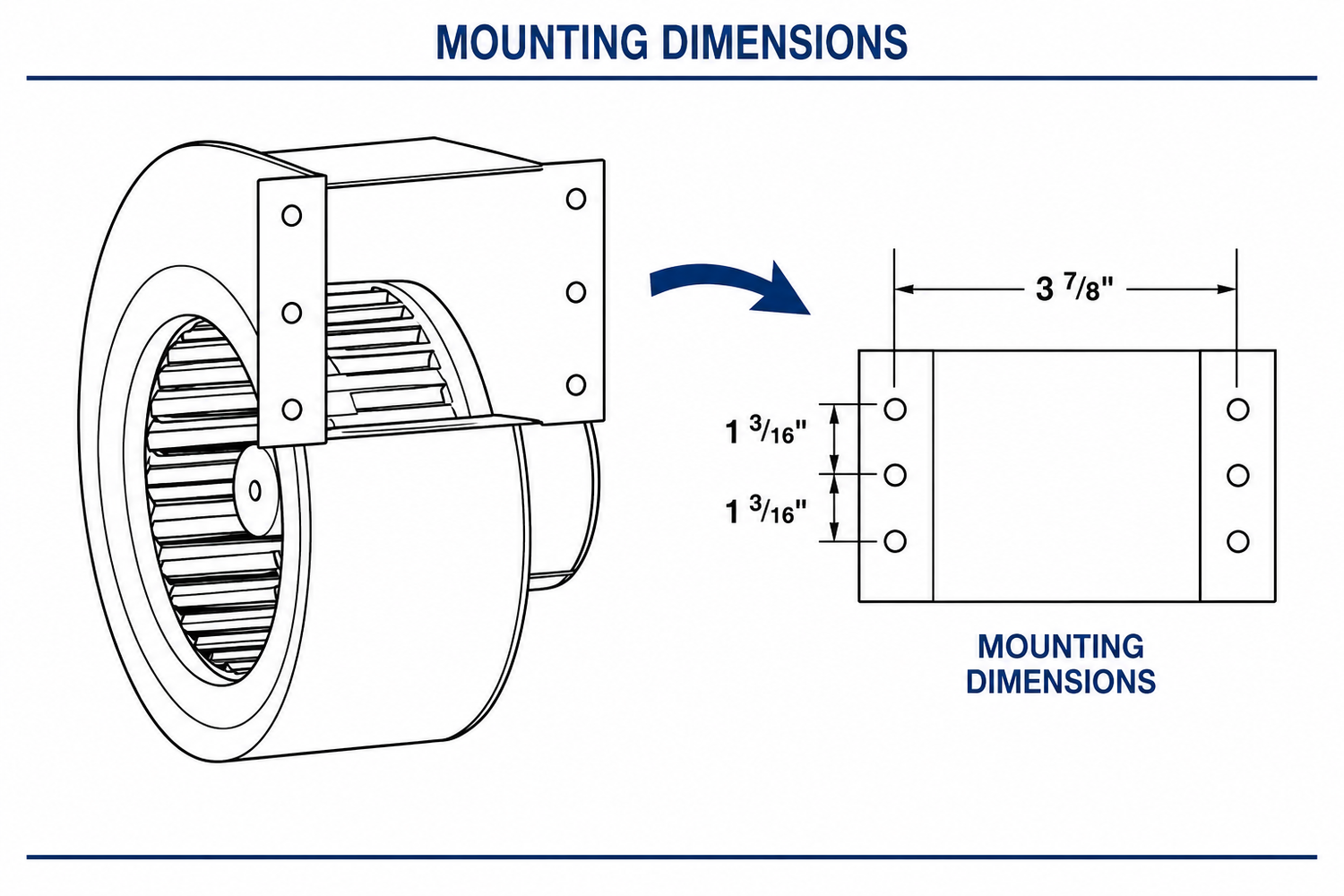

• Mounting: All Position

• Rotation: CW

• Wheel Diameter: 5‑1/4 in

• Wheel Width: 2‑1/2 in

• Inlet Diameter: 4‑1/2 in

• Outlet Shape: Rectangular

• Airflow @ 0.000 in SP: 134 CFM

• Airflow @ 0.250 in SP: 116 CFM

• Maximum Static Pressure: 1/2 in wc

• Maximum Ambient / Inlet Temperature: 104 °F

• Thermal Protection: Automatic Overload Protection

• Housing Material: Steel (painted / baked enamel)

• Agency Compliance: cULus Recognized (motor only), CE, RoHS

• Special Feature: Dynamically balanced blower wheel for smooth and quiet operation

This blower’s compact PSC motor and balanced wheel design make it ideal for small HVAC and appliance applications where quiet, reliable airflow is required.

CROSS REFERENCE

• 2C647 / 2C647A / 2C647B / 2C647D / 2C647E
