SKF  |  SKU : EMN-019413

NU 319 ECJ/C3, Single Row Cylindrical Roller Bearings 95x200x45mm

$1,045.92
shipping

Estimation des frais de livraison

Description

NU 319 ECJ/C3, Single Row Cylindrical Roller Bearings 95x200x45mm

Replacement by NTN

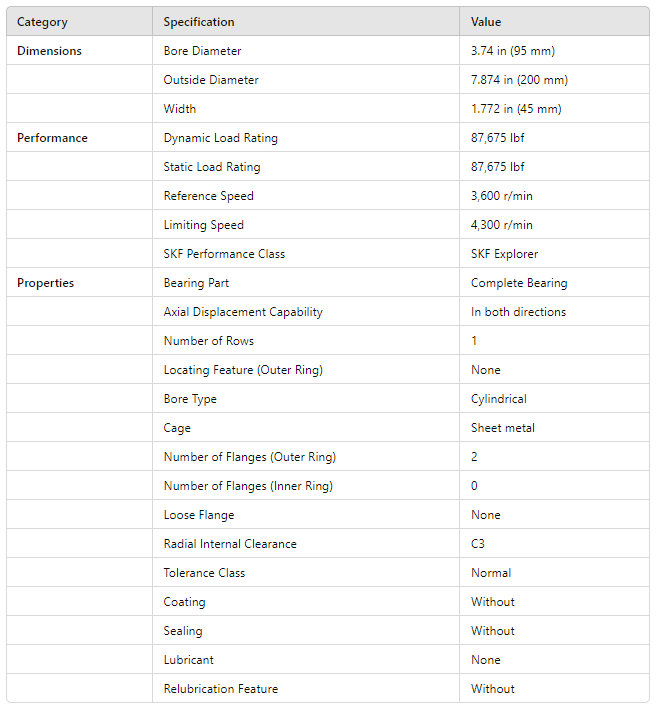

Category Specification Value
Dimensions
 Bore Diameter 3.74 in (95 mm)
Outside Diameter 7.874 in (200 mm)
Width 1.772 in (45 mm)
Performance
 Dynamic Load Rating 87,675 lbf
Static Load Rating 87,675 lbf
Reference Speed 3,600 r/min
Limiting Speed 4,300 r/min
SKF Performance Class SKF Explorer
Properties
 Bearing Part Complete Bearing
Axial Displacement Capability In both directions
Number of Rows 1
Locating Feature (Outer Ring) None
Bore Type Cylindrical
Cage Sheet metal
Number of Flanges (Outer Ring) 2
Number of Flanges (Inner Ring) 0
Loose Flange None
Radial Internal Clearance C3
Tolerance Class Normal
Coating Without
Sealing Without
Lubricant None
Relubrication Feature Without

About SKF

SKF was founded in 1907. We are represented in around 130 countries, with more than 38 000 employees and 17 000 distributor locations worldwide.

Our products are found everywhere in society. In fact, wherever there is movement, SKF’s solutions may be used. We are an important part of the everyday lives of people and companies around the world.
