SKF  |  SKU : EMN-019411

NU 317 ECJ/C3, Single Row Cylindrical Roller Bearings 85x180x41mm

$904.64
shipping

Estimation des frais de livraison

Description

NU 317 ECJ/C3, Single Row Cylindrical Roller Bearings 85x180x41mm

Replacement by NTN

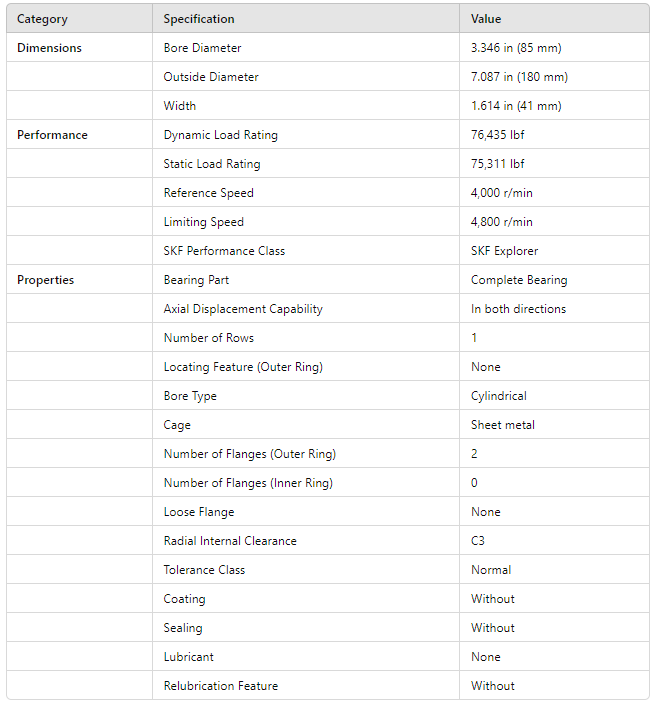

Category Specification Value
Dimensions
 Bore Diameter 3.346 in (85 mm)
Outside Diameter 7.087 in (180 mm)
Width 1.614 in (41 mm)
Performance
 Dynamic Load Rating 76,435 lbf
Static Load Rating 75,311 lbf
Reference Speed 4,000 r/min
Limiting Speed 4,800 r/min
SKF Performance Class SKF Explorer
Properties
 Bearing Part Complete Bearing
Axial Displacement Capability In both directions
Number of Rows 1
Locating Feature (Outer Ring) None
Bore Type Cylindrical
Cage Sheet metal
Number of Flanges (Outer Ring) 2
Number of Flanges (Inner Ring) 0
Loose Flange None
Radial Internal Clearance C3
Tolerance Class Normal
Coating Without
Sealing Without
Lubricant None
Relubrication Feature Without
