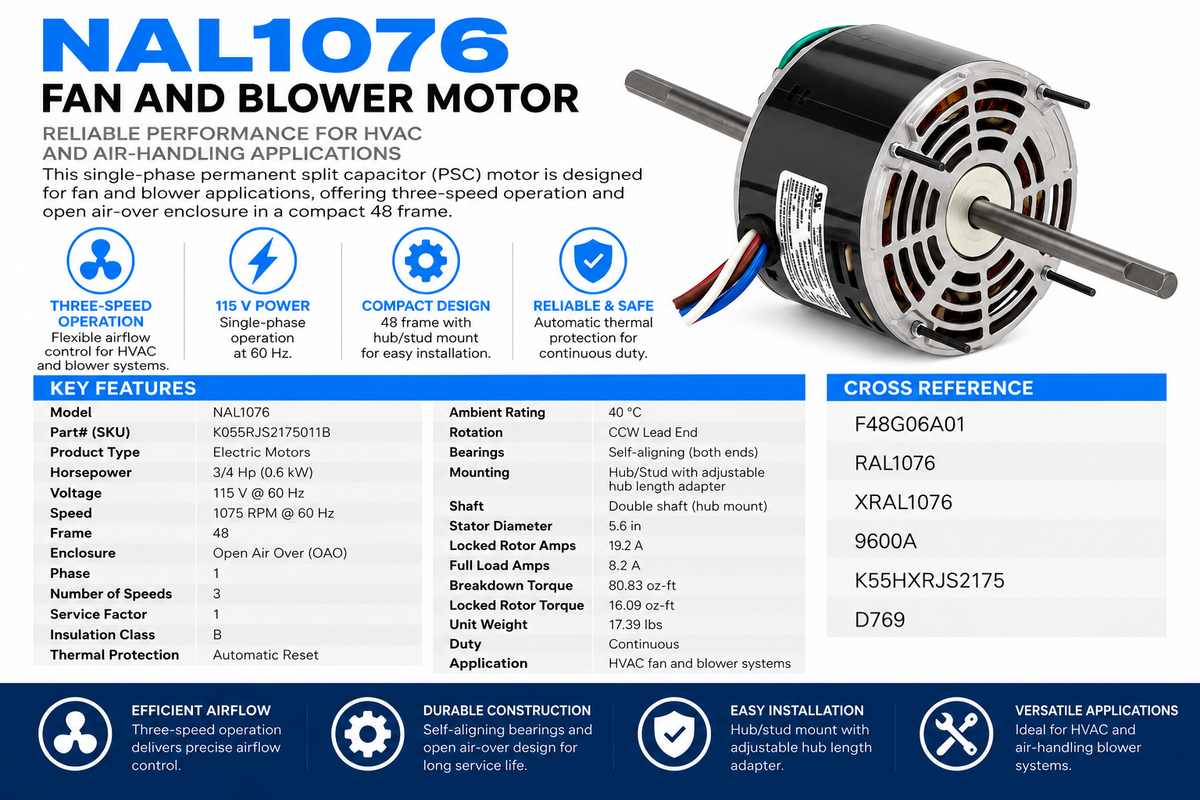

NAL1076, 3/4Hp, 1075RPM, 115V, 1Ph, 60Hz, OAO, Frame 48, K055RJS2175011B

This single‑phase permanent split capacitor motor is designed for fan and blower applications, offering three‑speed operation and open air‑over enclosure in a compact 48 frame.

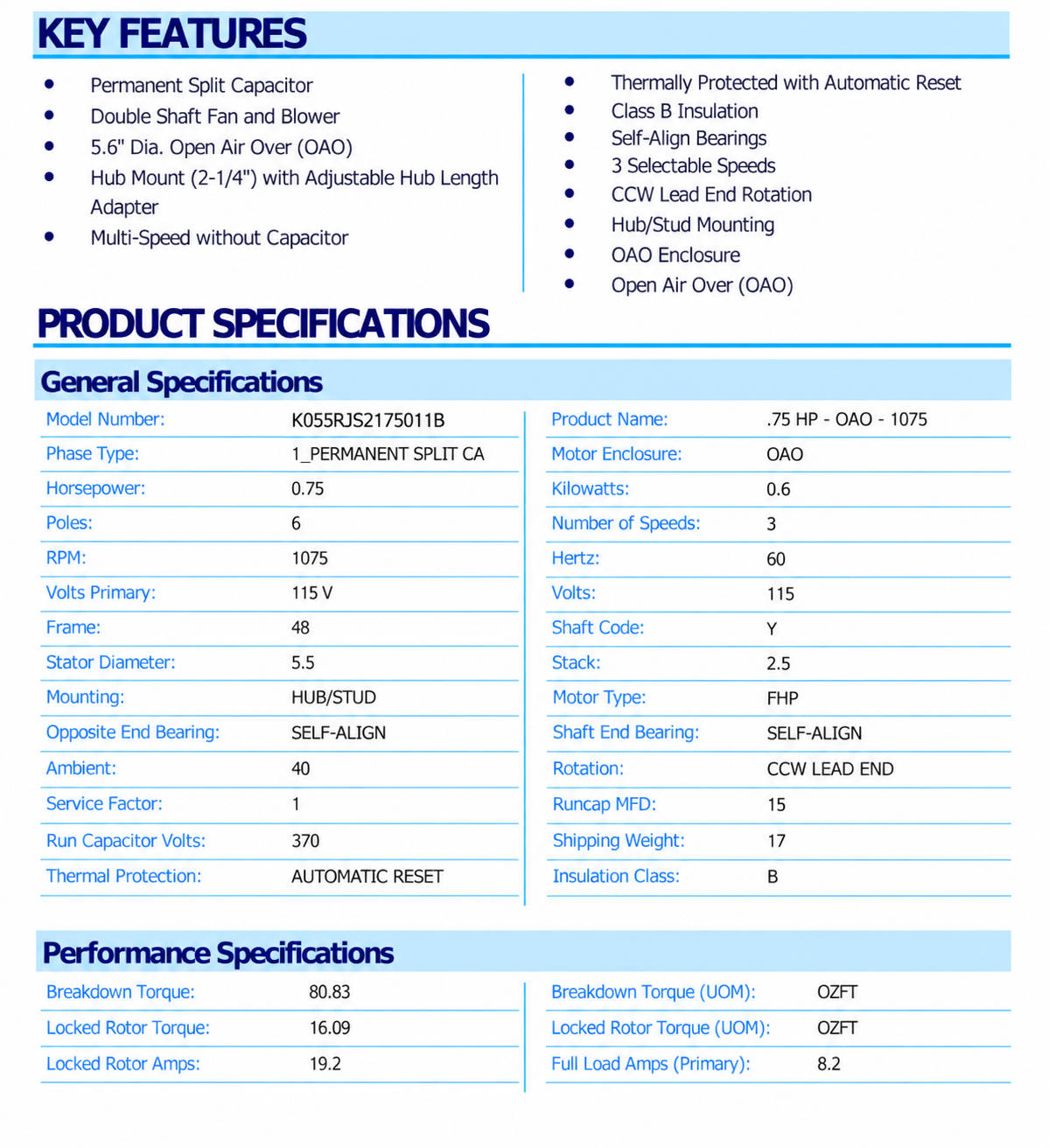

KEY FEATURES

• Model: NAL1076

• Part#: K055RJS2175011B

• Product Type: Electric Motors

• Horsepower: 3/4 Hp (0.6 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 48

• Enclosure: Open Air Over (OAO)

• Phase: 1

• Number of Speeds: 3

• Service Factor: 1

• Thermal Protection: Automatic Reset

• Insulation Class: B

• Ambient Rating: 40°C

• Rotation: CCW lead end

• Bearings: Self‑aligning (both ends)

• Mounting: Hub/Stud with adjustable hub length adapter

• Double Shaft Diameter: 5.6"

• Breakdown Torque: 80.83 oz‑ft

• Locked Rotor Torque: 16.09 oz‑ft

• Locked Rotor Amps: 19.2 A

• Full Load Amps: 8.2 A

• Unit Weight: 17.39 lbs

CROSS REFERENCE

• F48G06A01

• RAL1076 / XRAL1076 / 9600A

• K55HXRJS2175

• D769
