NAL1054, 1/2Hp, 1625 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over (OAO), Frame 48Y, K055RJK2168011B

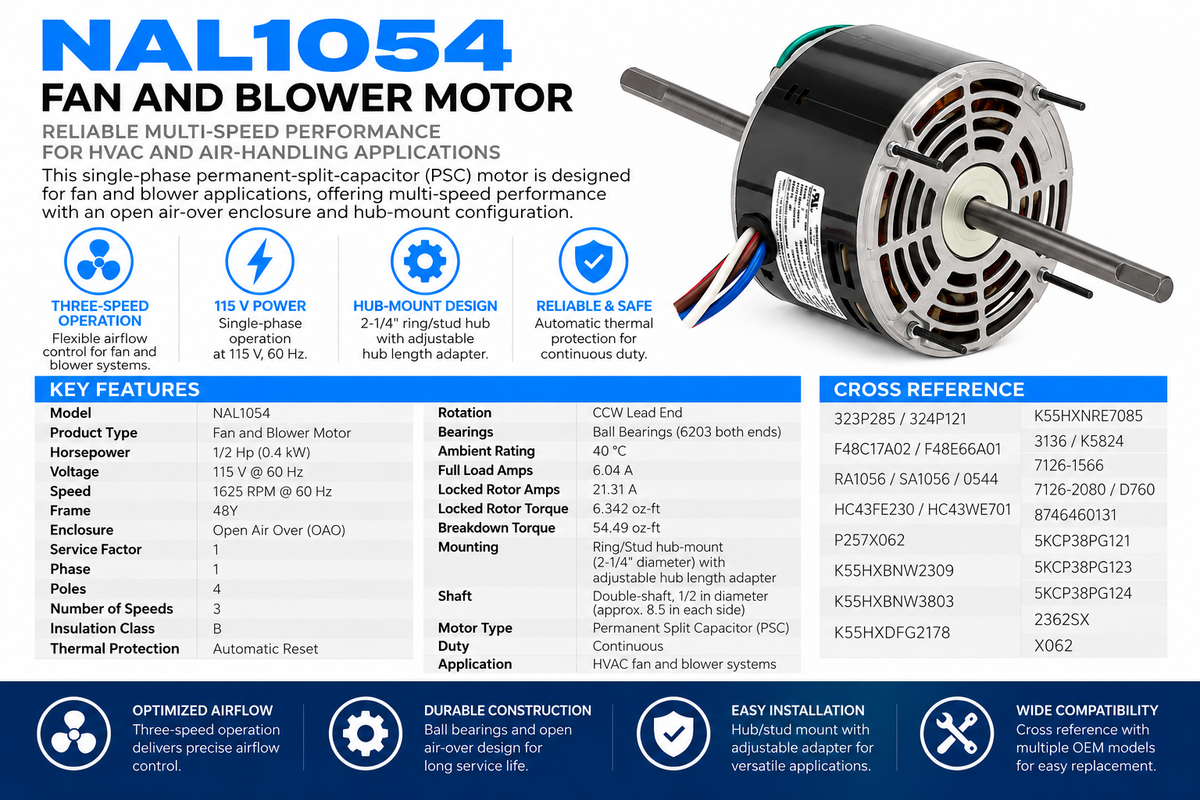

This single‑phase permanent‑split‑capacitor (PSC) motor is designed for fan and blower applications, offering multi‑speed performance with an open air‑over enclosure and hub‑mount configuration.

KEY FEATURES

• Model: NAL1054

• Product Type: Fan and Blower Motor

• Horsepower: 1/2 Hp (0.4 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1625 RPM @ 60 Hz

• Frame: 48Y

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Insulation Class: B

• Thermal Protection: Automatic Reset

• Rotation: CCW Lead End

• Number of Speeds: 3

• Bearings: Ball Bearings (6203 on both ends)

• Ambient Rating: 40 °C

• Breakdown Torque: 54.49 oz‑ft

• Locked Rotor Torque: 6.342 oz‑ft

• Locked Rotor Amps: 21.31 A

• Full Load Amps: 6.04 A

• Mounting: Ring/Stud hub‑mount (2‑1/4" diameter) with adjustable hub length adapter

• Motor Type: Permanent Split Capacitor (PSC)

• Poles: 4

CROSS REFERENCE

• 323P285 / 324P121

• F48C17A02 / F48E66A01

• RA1056 / SA1056 / 0544

• HC43FE230 / HC43WE701 / P257X062

• K55HXBNW2309 / K55HXBNW3803

• K55HXDFG2178 / K55HXNRE7085

• 3136 / K5824

• 7126-1566 / 7126-2080 / D760

• 8746460131

• 5KCP38PG121 / 5KCP38PG123 / 5KCP38PG124

• 2362SX

• X062
