NAL1036, 1/3Hp, 1075RPM, 115V, 1Ph, 60Hz, ODP, Frame 48, K055RHP2149011B

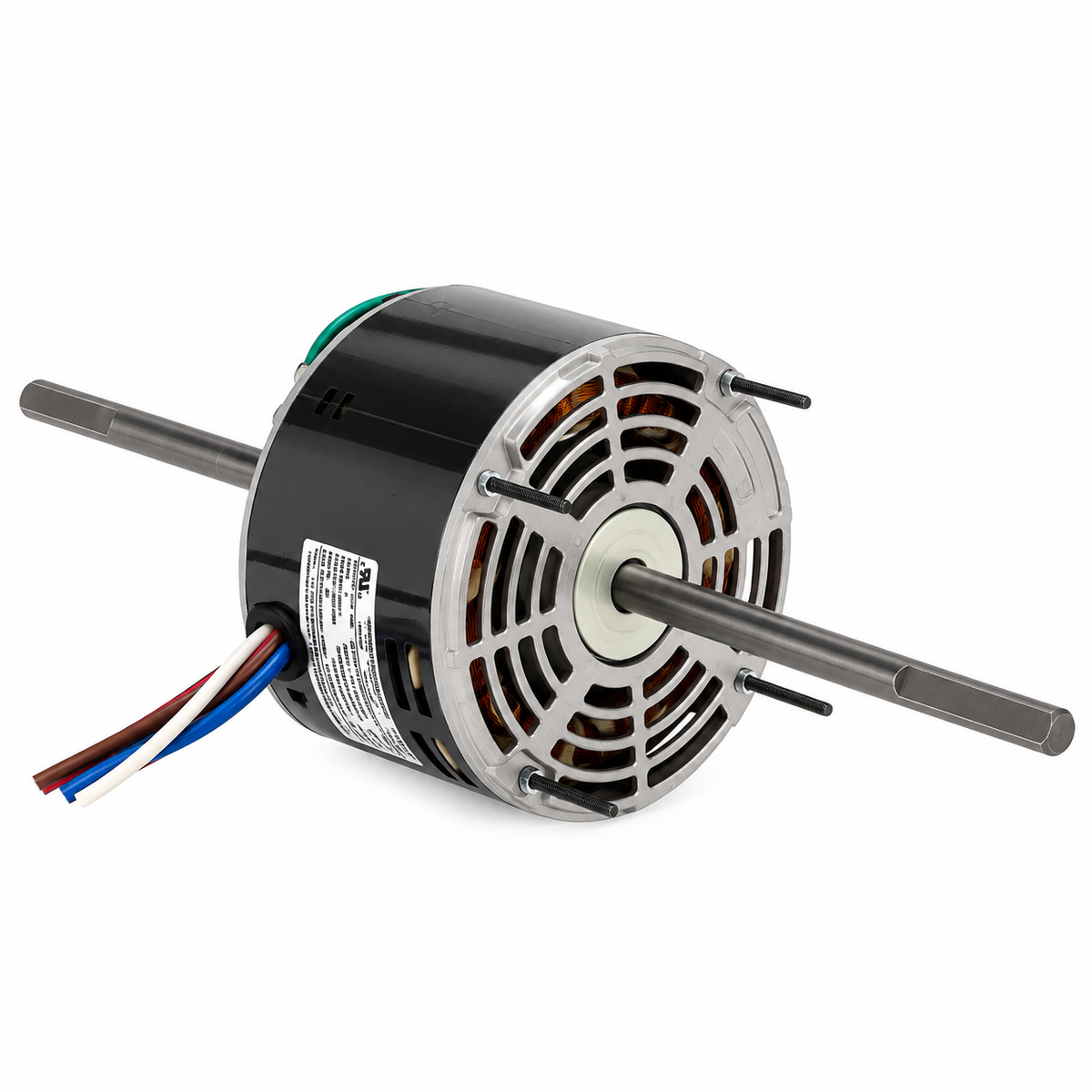

This open-air over (OAO) hub mount permanent split capacitor motor delivers 0.33 horsepower at 1075 RPM and is designed for multi-speed fan and blower applications. It features a compact frame and adjustable hub length for versatile installation.

KEY FEATURES

• Model: NAL1036

• Product Type: Electric Motors

• Horsepower: 1/3 Hp (0.3 kW)

• Voltage: 115 V

• Speed: 1075 RPM

• Frame: 48

• Enclosure: Open Drip Proof (ODP)

• Number of Speeds: 3

• Phase: 1

• Poles: 6

• Service Factor: 1

• Locked Rotor Amps: 14.85 A

• Full Load Amps: 7.15 A

• Locked Rotor Torque: 7.135 oz‑ft

• Breakdown Torque: 54.68 oz‑ft

• Insulation Class: B

• Ambient Rating: 40°C

• Shaft End Bearing: Ball

• Opposite End Bearing: Ball

• Mounting: Hub Mount (OAO) with Adjustable Hub Length Adapter

• Capacitor Voltage: 370 V

• Thermal Protection: Automatic Reset

The motor’s compact design with a hub-mount configuration and automatic thermal protection makes it well-suited for fan and blower systems requiring multi-speed control and reliable performance.
