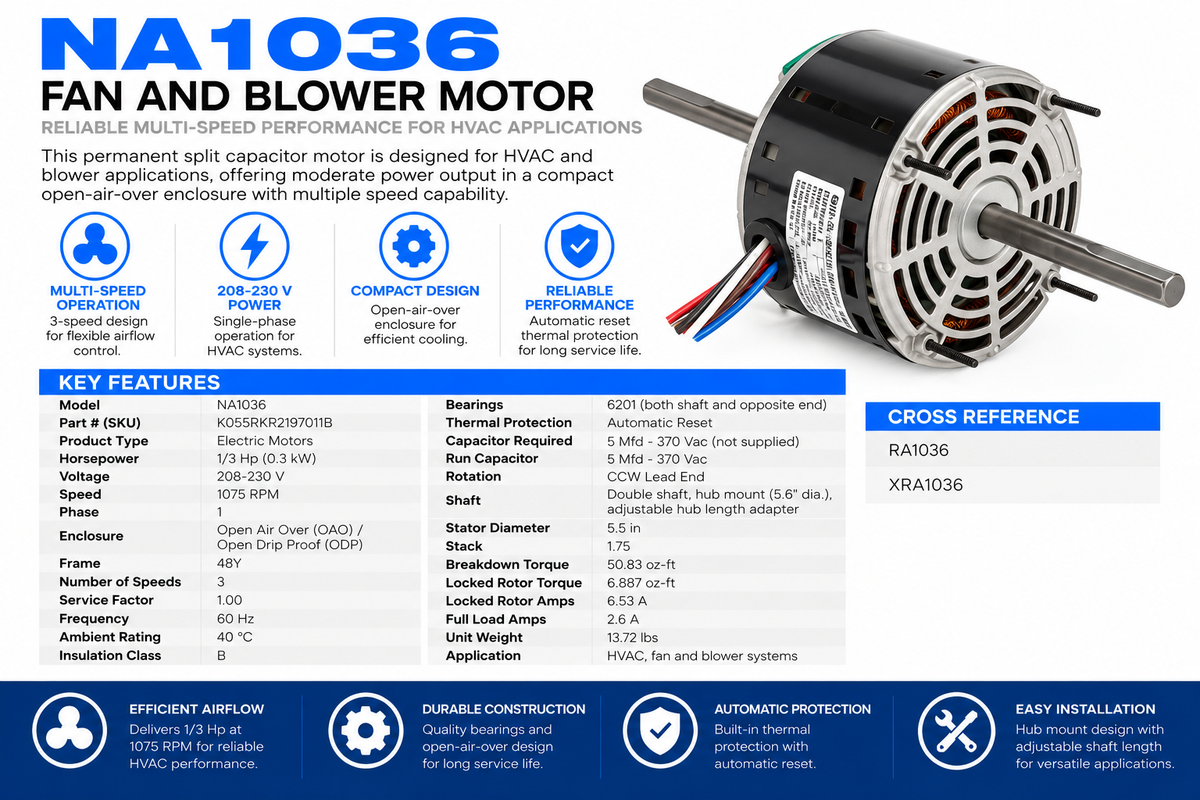

NA1036, 1/3Hp, 1075RPM, 208‑230V, 1Ph, 60Hz, ODP, Frame 48Y, K055RKR2197011B

This permanent split capacitor motor is designed for HVAC and blower applications, offering moderate power output in a compact open-air-over enclosure with multiple speed capability.

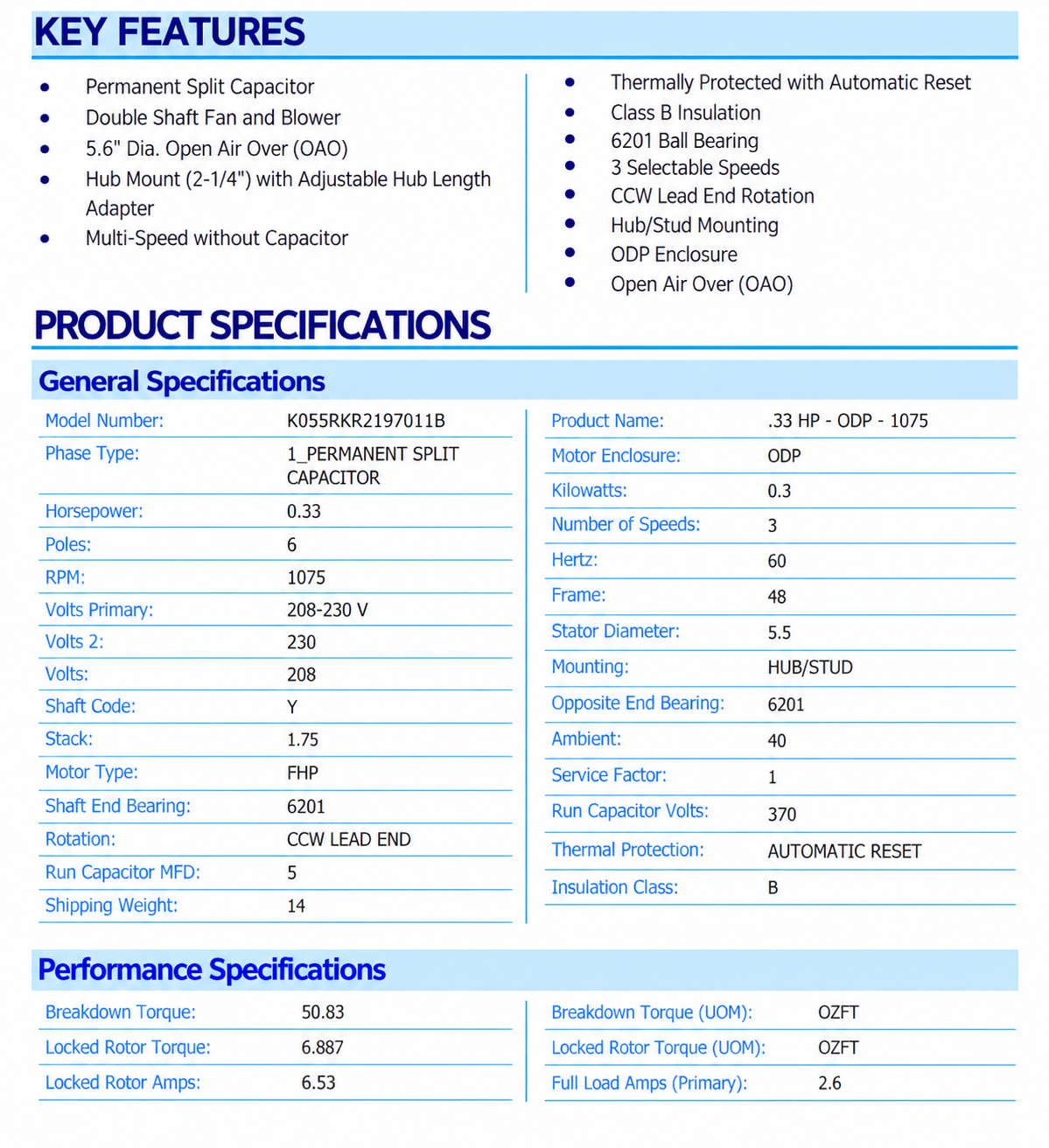

KEY FEATURES

• Model: NA1036

• Part# (SKU): K055RKR2197011B

• Product Type: Electric Motors

• Horsepower: 1/3Hp (0.3 kW)

• Voltage: 208‑230 V

• Speed: 1075 RPM

• Phase: 1

• Enclosure: Open Air Over (OAO) / Open Drip Proof (ODP)

• Frame: 48Y

• Number of Speeds: 3

• Service Factor: 1.00

• Frequency: 60 Hz

• Ambient Rating: 40°C

• Insulation Class: B

• Bearings: 6201 (both shaft and opposite end)

• Thermal Protection: Automatic Reset

• Capacitor Required: 5 Mfd‑370 Vac (not supplied)

• Rotation: CCW Lead End

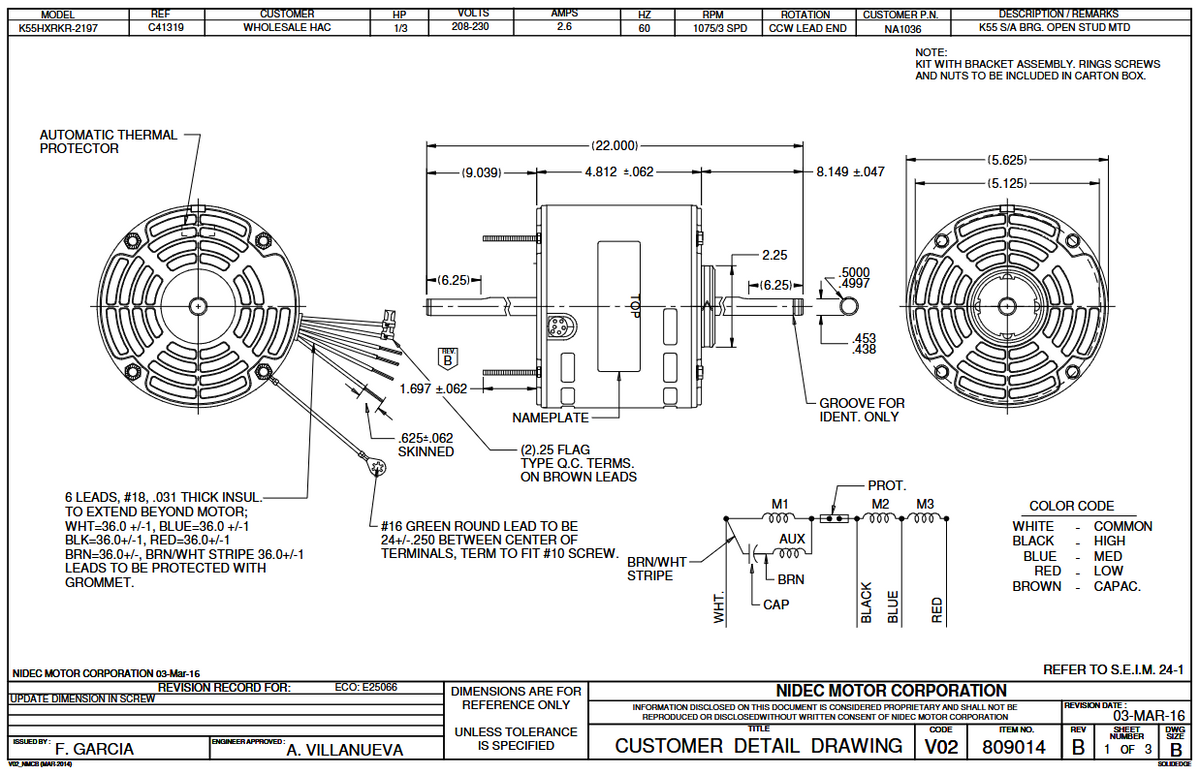

• Shaft: Double shaft, hub mount (5.6" dia.), adjustable hub length adapter

• Stator Diameter: 5.5 in

• Stack: 1.75

• Breakdown Torque: 50.83 oz‑ft

• Locked Rotor Torque: 6.887 oz‑ft

• Locked Rotor Amps: 6.53 A

• Full Load Amps: 2.6 A

• Run Capacitor: 5 Mfd‑370 Vac

• Unit Weight: 13.72 lbs

The motor’s compact design with multi‑speed capability and automatic reset protection makes it well‑suited for HVAC and blower systems where reliable, moderate power and flexibility are required.

CROSS REFERENCE

• RA1036 / XRA1036
