NA1024, 1/4Hp, 1625RPM, 208‑230V, 1Ph, 50/60Hz, ODP, Frame 48, K055RKW2203011B

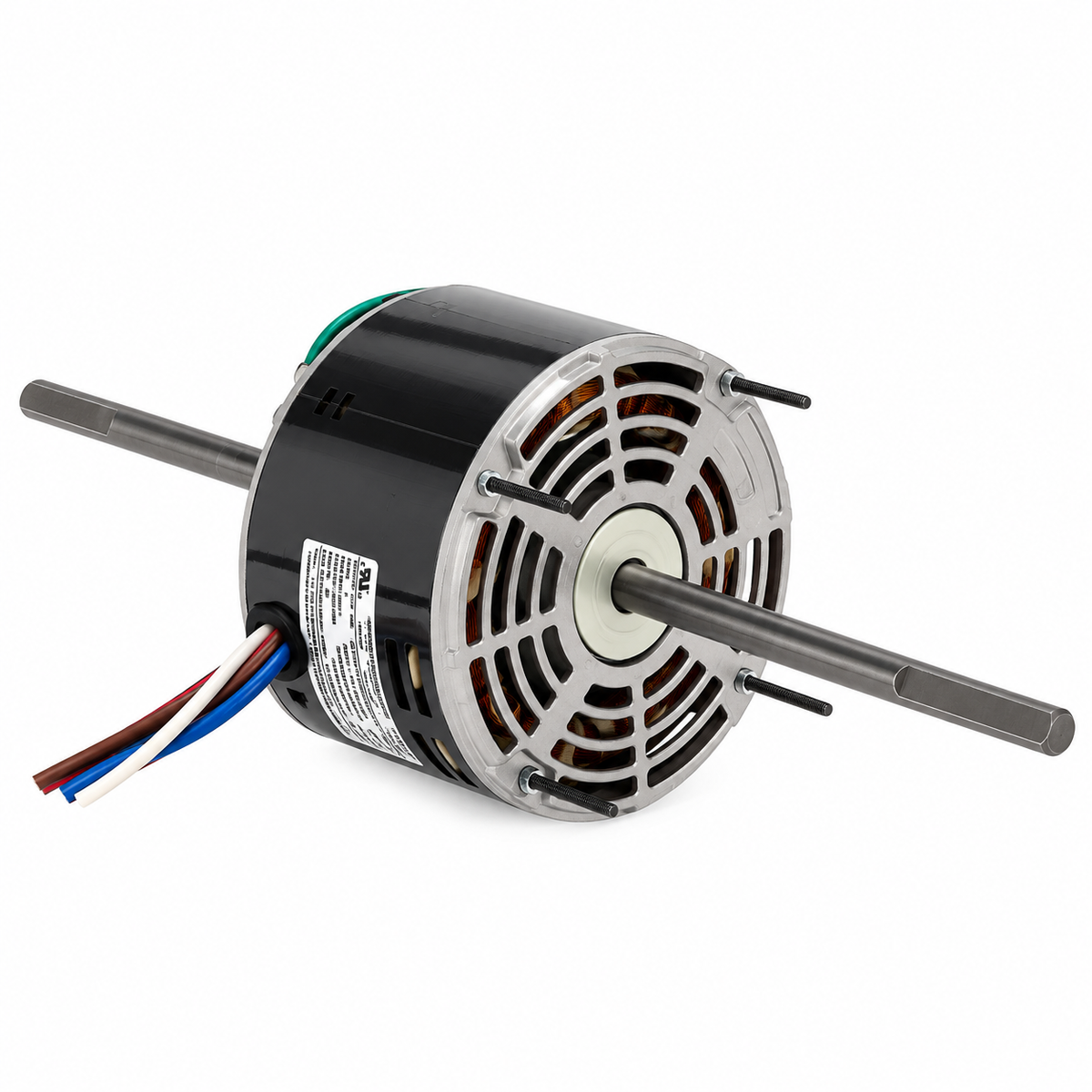

This single‑phase permanent split capacitor (PSC) blower motor delivers 0.25 Hp at 1625 RPM, offering multi‑speed operation and open air‑over (ODP) enclosure suitable for HVAC and air‑handling applications.

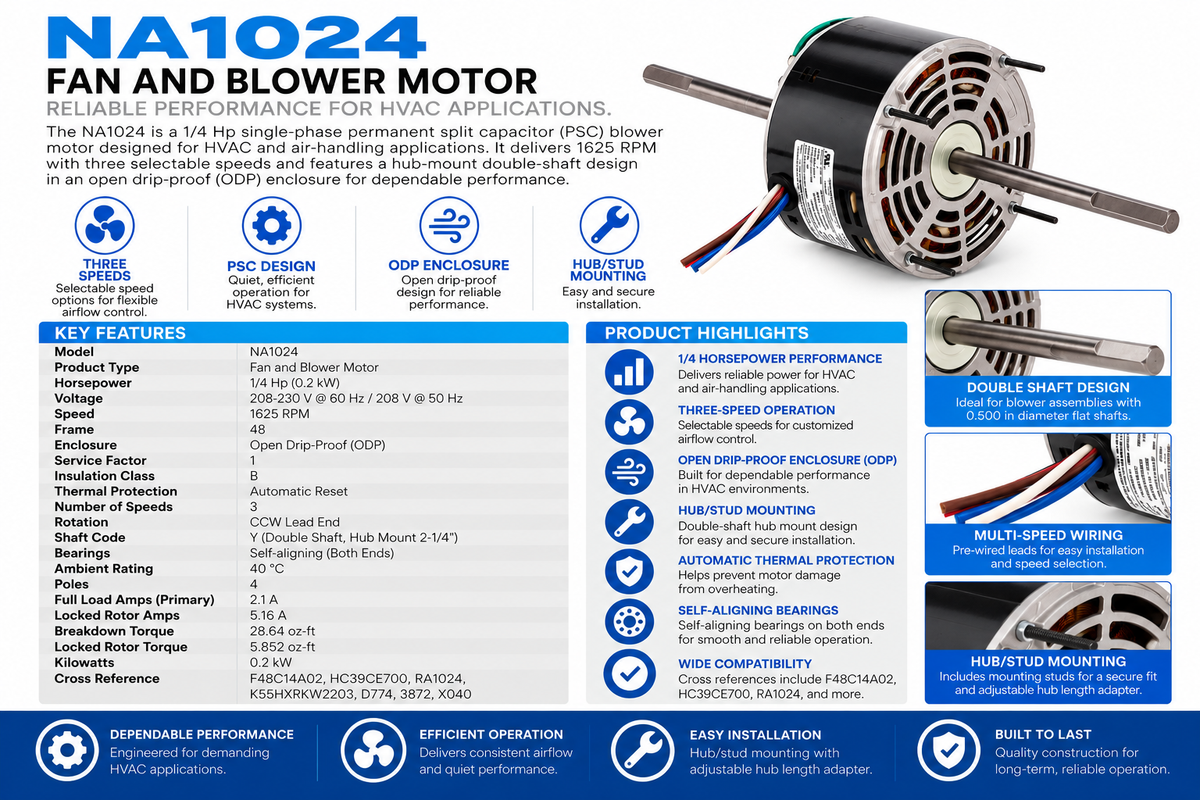

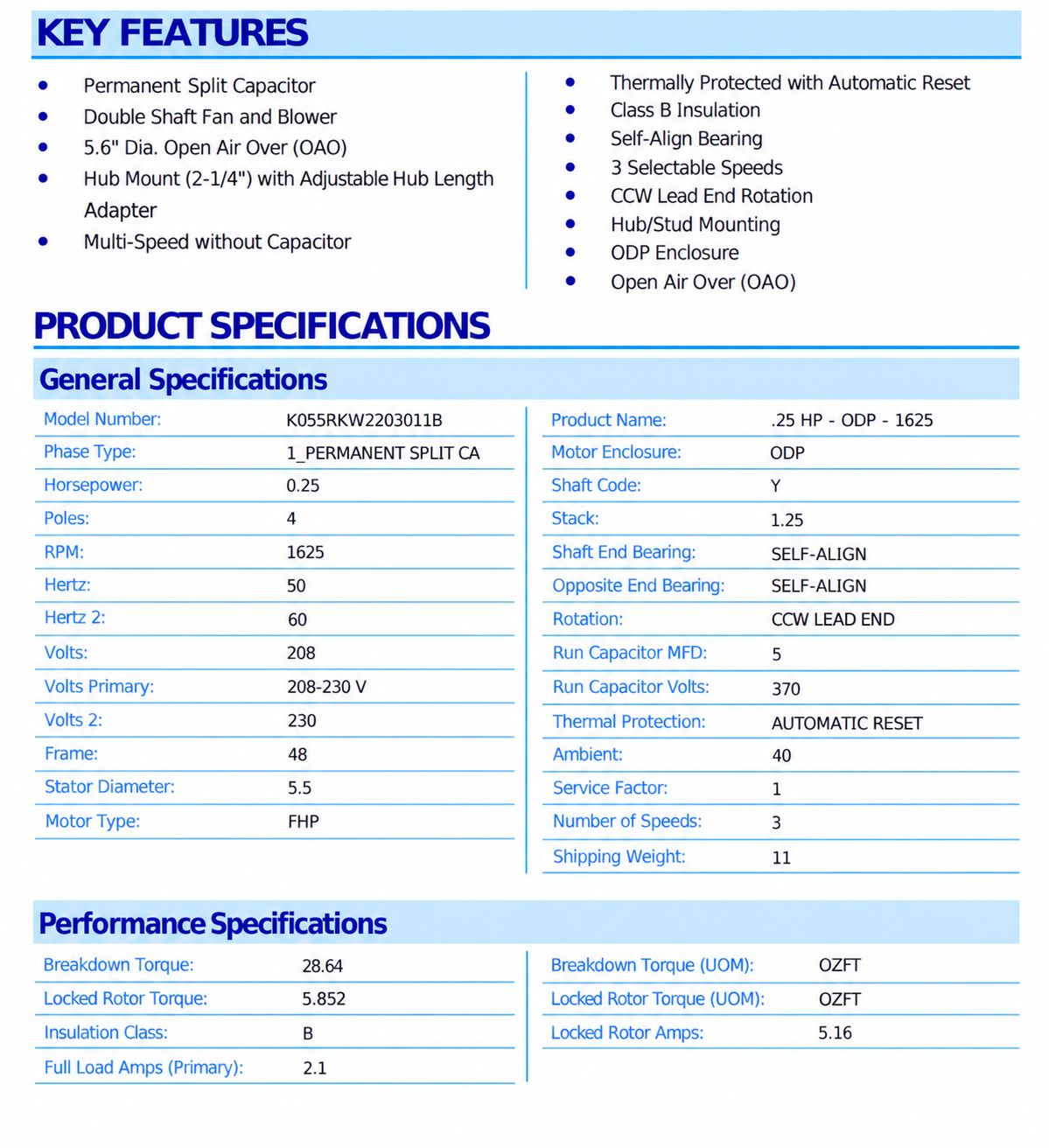

KEY FEATURES

• Model: NA1024

• Product Type: Fan and Blower Motor

• Horsepower: 1/4 Hp (0.2 kW)

• Voltage: 208‑230 V @ 60 Hz / 208 V @ 50 Hz

• Speed: 1625 RPM

• Frame: 48

• Enclosure: Open Drip‑Proof (ODP)

• Service Factor: 1

• Insulation Class: B

• Thermal Protection: Automatic Reset

• Number of Speeds: 3

• Rotation: CCW Lead End

• Ambient Rating: 40 °C

• Shaft Code: Y (double shaft, hub mount 2‑1/4")

• Bearings: Self‑aligning (both ends)

• Poles: 4

• Locked Rotor Amps: 5.16 A

• Full Load Amps (Primary): 2.1 A

• Breakdown Torque: 28.64 oz‑ft

• Locked Rotor Torque: 5.852 oz‑ft

• Kilowatts: 0.2 kW

CROSS REFERENCE

• F48C14A02

• HC39CE700

• RA1024

• K55HXRKW2203

• D774

• 3872

• X040
