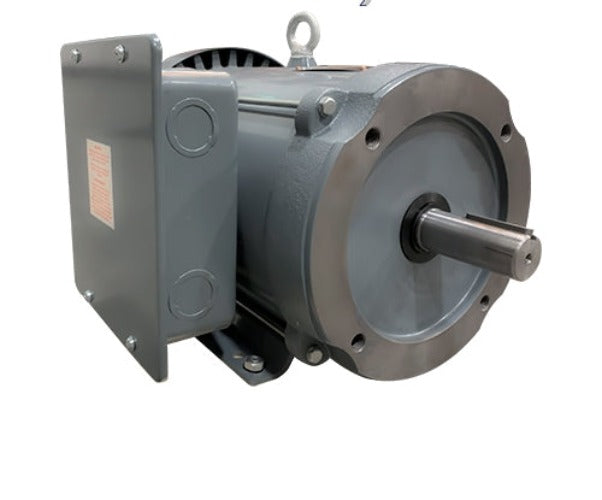

MTR-204FDTCH, Maxmotion, 2 Hp, 1800 Rpm, 115/230V, Fr:145TC, Tefc,1Ph,

MTR-204FDTCH, Maxmotion, Replace Marathon Z128, 145TBFR5341,

• 2 Hp,
• 1800 Rpm,
• 115/230 Volts,

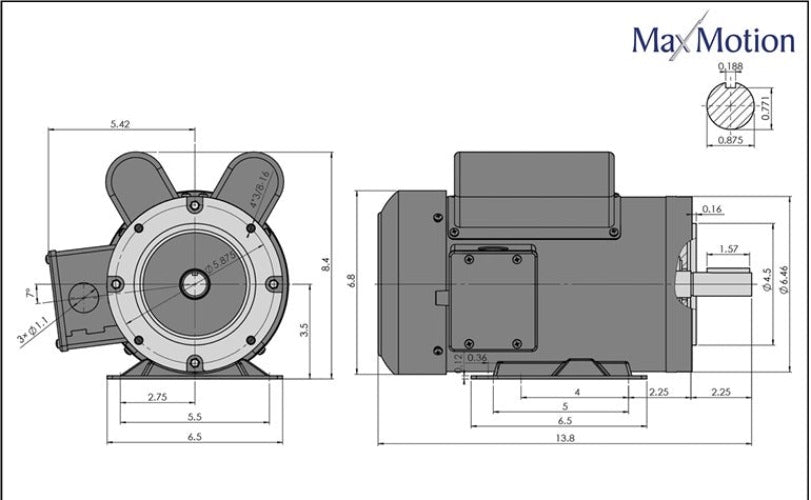

• Frame 145TC, (7/8'')
• Enclosure Tefc,
• 1 Ph,
• High torque
• General-purpose

• Double-shielded bearings extend the service life of the motor.
• EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
• Shaft flingers protect bearings from damage caused by dirt and rain.
• Condensation drains allow the motor to expel and drain built-up moisture.
• Design - L, suitable for ambient temperature of 40°C, altitude 1000M

•  Agency Listings and Standard - NEMA, CSAus and CSA Certified, RoHS Compliant
•  Service Factor - 1.15 Electrical Supply - 115/208-230VAC, 60Hz
• Mounting - Universal mounting by feet or C flange.
• Windings - VPI with additional dip and bake, with numbered and color coded wire leads.
• Insulation - Class F insulation with B temperature rise.
• Protection - Manually resettable thermal overload.
• Voltage and Frequency Variation - ±10% Bearings - Permanently Lubricated High quality Double Shielded Ball Bearings with oversized DE bearings. Lithium based grease operating temperature range - 25° trough 175°C. Earthing
• Terminals - Grounding screw in conduit box
• Earthing Terminals - Grounding screw in conduit box
•  Enclosure Protection - IP55
•  Conduit Box - Rotatable 180°, with ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.
• Nameplate - Stainless Steel with etched details. • Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.
