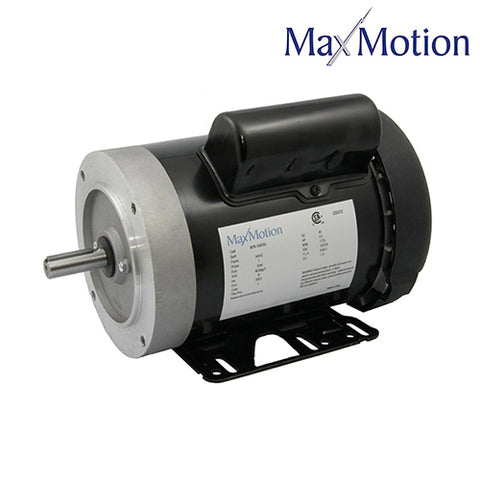

MTR-202FDCH, Maxmotion, 2Hp, 3600 RPM, 115-208/230V,FR: 56HC,TEFC

MAXMOTION

$468.91

MTR-202FDCH, Maxmotion, Replace Marathon G392, G1392,

5KCR49TN2139U, 056B34F5323,

Output HP :	2 HP	Output KW :	1.49 kW
Frequency :	60 Hz	Voltage :	115/208-230 V
Current :	18.0/10.0-9.0 A	Speed :	3450 RPM
Service Factor :	1.15	Phase :	1
Duty :	CONTINUOUS	Insulation Class :	B
Design Code :	N	KVA Code :	H
Frame :	56HC	Enclosure :	TEFC
Overload Protector :	MANUAL	Ambient Temperature :	40 °C
Drive End Bearing Size :	6203	Opp Drive End Bearing Size :	6203
UL :	Recognized ( Not Protector)	CSA :	Y
IP Code :	43

Technical Specifications

Electrical Type :	CAP START CAP RUN	Starting Method :	ACROSS THE LINE
Poles :	2	Rotation :	SELECTIVE CCW
Mounting :	RIGID	Motor Orientation :	HORIZONTAL
Drive End Bearing :	BALL	Opp Drive End Bearing :	BALL
Frame Material :	ROLLED STEEL	Shaft Type :	T
Overall Length :	13.32 in	Shaft Diameter :	.63 in
Shaft Extension :	1.88 in	Assembly/Box Mounting :	F1 ONLY
Weight :	40.00 LB
