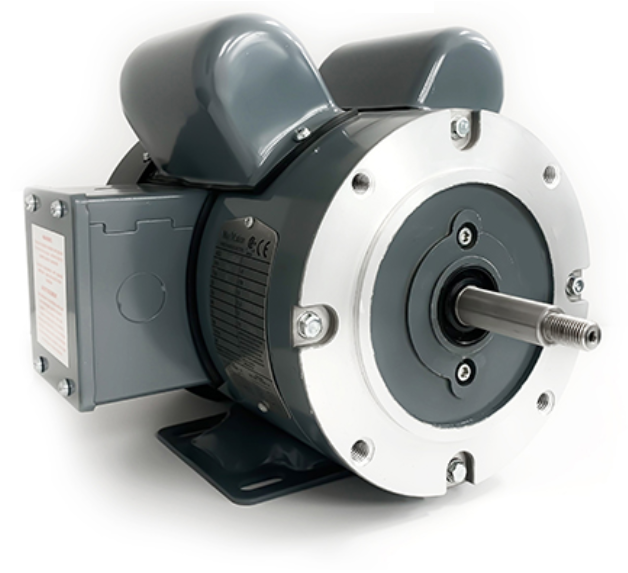

MTR-122FDJH, 1/2Hp, 3520 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56J, IP 55

MTR-122FDJH, 1/2Hp, 3520 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56J, IP 55

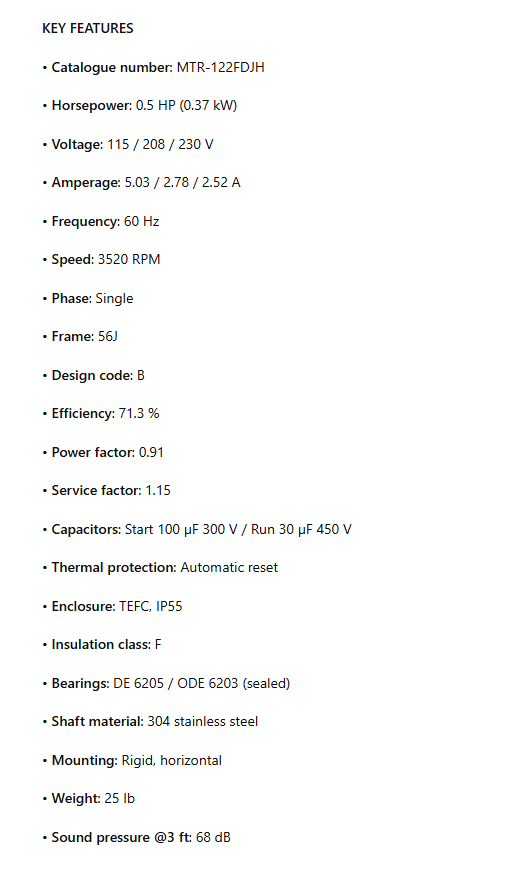

KEY FEATURES

• Catalogue number: MTR-122FDJH

• Horsepower: 0.5 HP (0.37 kW)

• Voltage: 115 / 208 / 230 V

• Amperage: 5.03 / 2.78 / 2.52 A

• Frequency: 60 Hz

• Speed: 3520 RPM

• Phase: Single

• Frame: 56J

• Design code: B

• Efficiency: 71.3 %

• Power factor: 0.91

• Service factor: 1.15

• Capacitors: Start 100 µF 300 V / Run 30 µF 450 V

• Thermal protection: Automatic reset

• Enclosure: TEFC, IP55

• Insulation class: F

• Bearings: DE 6205 / ODE 6203 (sealed)

• Shaft material: 304 stainless steel

• Mounting: Rigid, horizontal

• Weight: 25 lb

• Sound pressure @3 ft: 68 dB
