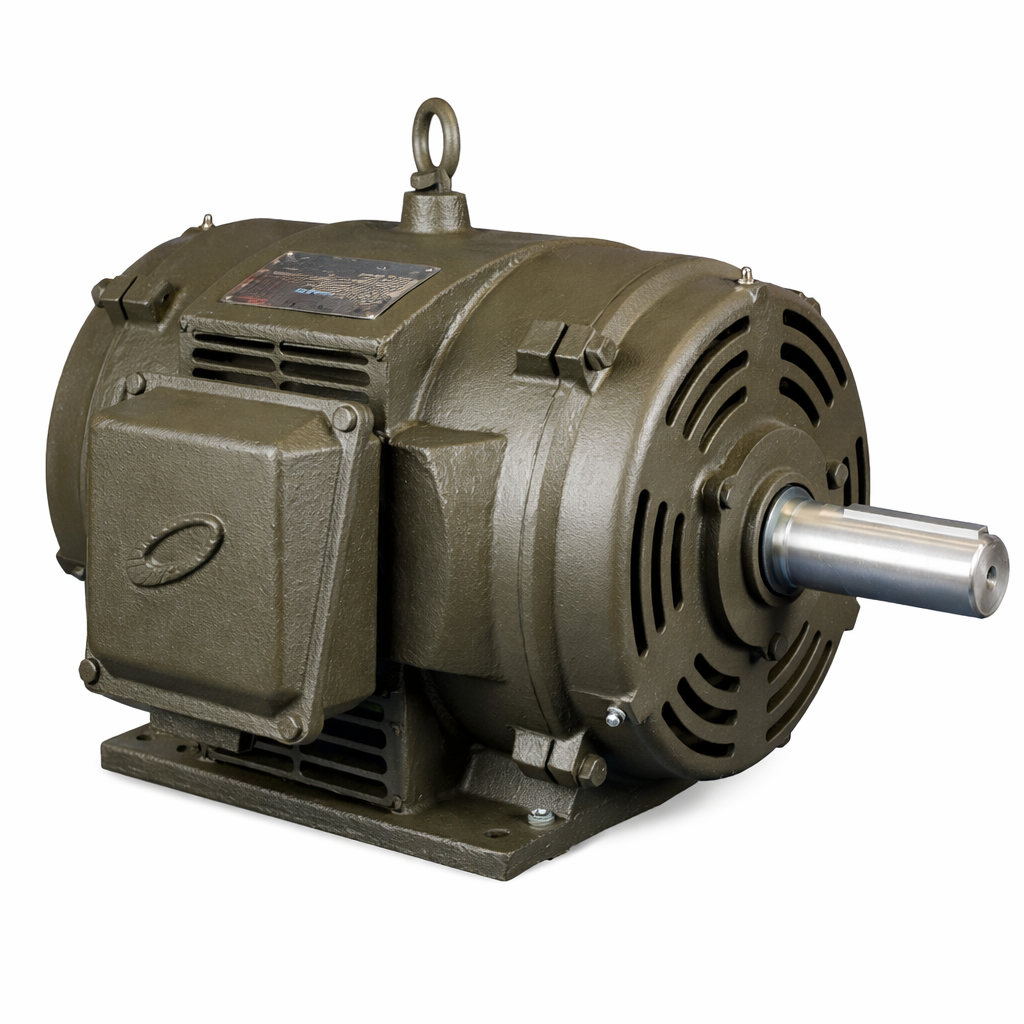

MQOP-67, 60Hp, 1780 RPM, 208-230/460V, 3Ph, 60-50Hz, ODP, Frame 364/5T, IP23, CLASS F

MQOP-67, 60Hp, 1780 RPM, 208-230/460V, 3Ph, 60-50Hz, ODP, Frame 364/5T, IP23, CLASS F

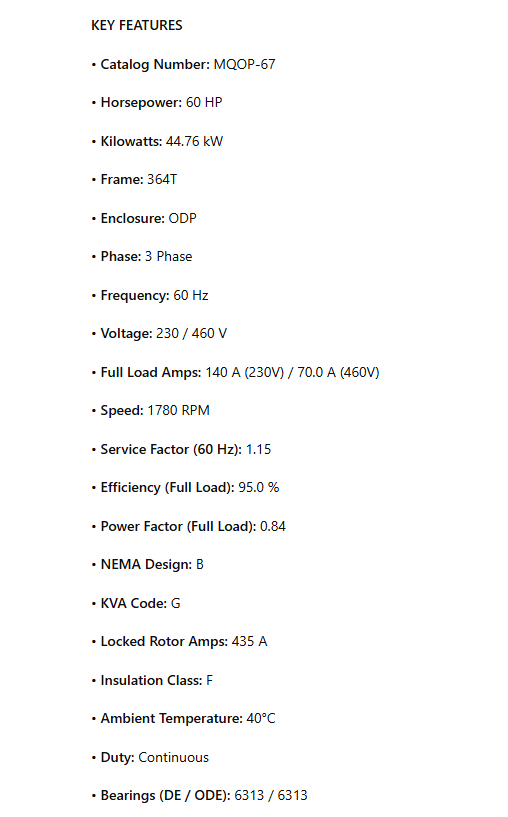

KEY FEATURES

• Catalog Number: MQOP-67

• Horsepower: 60 HP

• Kilowatts: 44.76 kW

• Frame: 364T

• Enclosure: ODP

• Phase: 3 Phase

• Frequency: 60 Hz

• Voltage: 230 / 460 V

• Full Load Amps: 140 A (230V) / 70.0 A (460V)

• Speed: 1780 RPM

• Service Factor (60 Hz): 1.15

• Efficiency (Full Load): 95.0 %

• Power Factor (Full Load): 0.84

• NEMA Design: B

• KVA Code: G

• Locked Rotor Amps: 435 A

• Insulation Class: F

• Ambient Temperature: 40°C

• Duty: Continuous

• Bearings (DE / ODE): 6313 / 6313
