MPW18-3-U010, Manual Motor Protector, 18A, 6.3-10A Overload Setting Range, 3-Pole, 690V, 50/60Hz, On/Off Pushbutton, Screw Terminal, IP20

 MPW18-3-U010,  Manual Motor Protector, 18A, 6.3-10A Overload Setting Range, 3-Pole, 690V, 50/60Hz, On/Off Pushbutton, Screw Terminal, IP20

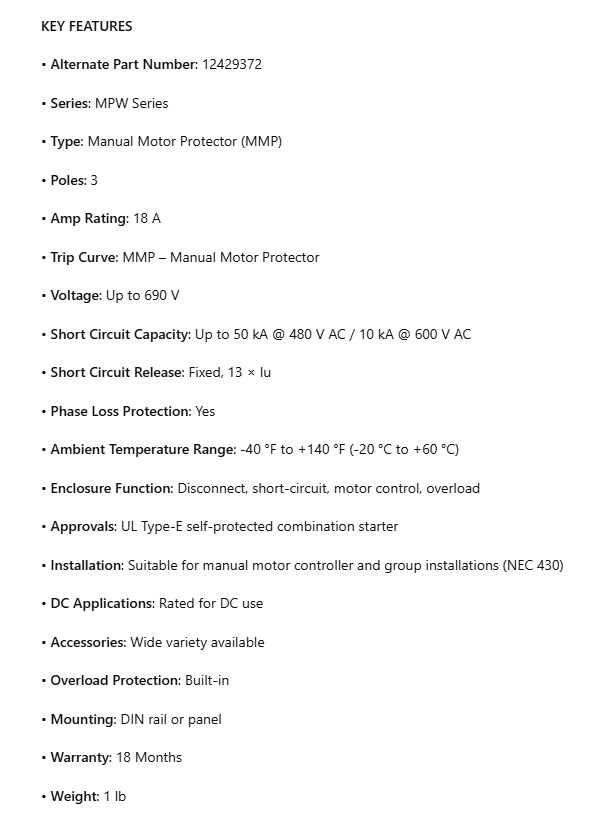

KEY FEATURES

• Alternate Part Number: 12429372

• Series: MPW Series

• Type: Manual Motor Protector (MMP)

• Poles: 3

• Amp Rating: 18 A

• Trip Curve: MMP – Manual Motor Protector

• Voltage: Up to 690 V

• Short Circuit Capacity: Up to 50 kA @ 480 V AC / 10 kA @ 600 V AC

• Short Circuit Release: Fixed, 13 × lu

• Phase Loss Protection: Yes

• Ambient Temperature Range: -40 °F to +140 °F (-20 °C to +60 °C)

• Enclosure Function: Disconnect, short-circuit, motor control, overload

• Approvals: UL Type-E self-protected combination starter

• Installation: Suitable for manual motor controller and group installations (NEC 430)

• DC Applications: Rated for DC use

• Accessories: Wide variety available

• Overload Protection: Built-in

• Mounting: DIN rail or panel

• Warranty: 18 Months

• Weight: 1 lb

IP66 Enclosure option available ( PE66GN )

The WEG MPW Series Manual Motor Protectors provide a very compact solution for operation and protection in motor control applications. The NEC requires four functions to be considered a combination motor starter: Motor Disconnect, Branch Circuit Protection, Motor Controller and Motor Overload Protection. The WEG MPW meets all of these requirements, and the requirements of UL for Self-Protected Motor Controllers to be used in Type-E & F applications. With worldwide approvals the WEG MPW can be used in a variety of applications all over the world.
